Schneider Electric EHO110-800 humidity sensor 4-20mA / 0-5 VDC / 0-10 VDC

Product Description

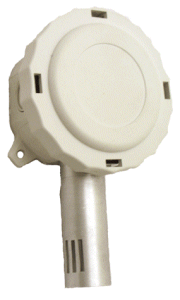

Schneider Electric EHO110-800 is a relative humidity and temperature combo sensor designed for outdoor use. It offers flexibility with field selectable output signals and provides reliable measurements. The sensor ensures accuracy within plus or minus 2%. This unit is ideal for HVAC applications, integrating well into various systems to maintain environmental control.

• Field calibration capability
• Operates within a range of outputs including 4-20mA
• Humidity measurement drift is less than 2% over five years

Product Highlights

This sensor is suited for outdoor reference applications. It includes a temperature probe and is equipped with a 10 kOhm thermistor for accurate temperature readings.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Item Signal Code: 8

Technical Specifications

• MPN: EHO110-800
• Measurement Range: humidity and temperature
• Humidity Measurement Resolution: 0.1 % RH
• Probe Length: 68 mm

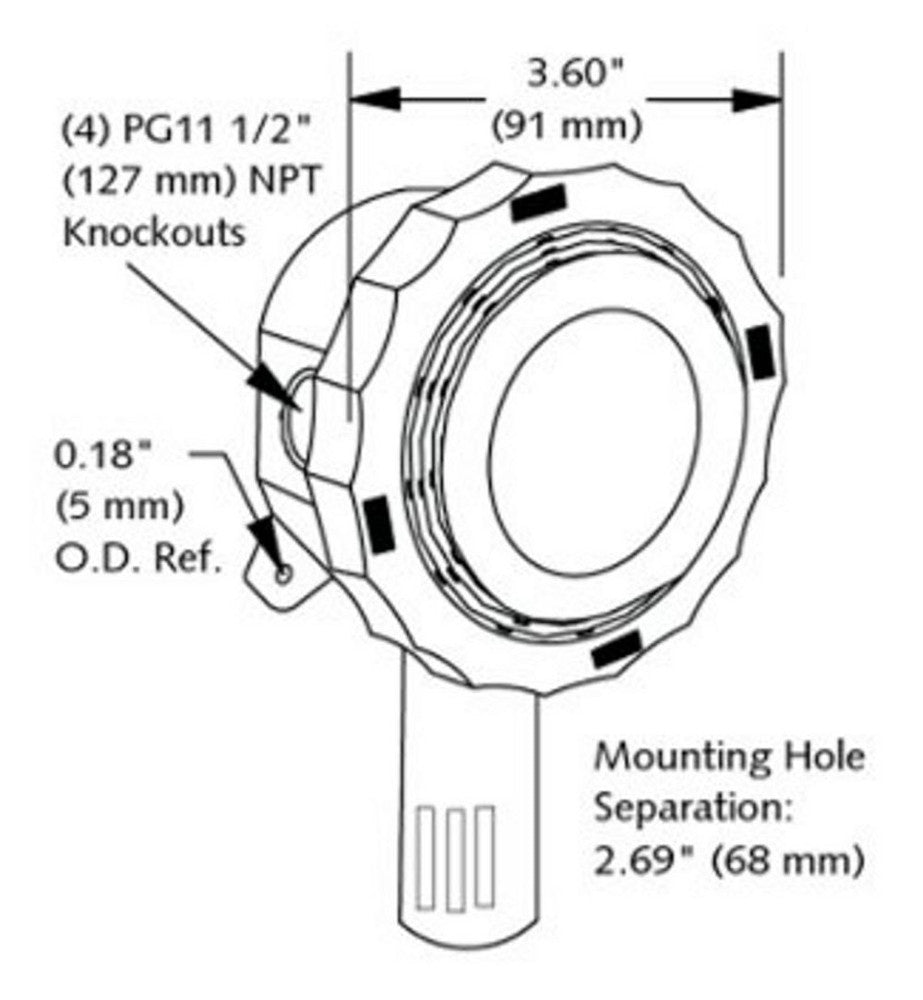

• Dimensions: 91 mm x 91 mm x 57 mm
• Operating Power Supply: 15 to 36 V DC or 22 to 26 V AC
