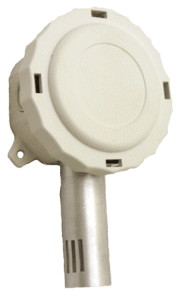

Schneider Electric EHO110-200 Humidity and Temperature Sensor

Product Description

The Schneider Electric EHO110-200 is a relative humidity and temperature sensor designed for outdoor applications. This device offers single-point field calibration and field-selectable output signals. It provides accurate measurements with a plus or minus two percent accuracy and low drift characteristics, making it suitable for HVAC systems and environmental monitoring.

• Field selectable output signals: 4-20 mA, 0-5 VDC, 0-10 VDC
• Humidity measurement resolution: 0.1% RH
• 10K Ohm T2 thermistor for temperature sensing

Product Highlights

Ideal for outdoor reference applications, this sensor features a robust design for reliable performance in varying environmental conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: EHO110-200

Technical Specifications

• Device Application: Outdoor reference
• Humidity Measurement Drift: Less than 2% for five years
• Probe Length: 68 mm
• Height: 91 mm
• Width: 91 mm
• Supply Voltage: 15-36 V DC or 22-26 V AC
• Output Type: Analog and resistive output
