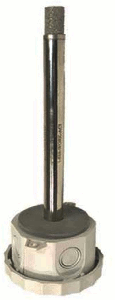

Schneider Electric EHD110-800 RH and Temp Sensor, Duct, 2% Accuracy

Product Description

The Schneider Electric EHD110-800 is a relative humidity and temperature sensor designed for duct applications. This sensor provides precise measurements with a two percent accuracy. It offers field-selectable outputs for flexible integration into HVAC systems. With a resistance of ten thousand Ohms and an eleven thousand Ohm shunt, it is suitable for various settings.

• Field-selectable outputs: 4-20 mA, 0-5 VDC, 0-10 VDC
• Compatible with duct-mounted installations
• Designed for use in North America

Product Highlights

The EHD110-800 is essential for monitoring environmental conditions in HVAC systems. It is ideal for applications that require accurate measurement and reporting of humidity and temperature levels.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: EHD110-800

Technical Specifications

• Measurement Type: Humidity, Temperature
• Accuracy: 2% RH
• Sensor Type: 10 kOhm thermistor with 11 kOhm shunt
• Housing Color: Cloud white

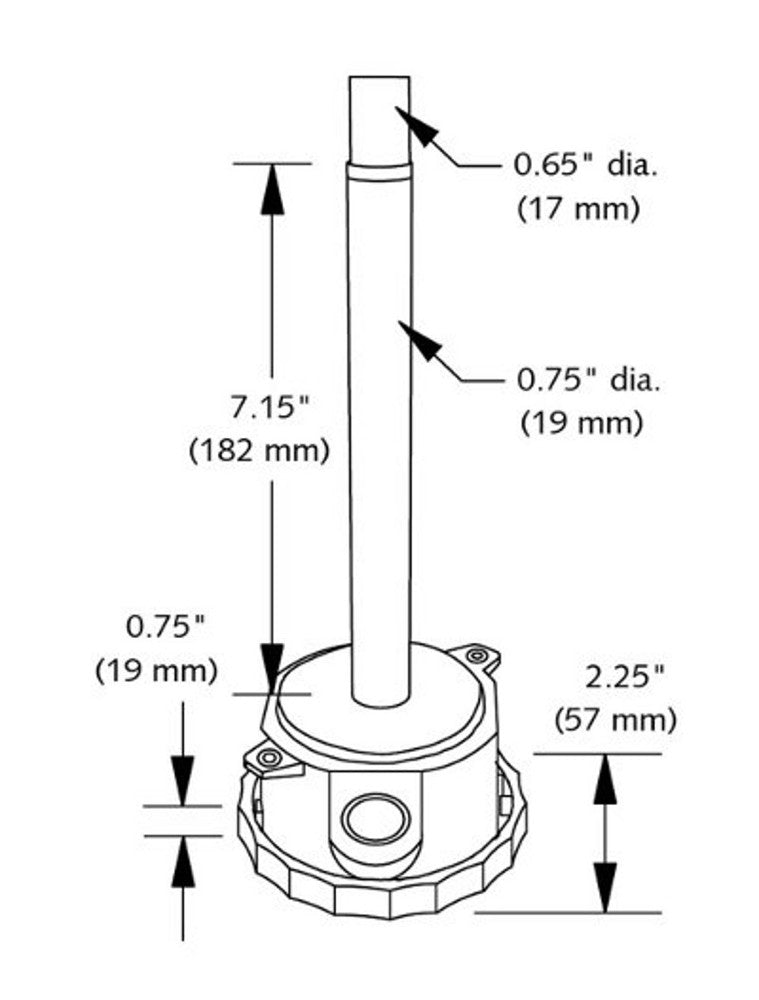

• Probe Length: 199 mm
• Dimensions: 91 mm x 91 mm x 57 mm
