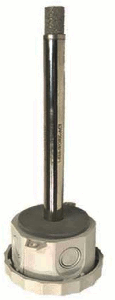

Schneider Electric EHD110-500 EH Series Room/Duct Humidity and Temperature Sensor

Product Description

The Schneider Electric EHD110-500 is an EH Series room and duct humidity and temperature sensor. It features a two percent accuracy and offers field-selectable outputs. This sensor utilizes a ten thousand ohm T3 thermistor and is compatible with Continuum systems.

• Humidity and temperature measurement
• Field selectable outputs: 4-20mA, 0-5 VDC, 0-10 VDC
• Easy installation in duct or room environments

Product Highlights

The EHD110-500 is ideal for monitoring and managing indoor air quality in a variety of settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Product Type: sensor
• Accuracy: 2%
• Measurement Type: humidity and temperature
• Output Type: analog, resistive
• Output Voltage: 15...36 V DC, 22...26 V AC

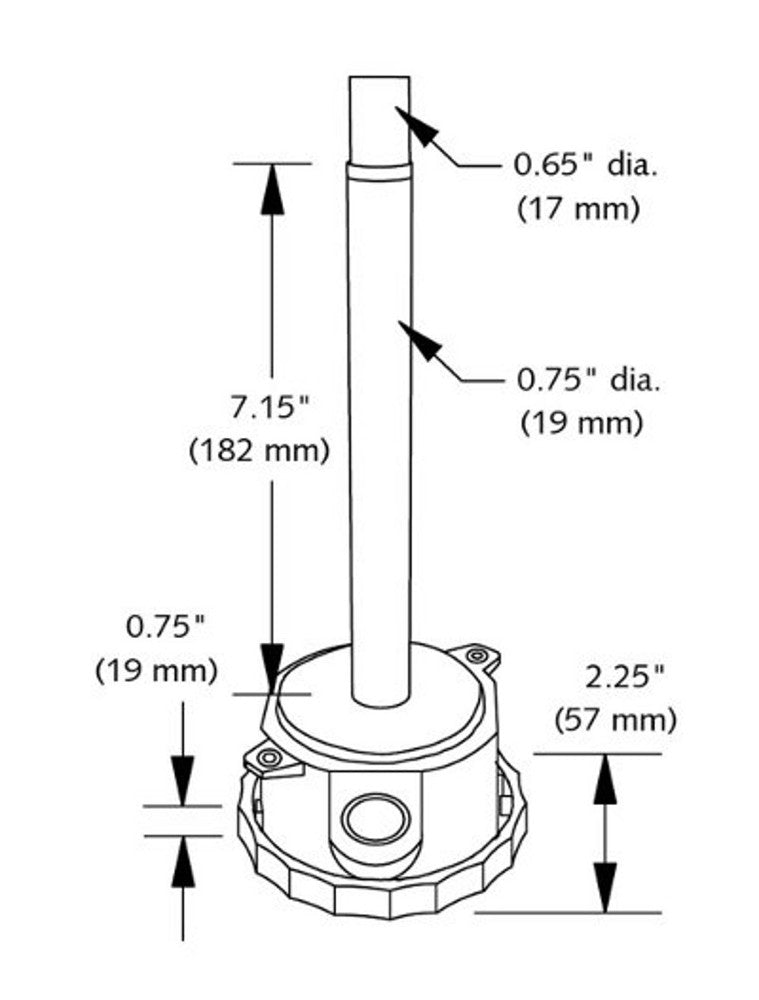

• Probe Length: 199 mm
• Dimensions: 91 mm x 91 mm x 57 mm
• Humidity Measurement Resolution: 0.1 % RH
• Time Constant: specific to application
• Humidity Measurement Drift: less than 2% for five years
