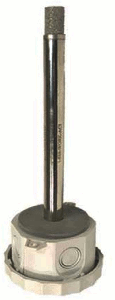

Schneider Electric EHD110-100 RH and Temp Sensor Duct 2% Accuracy

Product Description

Schneider Electric EHD110-100 is a relative humidity and temperature combo sensor designed for duct installation. It features a two percent accuracy level and field selectable outputs. This sensor operates with a 1.8K ohm thermistor. It is suitable for various HVAC applications and complies with TAC standards.

• Relative humidity measurement range of 0-95% RH
• Humidity measurement drift of less than 2% for five years
• Compatible with multiple output types: 4-20mA, 0-5 VDC, 0-10 VDC

Product Highlights

Ideal for precise monitoring of humidity and temperature in plant room installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Device Application: Duct

Technical Specifications

• MPN: EHD110-100
• Measurement Type: Humidity, Temperature
• Thermistor: 1.8K ohm
• Output Signals: 4-20mA, 0-5V DC, 0-10V DC
• Installation Site: Duct
• Operating Voltage: 15...36V DC, 22...26V AC

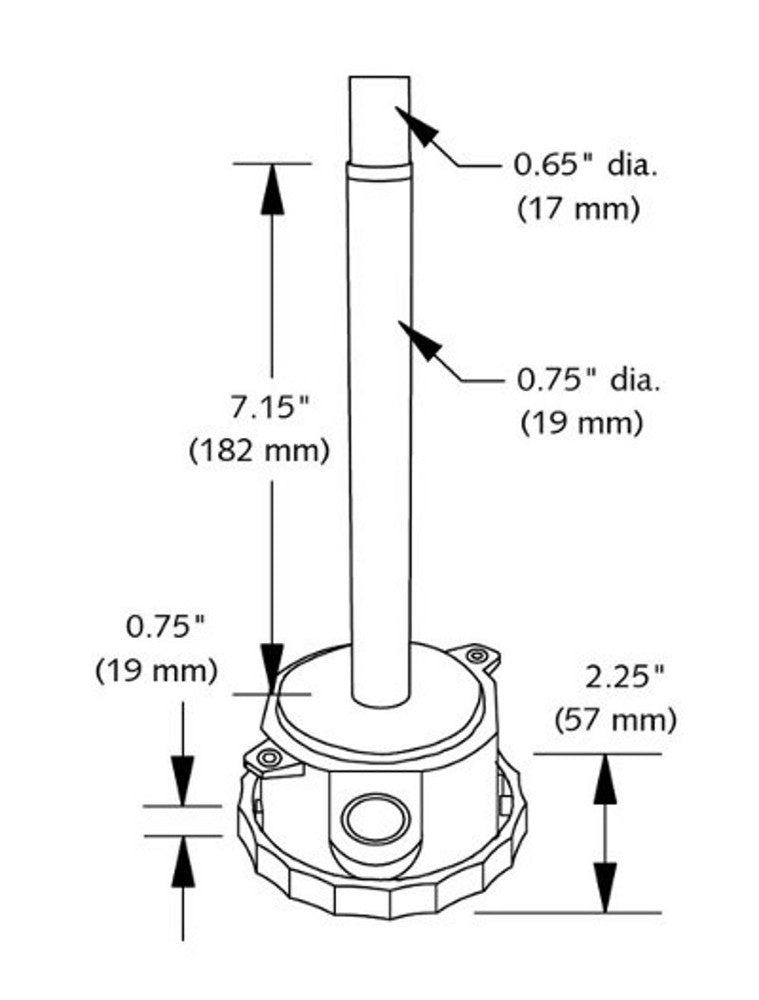

• Dimensions: 91 mm x 91 mm x 57 mm
• Relative Humidity Range: 0-95% RH (non-condensing)
