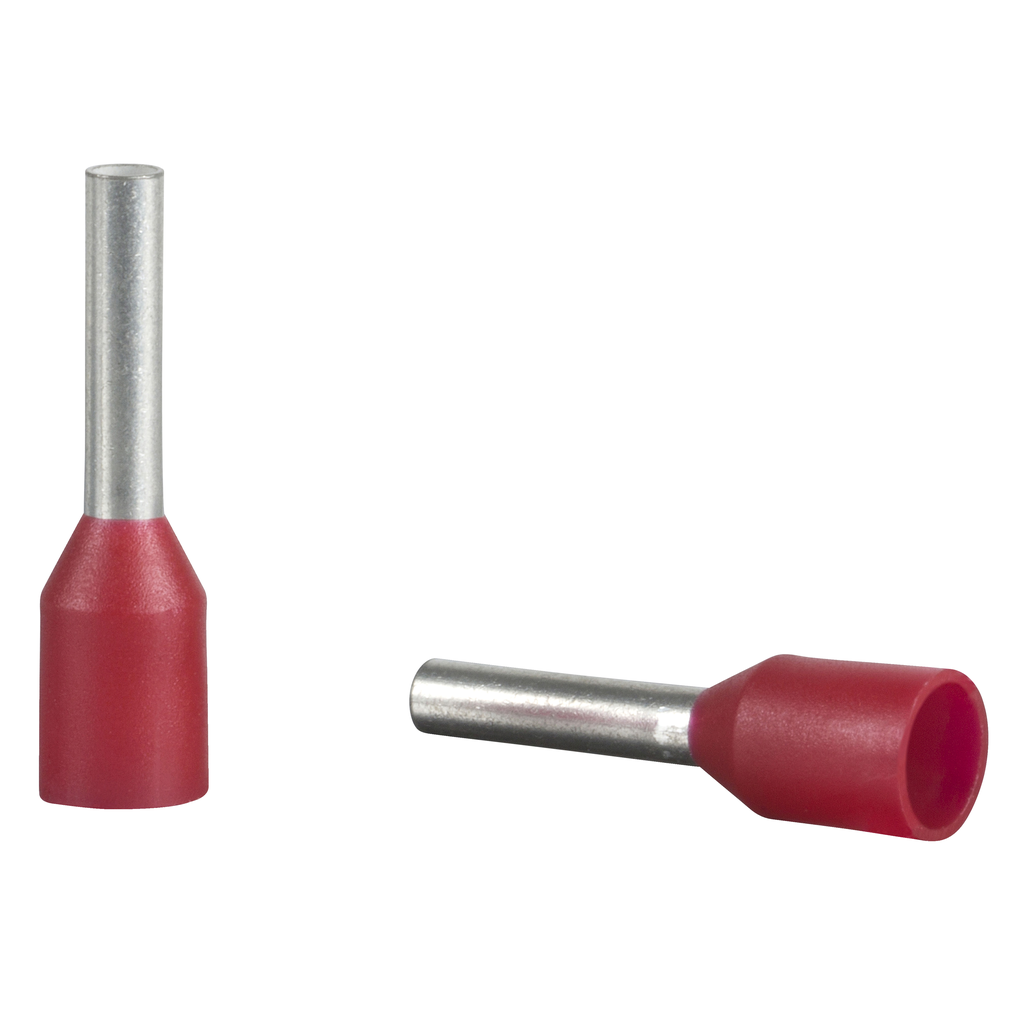

Schneider Electric DZ5CE010 Cable Ends Linergy 1mm Medium Size 10 Sets of 100

Product Description

The Schneider Electric DZ5CE010 cable ends are designed for use with single conductors that have a cross section of 1 millimeter. This insulated cable end is medium-sized and does not include a marker tag holder. The product is packaged in strings of bags, with each set containing ten bags of one hundred pieces.

• Operating temperature range from -20 to 105 degrees Celsius
• Compliant with NF C 63-023 standard
• UL certified and RoHS/REACH compliant

Product Highlights

The DZ5CE010 cable end offers reliable electrical connections for various applications. It is suitable for environments requiring durable, insulated connections.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: DZ5CE010
• Color: Red
• Wire Size: AWG 18
• Material: Plastic
• Length: 14 millimeters
• Weight: 0.22 pounds
• Standard: NF C 63-023
• Ambient Temperature: -20 to 105 degrees Celsius
• Country of Origin: Germany
