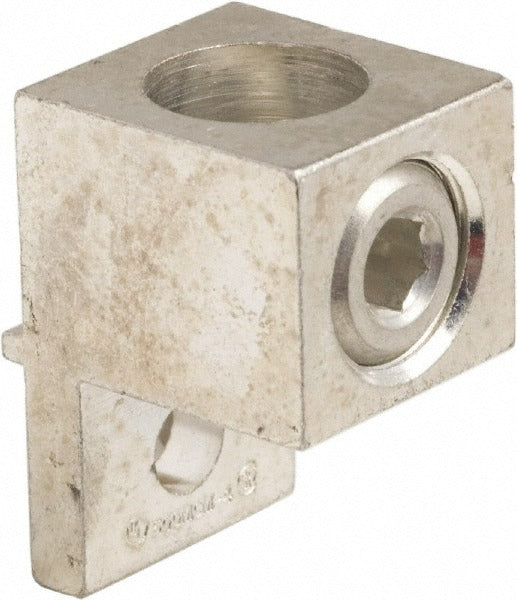

Schneider Electric DZ2FJ1 Contactor Lug CR1F400 LC1F400

Product Description

The SCHNEIDER ELECTRIC DZ2FJ1 is a contactor lug accessory designed to provide secure, reliable electrical terminations on compatible contactor assemblies. This lug serves as a conductor connection point, allowing field technicians to land supply or load wires directly onto the contactor body. It is a replacement-grade component used in industrial and commercial electrical distribution panels, motor control centers, and similar power control applications. Licensed electricians and industrial maintenance technicians are the primary installers of this part. Its compact form factor and precise fitment ensure it integrates cleanly with the designated contactor frames without modification.

This lug is intended for use in commercial and industrial electrical installations where the CR1F400 or LC1F400 contactor series is deployed. Typical applications include motor starters, feeder circuits, and switchgear assemblies that require properly rated termination hardware. It is suited for new installations as well as maintenance and repair work on existing contactor assemblies where the original lug has been damaged or lost.

Key Features

• OEM-style replacement lug for direct fitment on CR1F400 and LC1F400 contactors
• Compact dimensions of 2.3 inches length, 1.7 inches width, and 1.4 inches height
• Lightweight construction at 0.23 pounds for easy handling during installation
• Sold individually, allowing single-unit replacement without excess inventory
• Designed as a contactor accessory for secure conductor termination in power control assemblies

Compatibility

Designed for use with the CR1F400 and LC1F400 contactor series as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the contactor assembly completely before removing or installing any lug hardware. Use appropriately rated torque tools to secure conductors per the contactor manufacturer guidelines. Inspect adjacent terminals and wiring insulation for damage before returning the assembly to service.
