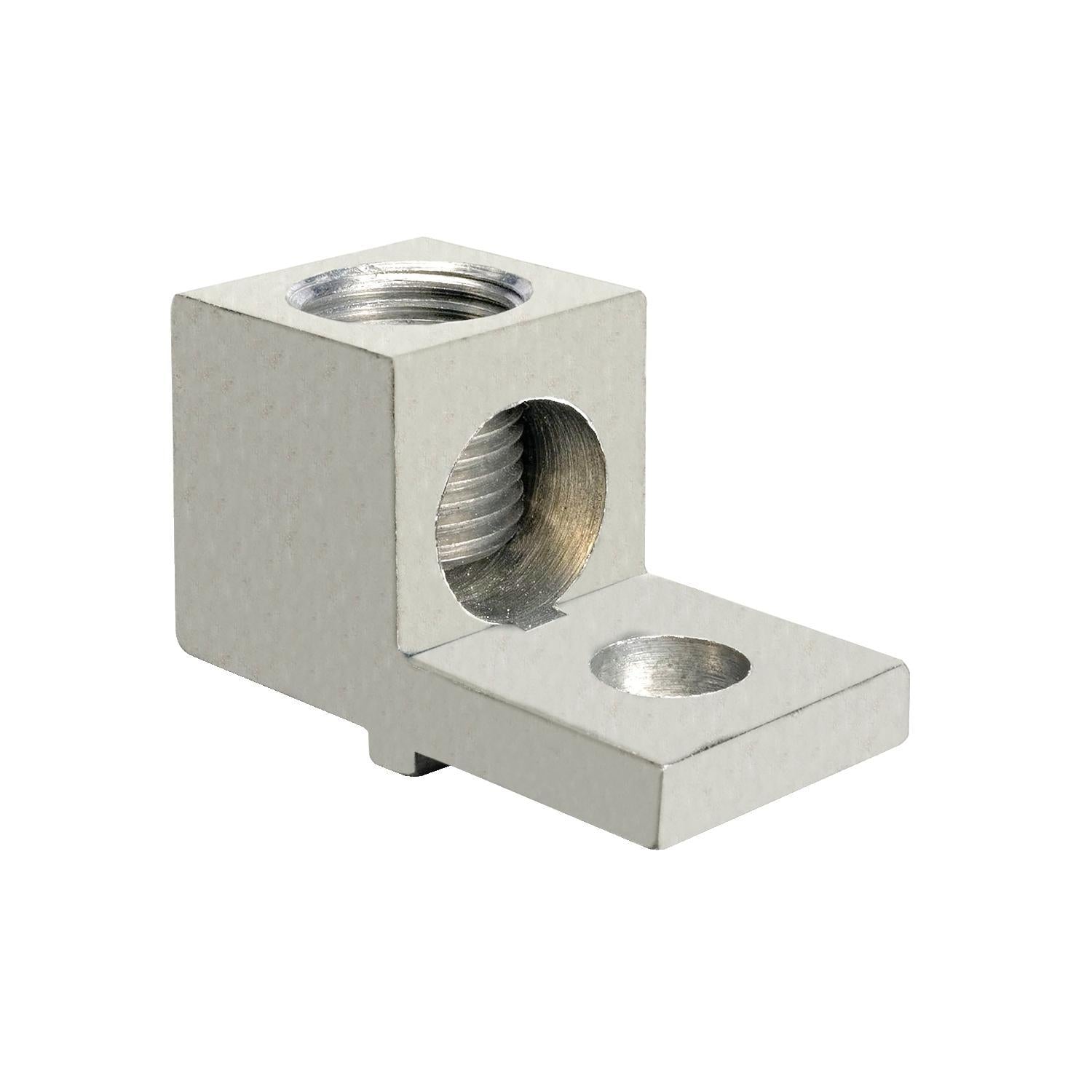

Schneider Electric DZ2FH1 Contactor Lug Kit 6 AWG to 300 MCM

Product Description

The SCHNEIDER ELECTRIC DZ2FH1 is a contactor lug kit with a rated operational current of 225-330A. This lug kit accommodates conductor sizes from 6 AWG to 300 MCM and is suitable for use with 2-pole, 3-pole, and 4-pole LC1F225, LC1F265, and LC1F330 contactors.

• Contactor lug kit
• Rated operational current: 225-330A
• Conductor Size 6 AWG to 300 MCM

Product Highlights

Contactor lug kit for use with various contactors. Supports conductor sizes from 6 AWG to 300 MCM.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: DZ2FH1
• Country of Origin: USA

Technical Specifications

• Size: #6 - 300MCM WIRE
• Type: CONTACTOR LUG KIT
• Brand: Schneider Electric
• Amperage: 330 Amp
• Sub Brand: TESYS
• Product UPC: 78590111813
• 12-Digit UPC: 785901118138
• Applications: 2-POLE, 3-POLE AND 4-POLE LC1F225, LC1F265 AND LC1F330 CONTACTORS
• TC Connection: LUG
• Country of Origin: USA
• Line Rated Current: 225-330 A
• Catalog Number: DZ2FH1
• Manufacturer: Schneider Electric
• Made in USA: No
• UPC: 785901118138
• GTIN: 00785901118138
• Item Type: Lug kit
• Conductor Size: 6 AWG to 300 MCM
• Conductor Material: Aluminum/Copper
• Quantity: 1
• Used On: F-Line LC1F265/LC1F330 2/4-Pole Contactor
• Item [Specifications]: Mechanical Connector
• Width [Specifications]: 3.02 in
• Length [Specifications]: 2.0 in
• Material [Specifications]: Tin-Plated Aluminum
• Standards [Specifications]: CE Certified, CSA Certified, UL Listed
• Head Style [Specifications]: Hex
• Screw Finish [Specifications]: Tin Plated
• Body Material [Specifications]: Aluminum
• Overall Width [Specifications]: 3.02 in
• Connector Type [Specifications]: Lug
• Contact Finish [Specifications]: Tin
• Overall Length [Specifications]: 2 in
• RoHS Compliant [Specifications]: Yes
• Screw Material [Specifications]: Aluminum
• No. of Conductors [Specifications]: 1
• Max. Conductor Size [Specifications]: 300 kcmil Stranded
• Min. Conductor Size [Specifications]: 6 AWG Stranded
• Number of Conductors [Specifications]: 1
• Length (Straight Wireway) [Specifications]: 2.0 in
• Compatible with Product Type [Specifications]: Contactors
• Country of Origin (subject to change) [Specifications]: Multiple
• Numeric ID: 2510411
• Series: TeSys Giga Series
• ECCN: EAR99
• UNSPSC: 39121529
• Direct Mount: Direct Mount
• Suitable For Use With: LC1F225, LC1F265, LC1F330 2, 3 and 4-Pole Contactor
• Specifications: 6 AWG to 300 kcmil Wire, 330 A Maximum Inductive Current
