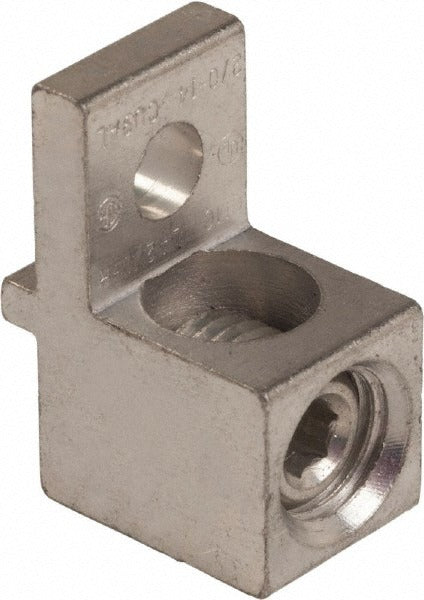

Schneider Electric DZ2FF1 Contactor Lug LC1F115

Product Description

The SCHNEIDER ELECTRIC DZ2FF1 is a contactor lug accessory designed for use with the LC1F115 contactor. This lug provides a secure termination point for power conductors, allowing field installation or replacement of connection hardware on the contactor body. Measuring 1.2 inches in length, 0.9 inches in width, and 0.6 inches in height, this compact component weighs 0.03 pounds. It is sold as a single unit and is intended for use by licensed electricians performing contactor maintenance, repair, or wiring work in commercial and industrial electrical panels and motor control applications.

This lug is suited for installation on the LC1F115 contactor in motor control centers, disconnect panels, and industrial control cabinets. Typical applications include three-phase motor starters and power distribution assemblies where a replacement or additional lug connection is needed. The DZ2FF1 is a direct OEM-style accessory replacement for field service work on compatible Schneider Electric contactor assemblies.

Key Features

• OEM-style contactor lug accessory for the LC1F115 contactor
• Compact profile at 1.2 x 0.9 x 0.6 inches for tight panel installations
• Lightweight construction at 0.03 pounds
• Single-unit packaging for precise replacement quantities
• Designed for secure conductor termination on contactor terminals

Compatibility

Designed for use with the Schneider Electric LC1F115 contactor as stated by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the panel or motor control center before removing or installing any contactor accessory. Confirm conductor sizing and torque requirements for the terminal connection using the LC1F115 contactor documentation before tightening lugs. Do not energize the assembly until all terminations are fully secured and inspected.
