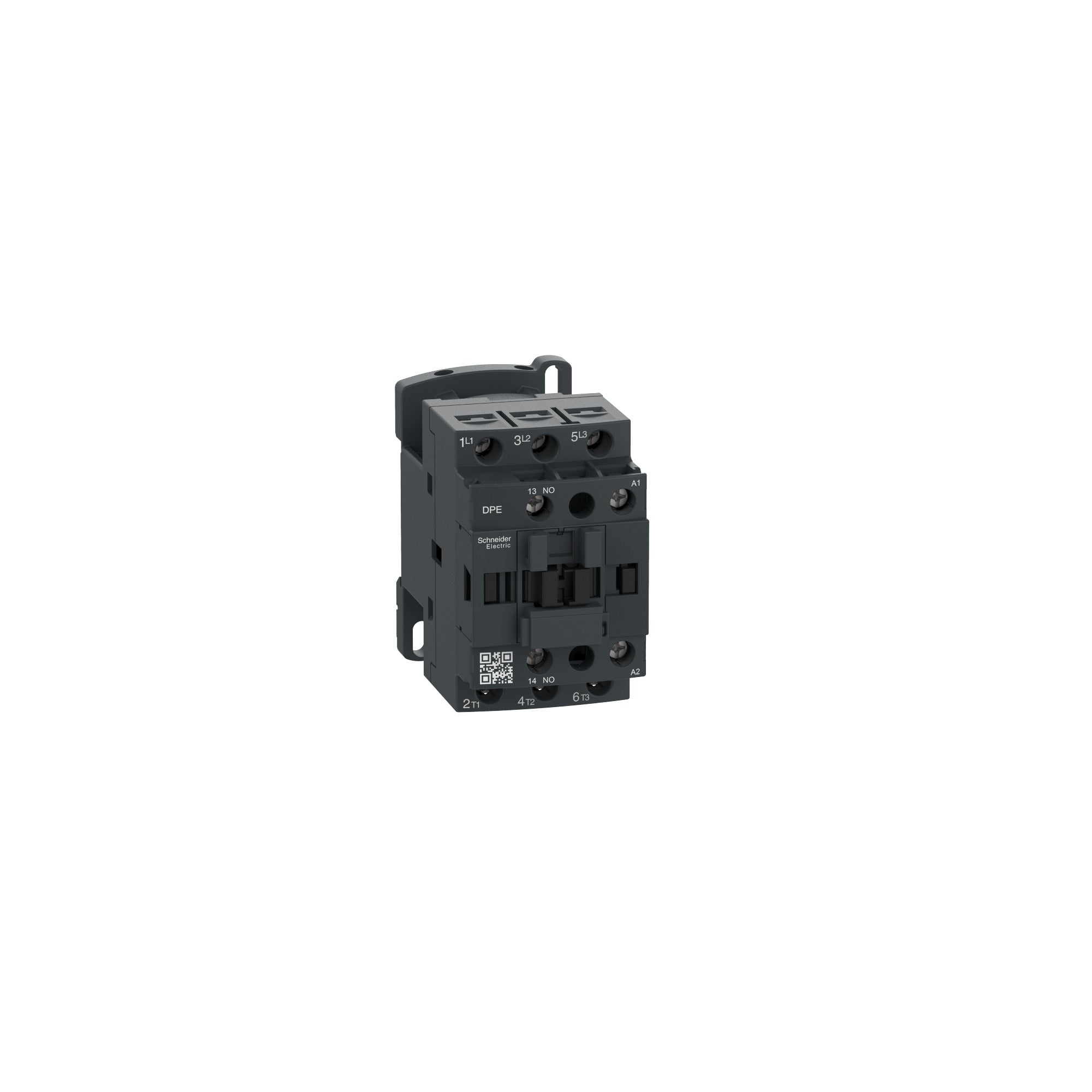

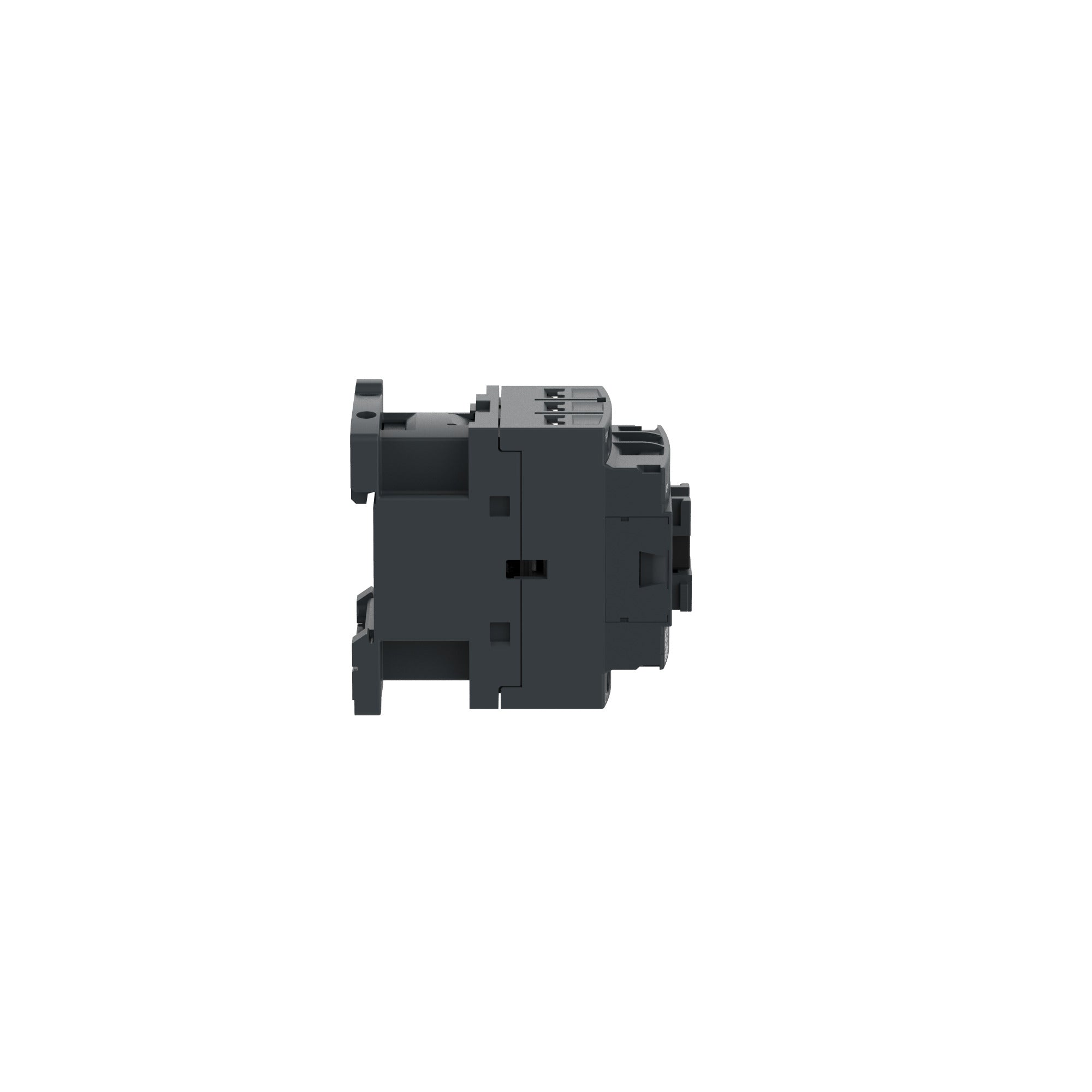

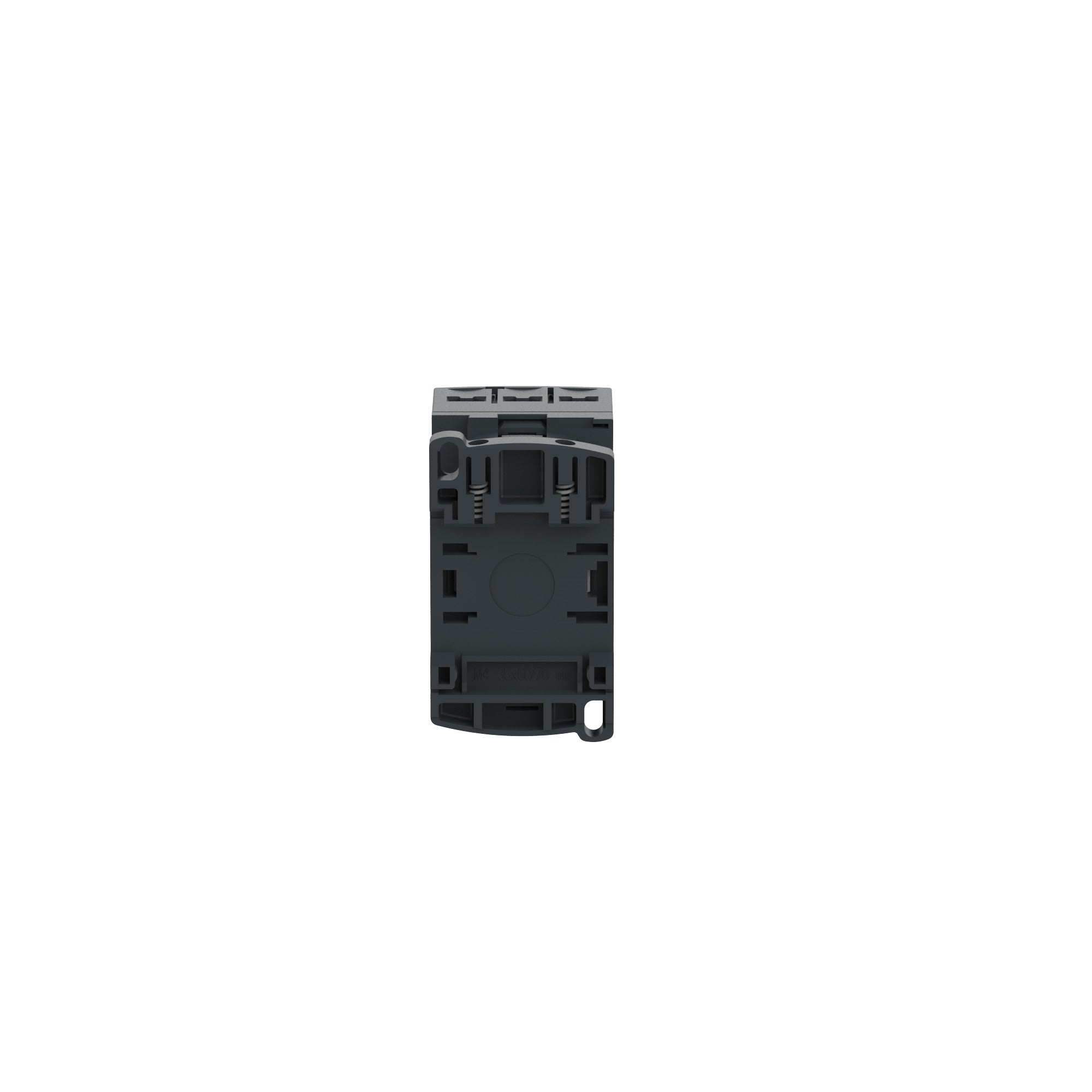

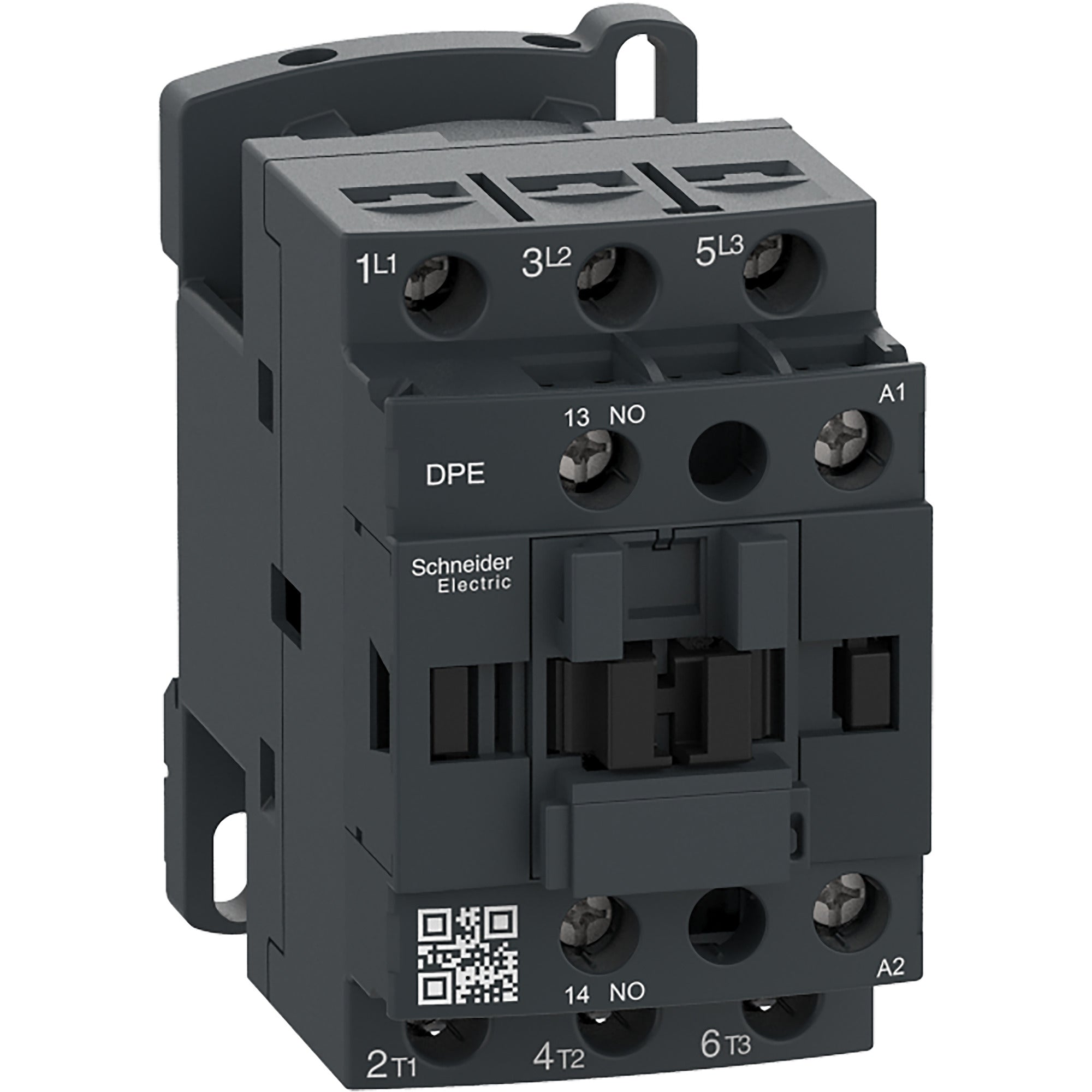

Schneider Electric DPE25G7 IEC Contactor Easy TeSys Nonreversing 25A 3P 10HP at 480V AC 120V 50/60Hz coil

Product Description

Schneider Electric DPE25G7 is an IEC contactor designed for motor control applications. It is suitable for loads up to twenty-five amperes and six hundred ninety volts. This model is three poles configured for effective operation in various industrial settings. It operates with a one hundred twenty volts AC coil at fifty or sixty hertz. The device features one normally open and one normally closed built-in auxiliary contact. The product connects through screw clamp terminals for reliable attachment.

• Compact design fits in tight spaces.
• Easy installation on DIN rails or by screw fixing.
• Multi standards certified including IEC, UL, and CSA.

Product Highlights

This contactor provides robust functionality for motor control and resistive loads.

Product Information

Standard Information

• Catalog Number: DPE25G7
• Brand: Schneider Electric

Technical Specifications

• Coil Voltage: 120 V AC 50/60 Hz
• Operating Voltage: 690 VAC
• Contact Configuration: 3 NO; Mechanically linked 1 NO
• Mounting: Rail Plate
• Country of Origin: Indonesia
• Application: Resistive load; motor control
• Weight: 0.8 lbs
• Dimensions: 3.39 x 3.03 x 1.77 inches
