Schneider Electric DPE12B7 3 Pole Easy TeSys DPE IEC Contactor 5HP 12A 24 VAC 480V

Product Description

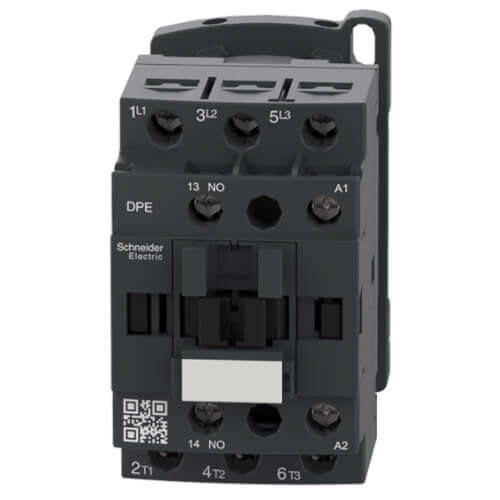

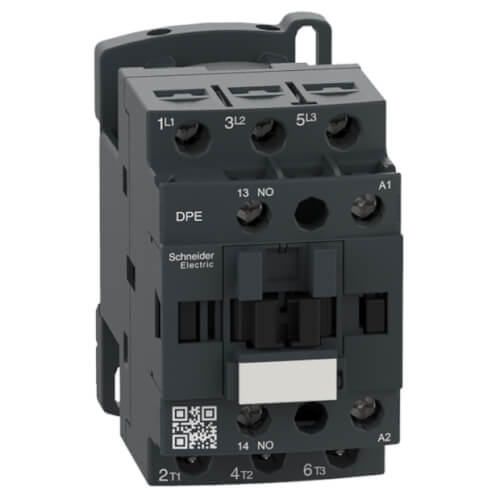

The Schneider Electric DPE12B7 is a 3 pole Easy TeSys IEC contactor designed for motor control applications. It supports up to twelve amps and operates efficiently at voltages up to six hundred ninety with a simple setup. This contactor features a twenty-four volt fifty to sixty hertz AC coil and includes one normally open and one normally closed auxiliary contact. It connects via screw clamp terminals and is suitable for DIN-rail mounting or direct screw fixing.

• Compact size with a width of forty-five millimeters.
• Certified for multiple standards including IEC, UL, and CSA.
• Green Premium compliant with RoHS and REACh directives.

Product Highlights

The DPE12B7 contactor is designed for quick installation and reliable performance, making it ideal for common electrical applications.

Product Information

Standard Information

• Contactor Application: Motor control
• Poles Description: Three poles (3P)

Technical Specifications

• Control Circuit Type: AC fifty to sixty hertz
• Control Circuit Voltage: Twenty-four volts AC
• Operating Voltage: Six hundred ninety volts AC
• Auxiliary Contact Composition: One normally open contact
• Mounting Support: Rail or plate
