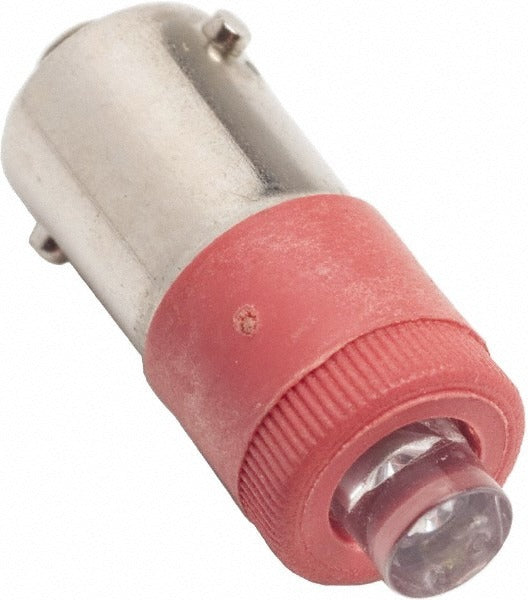

Schneider Electric DL1CJUS0244 Replacement Led 24V Red

Product Description

The SCHNEIDER ELECTRIC DL1CJUS0244 is a replacement LED lamp designed for pilot and indicator light assemblies operating on 24 volts AC or 24 volts DC. This low-voltage LED module drops into compatible pilot light bodies to restore visual status indication on control panels, machine interfaces, and industrial equipment. The red light color provides a clear at-a-glance signal for fault, active, or stop states depending on the application. At 0.01 pounds and compact dimensions of 1 inch in length by 0.5 inches in width by 0.5 inches in height, it is a direct-fit lamp replacement that requires no special tools to swap out. Licensed electricians and controls technicians are the typical installers.

This replacement LED is suited for use in industrial control panels, HVAC equipment control circuits, motor control centers, and building automation panels where 24-volt pilot light assemblies are installed. The 24-volt dual-rated design covers both AC and DC control circuits, making it a single-part solution across a range of low-voltage panel configurations. The red LED color is commonly used to signal an energized state, alarm condition, or equipment-stop status in control panel wiring.

Key Features

• Rated for 24 volts AC and 24 volts DC operation — covers both control circuit types
• Red LED color for fault, stop, or active status indication
• Compact form factor: 1 inch length, 0.5 inches width, 0.5 inches height
• Direct replacement lamp — installs into existing pilot light body without modification
• Sold individually (package quantity of 1)

Compatibility

Designed as an OEM-style replacement LED for 24-volt pilot and indicator light assemblies commonly found in industrial control panels and HVAC equipment control circuits.

Installation Notes

Installation is typically performed by a licensed electrician or qualified controls technician. De-energize and lock out the control panel before removing the existing lamp module. Verify the control circuit voltage is 24 volts AC or 24 volts DC before installing this LED. NEC Article 409 and equipment manufacturer guidelines apply to control panel wiring and component replacement.
