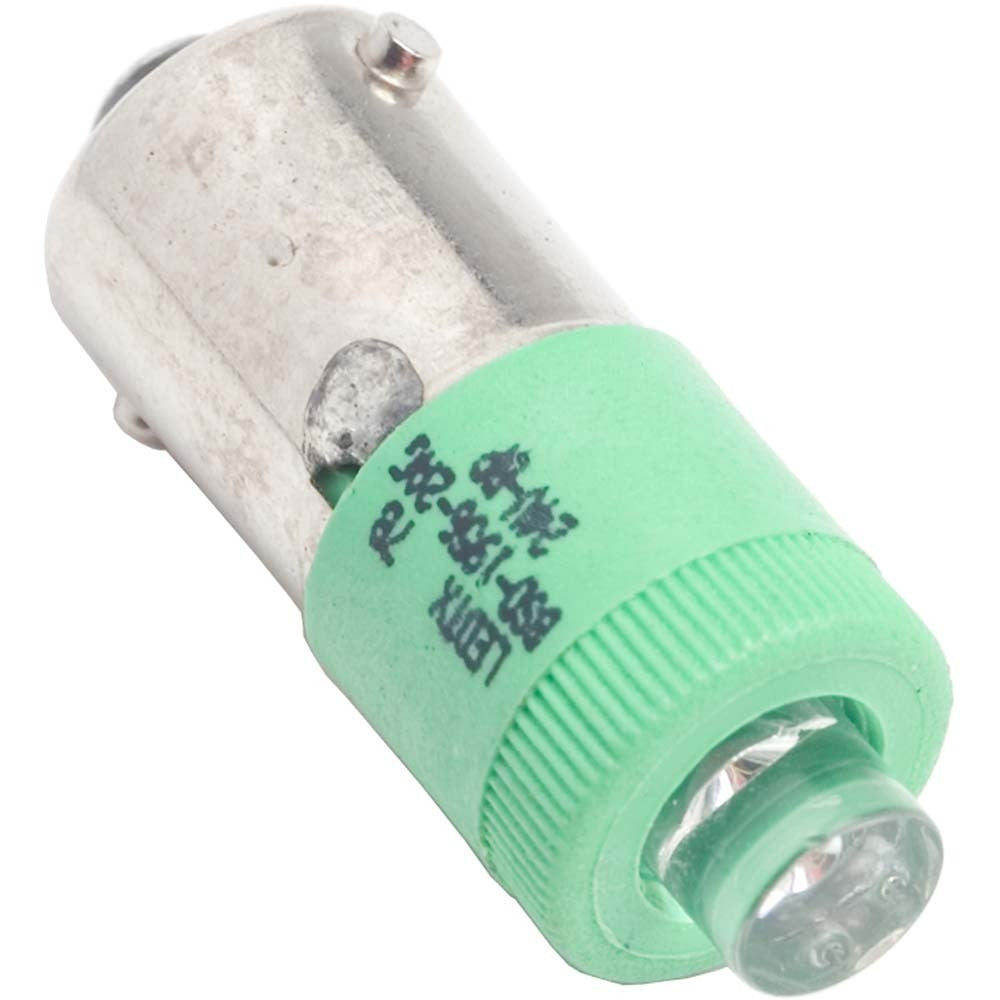

Schneider Electric DL1CJUS0243 Replacement Led 24V Green

Product Description

The SCHNEIDER ELECTRIC DL1CJUS0243 is a replacement LED module designed for pilot and indicator light assemblies operating on 24 VAC or 24 VDC systems. This green LED insert fits into compatible pilot light bodies to provide a clear, low-energy status indication on control panels, motor starters, push-button stations, and similar industrial or commercial electrical enclosures. Electricians and controls technicians install this module as a direct replacement when the original LED element fails, restoring visual indication without replacing the entire pilot light assembly. The unit measures 1 inch in length and 0.5 inches in width and height.

This replacement LED is suited for use in control panel applications across commercial and light industrial installations where 24-volt pilot light circuits are standard. It is commonly installed in machine control panels, HVAC equipment enclosures, and motor control centers where green indicator lights signal run, open, or safe-state conditions. The 24 VAC and 24 VDC dual-voltage compatibility makes it practical across a wide range of low-voltage control circuit configurations.

Key Features

• Dual-voltage operation: compatible with both 24 VAC and 24 VDC control circuits
• Green LED color for standard status or run indication
• Compact form factor: 1 inch long, 0.5 inches wide, 0.5 inches tall
• Direct replacement module — restores function without full assembly swap
• Low operating weight of 0.01 pounds for easy handling and installation

Compatibility

Designed as a replacement LED module for compatible Schneider Electric pilot and indicator light assemblies that accept 24-volt LED elements. Verify physical form factor and voltage rating against the existing pilot light body before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control circuit before removing the existing LED module or inserting the replacement. Confirm the control circuit voltage matches the 24 VAC or 24 VDC rating of this LED before energizing. Do not install in circuits exceeding the rated voltage of this module.
