Schneider Electric DFCC3V 52.5 x 88.5 mm 690 VAC 30 Amp 3-Pole Rail Mount Fuse Holder

Product Description

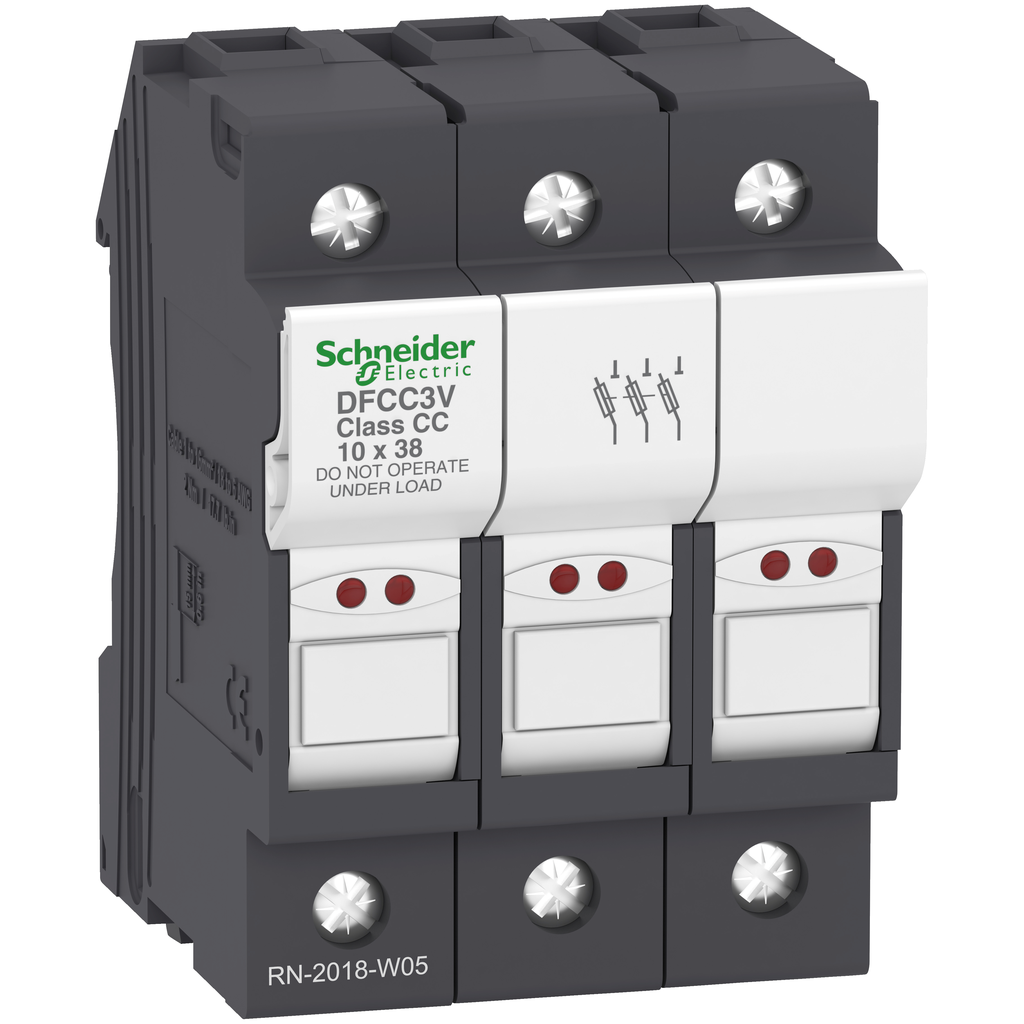

The Schneider Electric DFCC3V is a modular fuse carrier designed for North American markets. This 3-pole (3P) fuse holder offers exceptional protection for control circuits at 30 amps and 690 volts. It is compatible with class CC fuse links and can handle short circuit currents of up to 200kA at 600 volts. An LED indicator shows when a fuse has blown, enhancing safety and reliability.

This unit has a compact design with a width of fifty-two point five millimeters, making it suitable for use in modular panels. It easily clips onto standard thirty-five millimeter DIN rails and connects through screw clamp terminals. This product is padlockable without the need for additional accessories.

• Modular fuse carrier with three poles.
• Blown fuse indicator via LED.
• Compact design for modular panels.

Product Highlights

This fuse carrier is multi-standard certified, including UL and CSA, and is recognized as a Green Premium product, complying with RoHS and REACh standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: DFCC3V
• Voltage: 600 Volt
• Amperage: 30 Amp
• Width: 52.5 mm
• Height: 79.5 mm
• Depth: 61 mm
• Weight: 0.28 lb
• Warranty Length: 18 months
