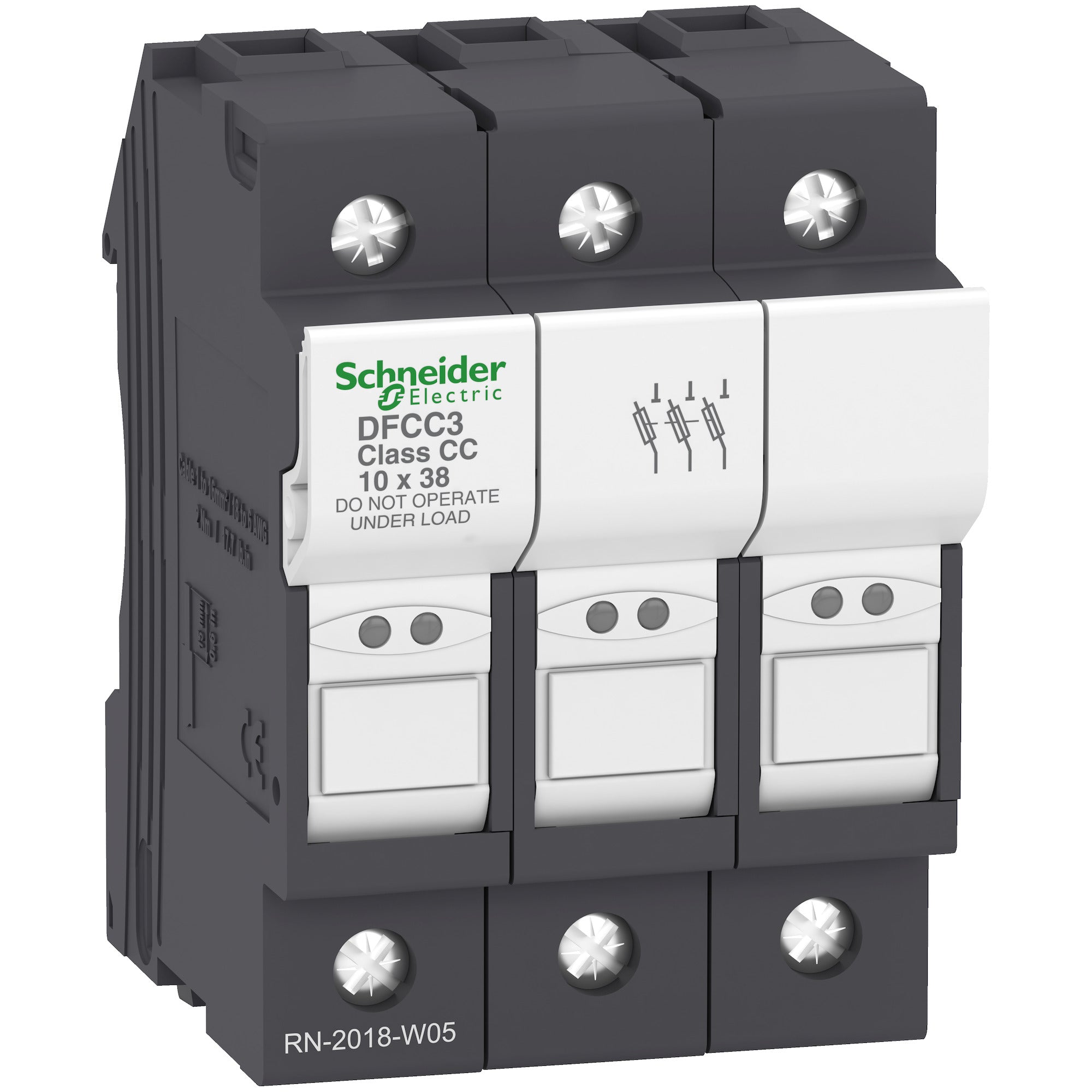

Schneider Electric DFCC3 Fuse Carrier TeSys DF 3P 30A 600VAC Fuse Class CC

Product Description

The Schneider Electric DFCC3 Fuse Carrier is a modular unit designed for protecting control circuits. It operates with three poles and can handle a maximum current of thirty amperes at six hundred volts AC. This carrier is suitable for the North American market and works with class CC fuse links. It supports a short circuit current of up to two hundred kiloamperes at six hundred volts.

• Compatible with CC fuses and supports 30A.
• Meets UL and CSA standards.
• Compact design suitable for modular panels and DIN rail installation.

Product Highlights

Utilizes screw clamp terminals for connection and features an optional padlock for securing the unit. It can be easily mounted on a 35mm DIN rail and is sold in lots of 6 units. The product is also certified as a Green Premium item, complying with RoHS and REACh.

Product Information

Standard Information

• Catalog Number: DFCC3
• Manufacturer: Schneider Electric

Technical Specifications

• Poles: 3
• Rated Operational Voltage: 600 V AC
• Rated Current: 30 A
• Short-Circuit Current: 200 kA
• Width: 52.5 mm
• Warranty Description: 18 months
• Country of Origin: United States
• Made in USA: Yes
