Schneider Electric DFCC1V Square D 1-Pole Fuse Holder 30 Amp 690 VAC

Product Description

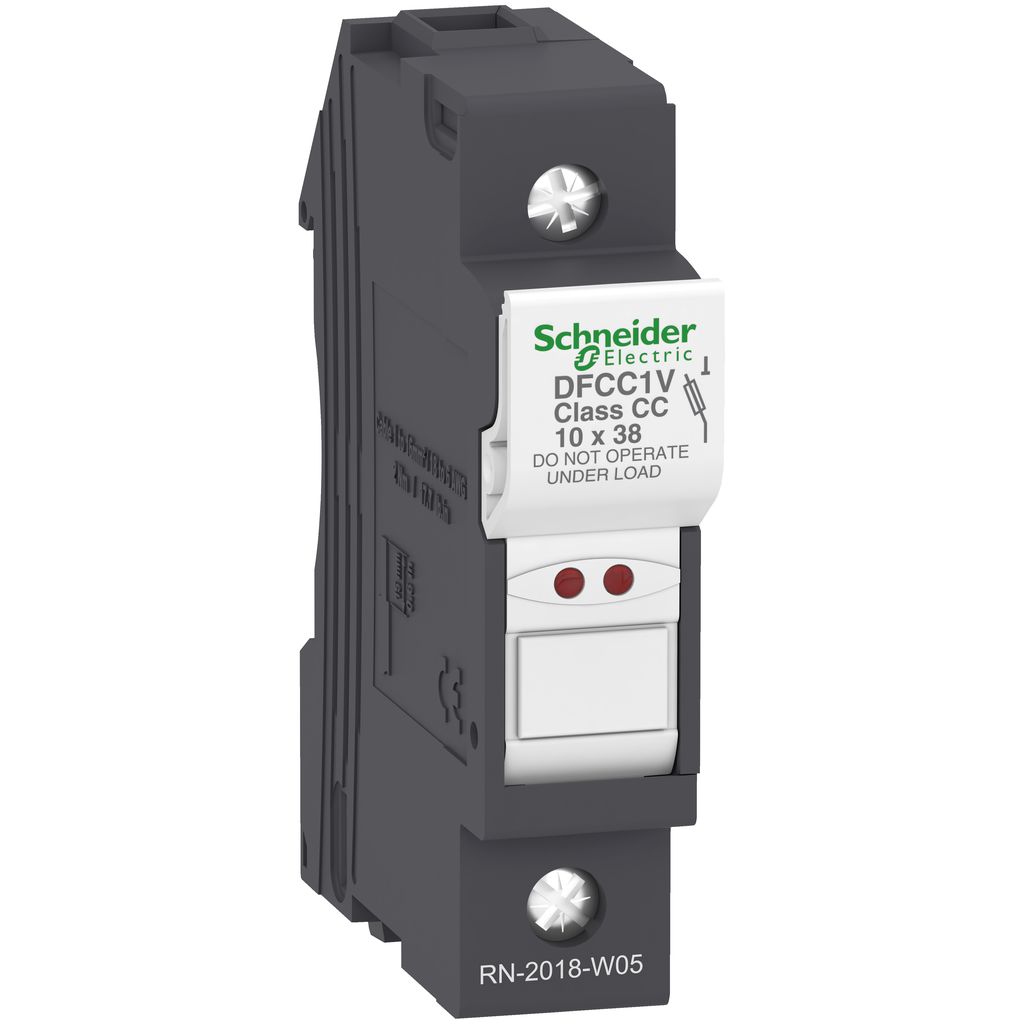

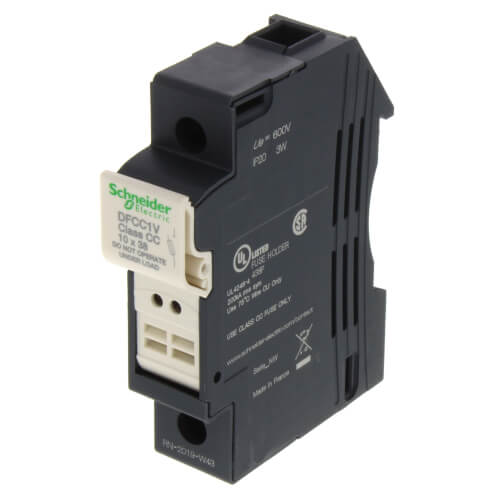

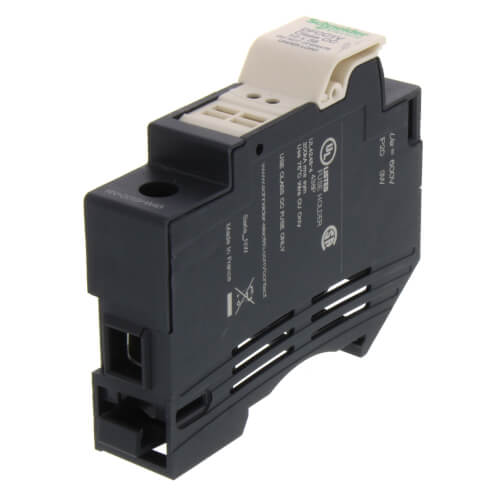

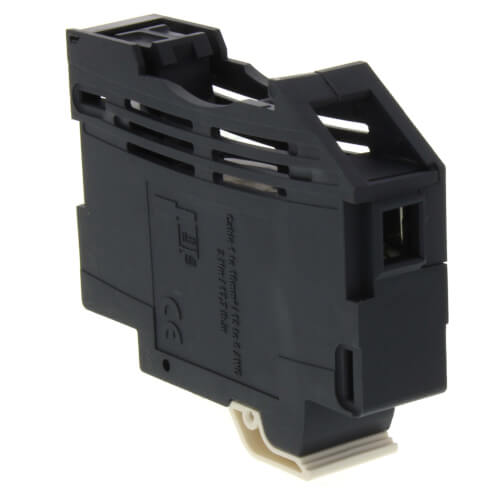

Schneider Electric DFCC1V is a modular fuse carrier designed for the North American market. It protects control circuits up to thirty amps and six hundred volts. This one-pole fuse holder works with class CC fuse links and can handle short-circuit currents up to two hundred kiloamperes at six hundred volts. The product features blown fuse indication via LED for easy monitoring. It has a compact width of seventeen point five millimeters, making it suitable for modular panels. The fuse holder clips onto thirty-five millimeter DIN rails and connects using screw clamp terminals. It is padlockable without additional accessories. Multiple auxiliary options, including fuse carrier assembly kits and clip-in markers, are available for separate purchase. Sold in lots of twelve units, this fuse holder meets multiple standards certifications, including UL and CSA. It is recognized as a Green Premium product, compliant with RoHS and REACh standards.

• Compact design for modular installations
• LED blown fuse indication feature
• Suitable for class CC fuses up to thirty amps

Product Highlights

Ideal for protecting control circuits in various electrical applications while ensuring safety and compliance with industry standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: DFCC1V
• Voltage: 600 Volt
• Amperage: 30 Amp
• Width: 17.5 mm
• Height: 79.5 mm
• Depth: 61 mm
• Weight: 0.09 lb
• Fuse Type: CC
