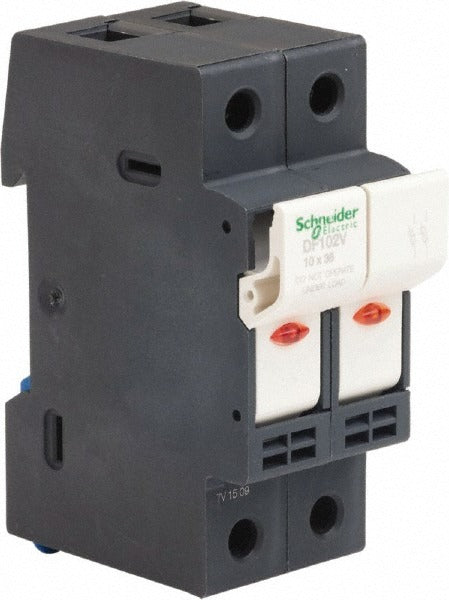

Schneider Electric DF102V 2-pole Din Rail Fuse Holder 600V 32A

Product Description

The SCHNEIDER ELECTRIC DF102V is a 2-pole, DIN rail mount fuse holder rated for 600 volts and 32 amps. It accepts AM and GG class fuses measuring 38mm in length and 10mm in diameter, making it a direct-fit solution for industrial control panels, electrical distribution boards, and branch circuit protection applications. Termination is handled via screw-type wire connections, providing a secure and serviceable electrical interface. Licensed electricians and panel builders typically install this component during new construction or retrofit projects where overcurrent protection is required in a compact, rail-mounted format.

The DF102V suits residential and commercial electrical panel applications where DIN rail mounting is the standard form factor. It is appropriate for use in motor control centers, machine control enclosures, and distribution panels requiring dual-pole fuse protection. The AM and GG fuse class compatibility covers a wide range of general-purpose and motor-protection fusing scenarios commonly encountered in trade electrical work.

Key Features

• 2-pole configuration provides dual-circuit overcurrent protection in a single housing
• Rated for 600 volts and 32 amps for broad industrial and commercial panel compatibility
• Compatible with AM and GG class fuses, 38mm long and 10mm in diameter
• DIN rail mount design simplifies installation and replacement in standard enclosures
• Screw wire termination ensures reliable, maintenance-friendly electrical connections

Compatibility

Compatible with AM and GG class fuses rated 38mm long by 10mm in diameter. Designed as an OEM-style replacement fuse holder for DIN rail-mounted industrial and commercial electrical panels requiring 2-pole, 600-volt overcurrent protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the panel before mounting or servicing this fuse holder. Secure the holder firmly onto a standard DIN rail before inserting fuses and terminating wiring at the screw terminals. Verify fuse class and rating match the circuit requirements before energizing.
