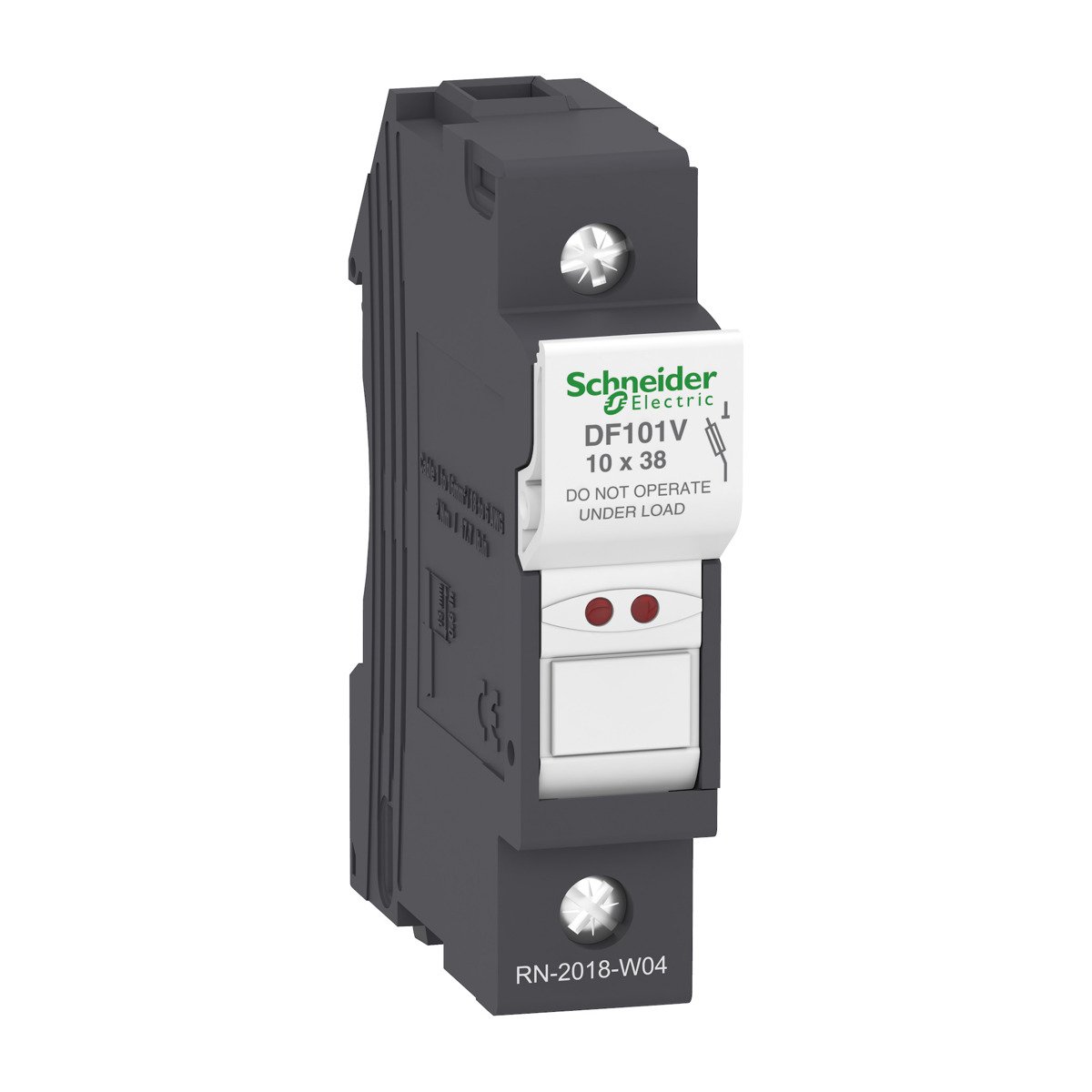

Schneider Electric DF101V Fuse Carrier TeSys DF 1P 32A 690VAC Fuse Size 10x38mm

Product Description

Schneider Electric DF101V is a modular fuse carrier designed for one pole (1P) application, ensuring control circuit protection up to thirty-two amperes and six hundred ninety volts. This product is compatible with ten by thirty-eight millimeter fuse links, providing performance up to a short circuit current of one hundred twenty kA at four hundred volts.

• Provides blown fuse indication through LED
• Compatible with various fuse links and auxiliary components
• Suitable for mounting on a thirty-five millimeter DIN rail

Product Highlights

This fuse carrier ensures reliable protection for control circuits while offering compatibility with multiple standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: DF101V
• Poles: 1P
• Rated Operational Current: 32 A
• Rated Operational Voltage: 690 V AC / 690 V DC
• Fuse Size: 10 x 38 mm
• Short-Circuit Withstand: 120 kA at 400 V
• Connection Type: Screw clamp terminals
• Mounting Support: 35 mm symmetrical DIN rail
• Certifications: IEC, UL recognized, CSA, CCC, EAC, DNV-GL
