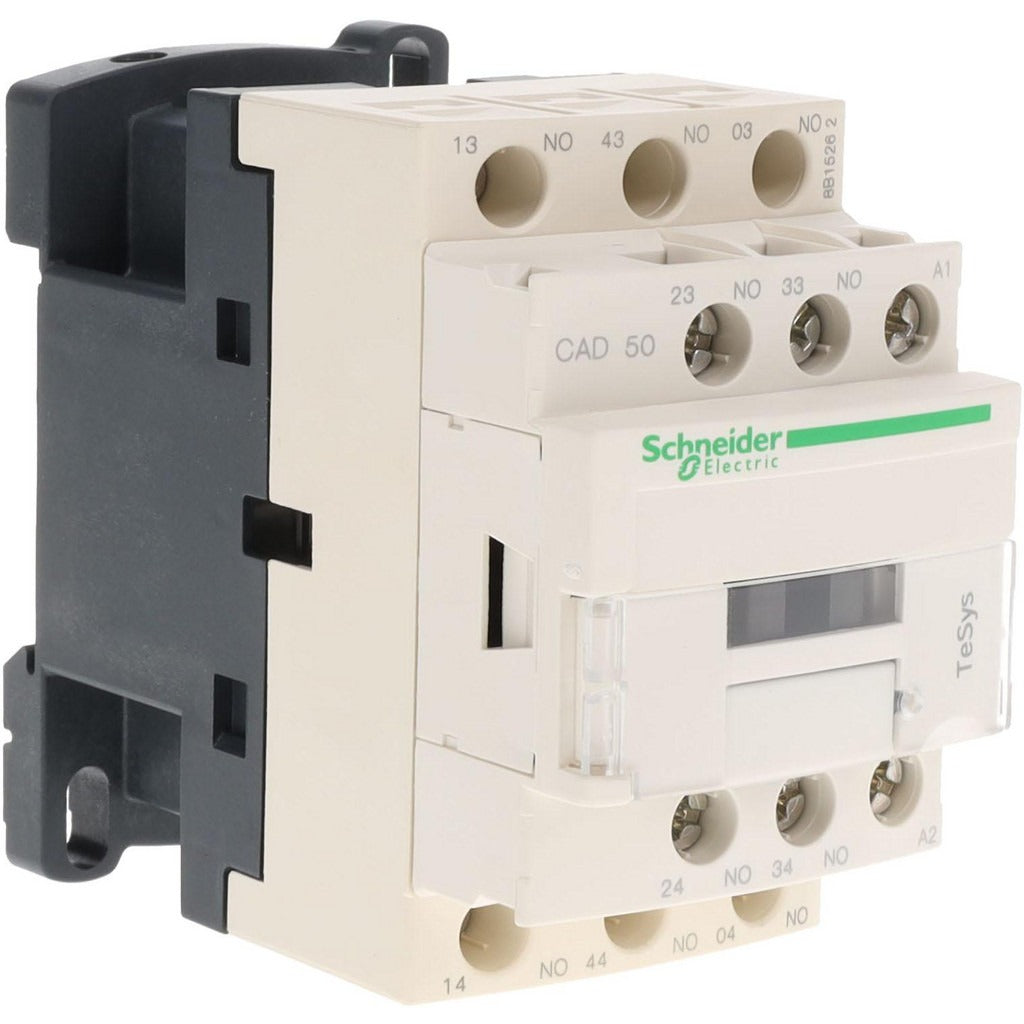

Schneider Electric CAD50U7 Control Relay 5NO 240 Vac

Product Description

The SCHNEIDER ELECTRIC CAD50U7 is a 5NO (five normally open contact) control relay rated for 240 VAC at 50/60 Hz. It is designed for use in industrial and commercial control circuits where reliable switching and signal isolation are required. The relay mounts on standard DIN rail, uses screw terminals for field wiring, and carries an IP2X ingress protection rating. Operating temperature range spans -40 degrees F to 158 degrees F, making it suitable for demanding environments. Licensed electricians and industrial controls technicians install this relay as part of motor control, automation, and machine control panels.

The CAD50U7 is suited for AC control circuit applications in commercial and industrial electrical panels, motor starters, and programmable logic controller (PLC) output circuits. It is commonly installed in environments requiring a compact DIN rail relay with multiple normally open contacts for signal switching or auxiliary control logic. The screw terminal design supports straightforward field wiring during panel assembly or service replacement.

Key Features

• 5NO contact configuration for multi-circuit switching in a single device
• 240 VAC coil rated for 50/60 Hz AC control circuits
• DIN rail mount for fast, tool-efficient panel installation
• Screw terminal connections for secure, serviceable field wiring
• Wide operating temperature range: -40 degrees F to 158 degrees F
• Meets multiple standards including UL Listed, CSA, IEC 60947-5-1, EN 60947-5, and RoHS Compliant

Compatibility

Designed as an OEM-style DIN rail control relay for use in industrial and commercial AC control circuit applications requiring 5NO contact configuration at 240 VAC 50/60 Hz.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before removing or installing the relay. Verify coil voltage matches the control circuit supply before energizing. Confirm all screw terminal connections are seated and torqued per the panel or equipment manufacturer wiring documentation.
