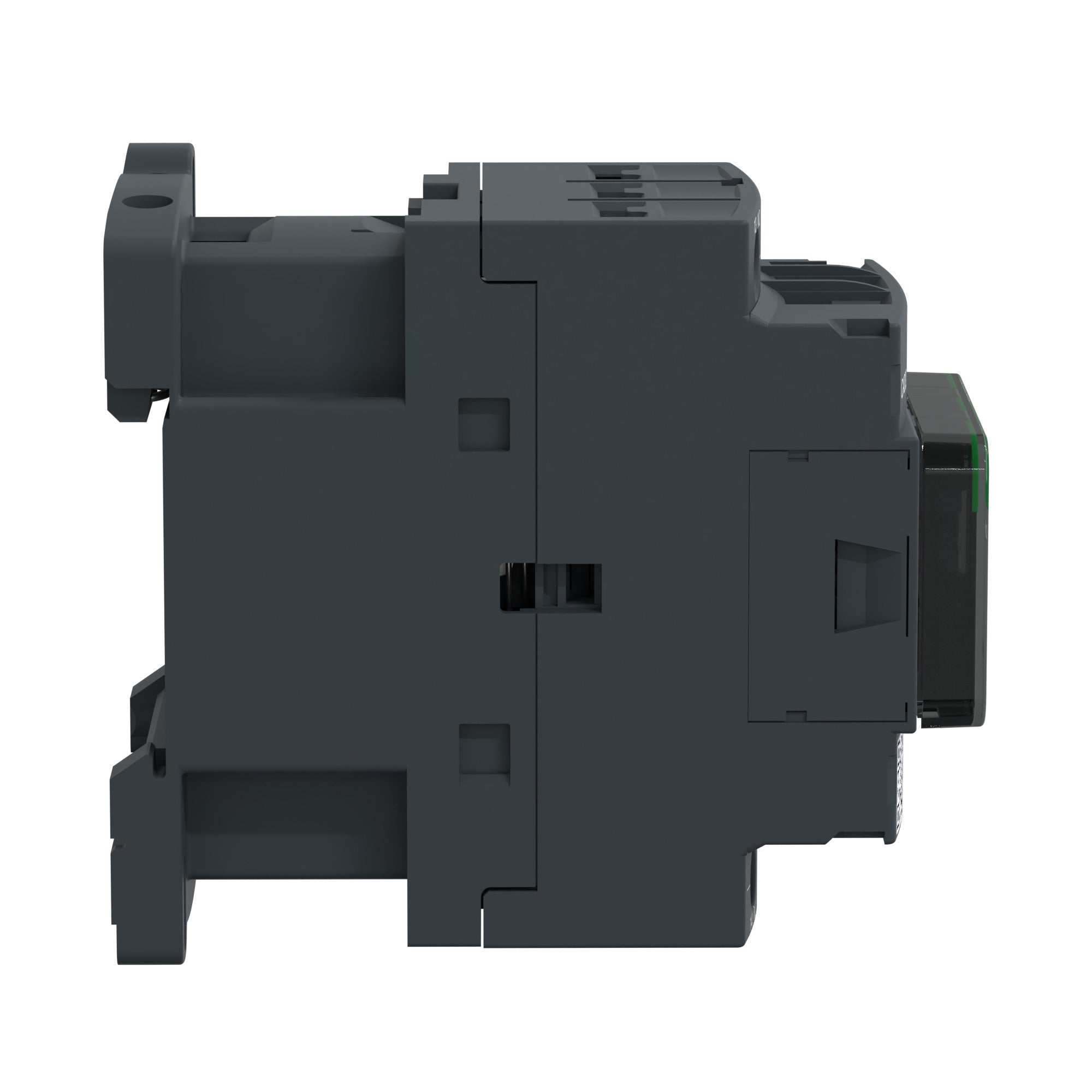

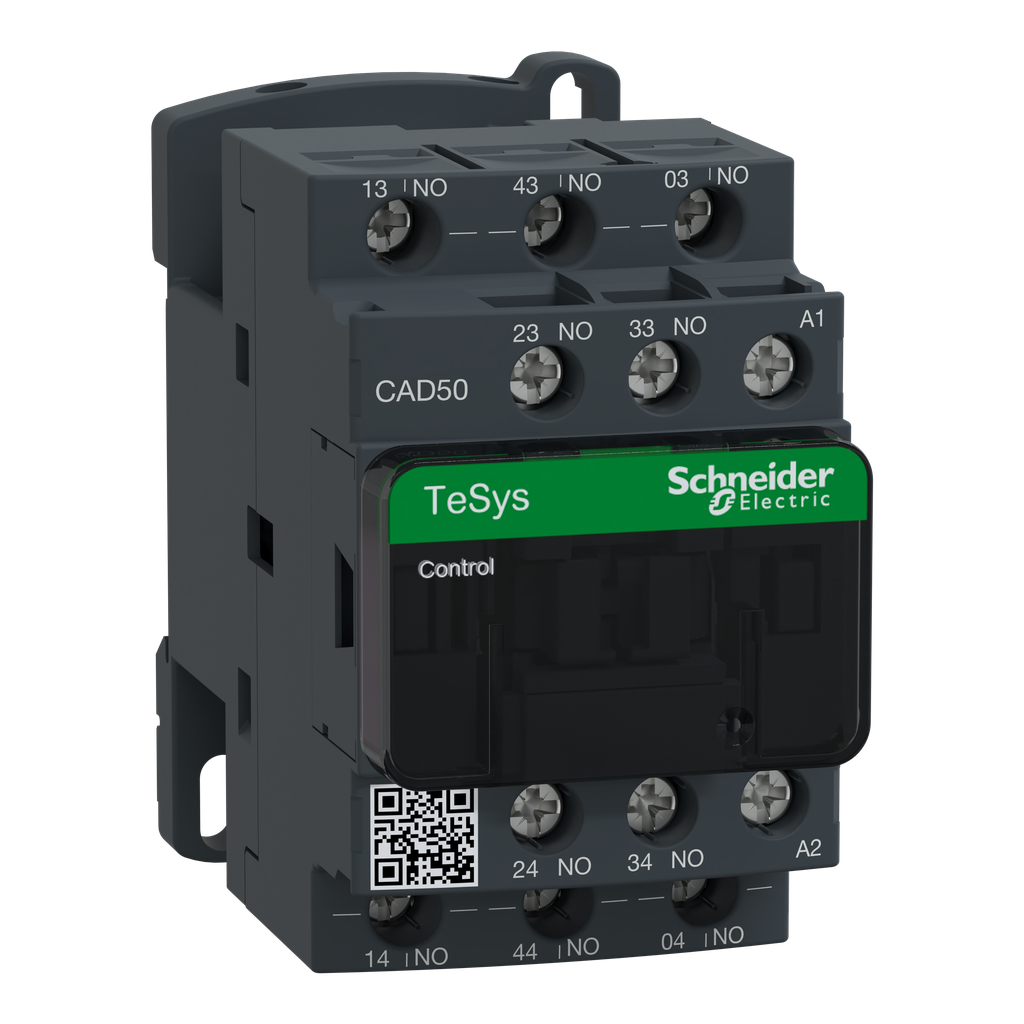

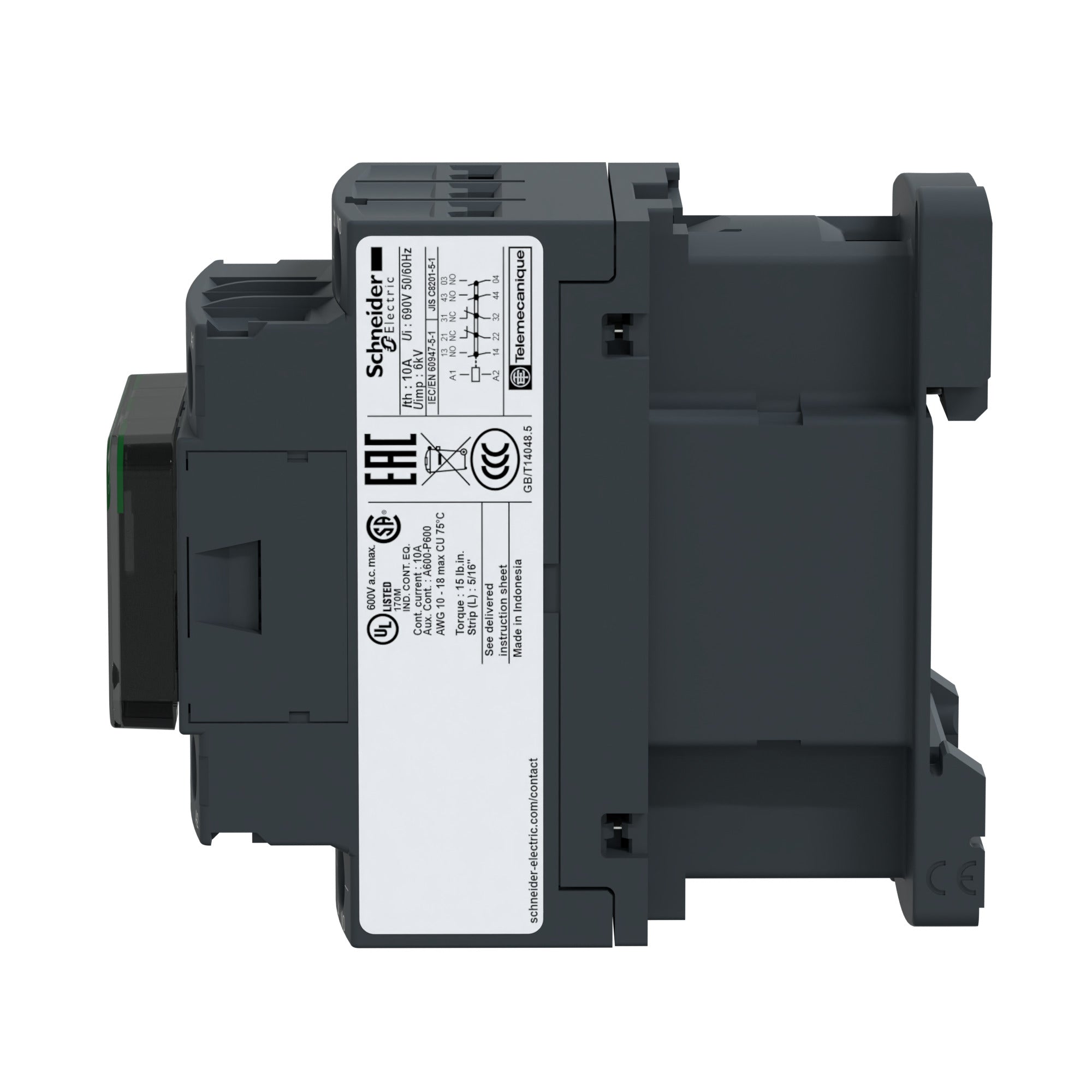

Schneider Electric CAD50G7 Square D Control Relay 10 Amp 120 VAC

Product Description

The Schneider Electric CAD50G7 is a control relay designed for various industrial applications. It operates at 120 volts AC and has a maximum contact rating of 10 amps. This relay features five normally open contacts (5NO) and is suitable for controlling electromagnetic loads in AC and DC circuits.

• 120 volts AC control circuit
• Suitable for high operating rates up to 180 cycles per minute
• Multi-standard certifications including IEC and UL

Product Highlights

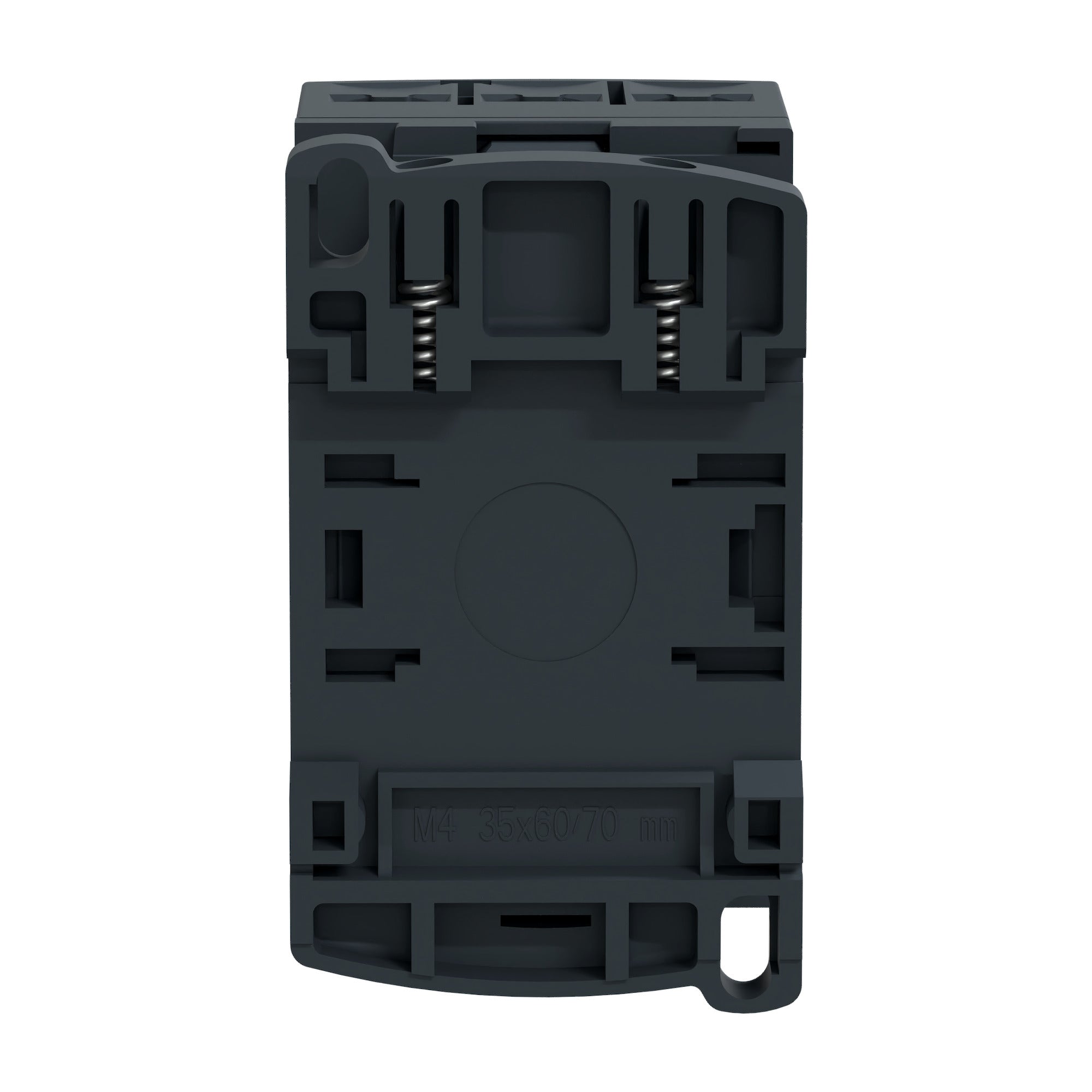

The CAD50G7 is compact for easy installation on a 35mm DIN rail or surface mounting with screws. It is reliable within an operating temperature range of negative forty to seventy degrees Celsius.

Product Information

Standard Information

• Catalog Number: CAD50G7
• Brand: Schneider Electric

Technical Specifications

• Input Voltage: 120 VAC
• Amperage: 10 Amps
• Contact Configuration: 5 NO
• Depth: 84 mm
• Width: 45 mm
• Height: 77 mm
• Weight: 1.28 lb
• Certifications: IEC, UL, CSA, CCC
