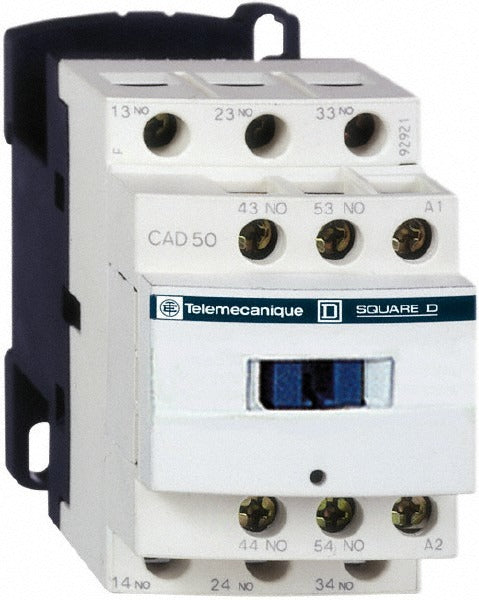

Schneider Electric CAD50F7 Control Relay 5NO 110VAC

Product Description

The SCHNEIDER ELECTRIC CAD50F7 is a 5NO (5 normally open contact) AC control relay rated for 110 VAC at 50/60 Hz. Control relays of this type serve as pilot-duty switching devices in industrial and commercial control circuits, using a low-power coil signal to switch multiple load circuits simultaneously. The CAD50F7 operates on an AC control circuit and is built for panel or DIN-rail installation in motor control centers, machine control panels, and building automation systems. Licensed electricians and industrial controls technicians are the primary installers of this device.

This relay is suited for use in commercial and industrial electrical control panels where multiple simultaneous switching contacts are required. Common applications include interlock circuits, sequencing logic, and auxiliary control functions in HVAC systems, conveyor controls, and process automation equipment. Its 5NO contact configuration makes it well suited for applications requiring parallel switching of several circuit branches from a single coil energization event.

Key Features

• 5 normally open (5NO) contact configuration for parallel circuit switching
• 110 VAC coil rated for 50/60 Hz AC control circuits
• Compact form factor at 2.2 x 4.5 x 3.7 inches
• Lightweight at 0.8 pounds for easy panel integration
• Designed for use in industrial and commercial control panel environments

Compatibility

Designed as an OEM-style replacement control relay for industrial and commercial AC control panel applications requiring a 5NO contact block at 110 VAC 50/60 Hz coil voltage.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing this relay. Verify coil voltage matches the control circuit supply before energizing. Confirm all contact terminations are secure and correctly wired before restoring power.
