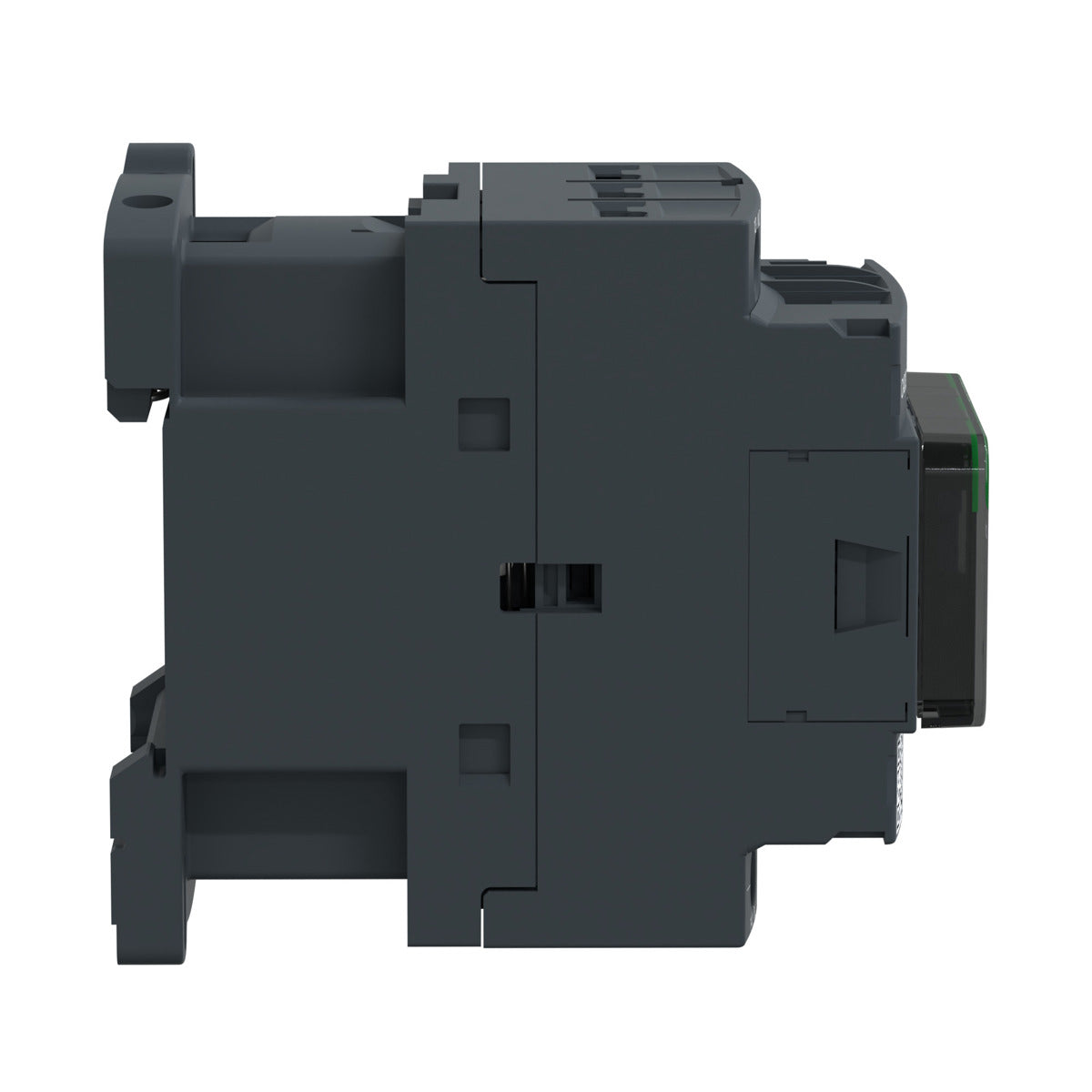

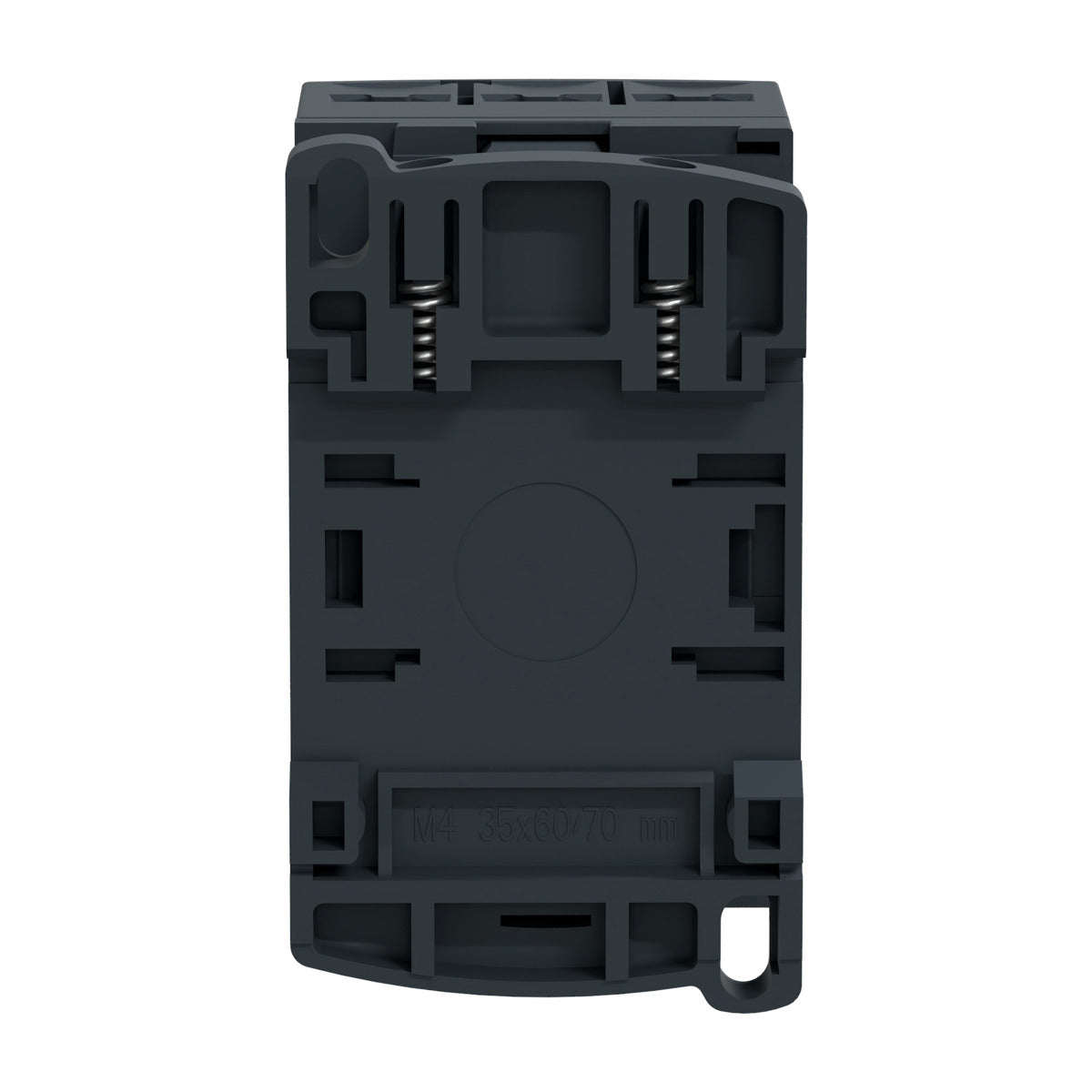

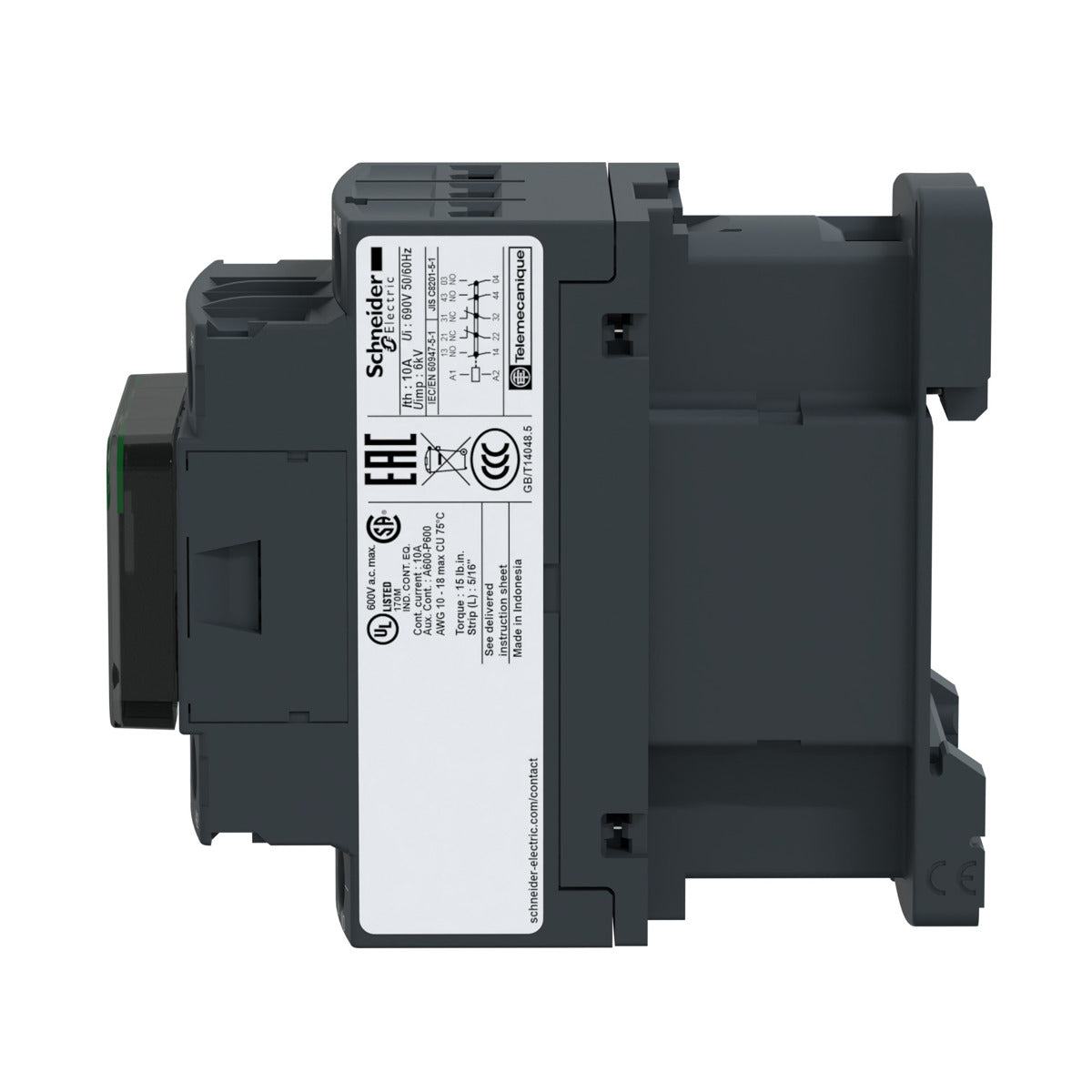

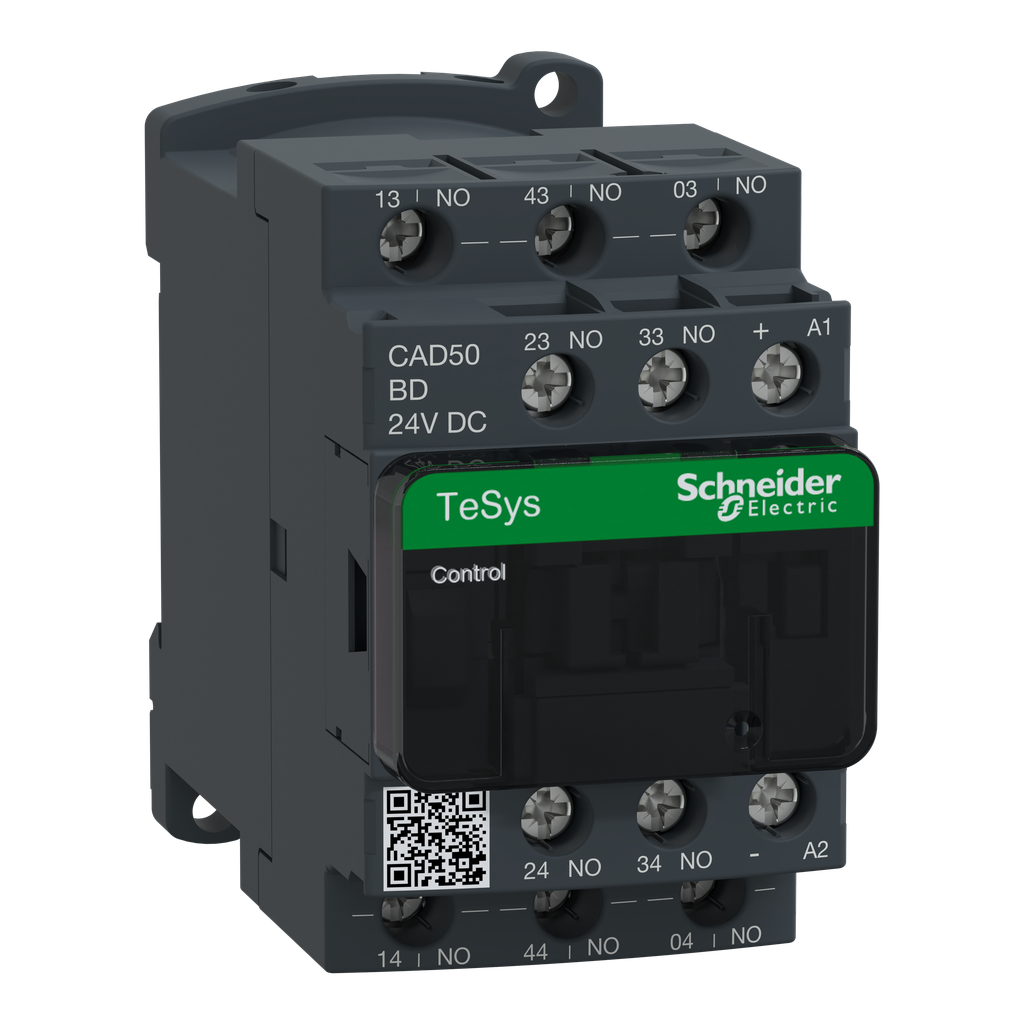

Schneider Electric CAD50BD Square D 24 VDC 10 Amp 5-Pole 5NO IEC Control Relay

Product Description

Schneider Electric CAD50BD is a control relay with five normally open contacts. This relay operates at 24 volts DC and provides a maximum load of ten amps. It is suitable for controlling electrical equipment and operates without inrush consumption, enhancing energy efficiency.

• Five normally open contacts
• Rated for ten amps at 690 volts
• Compatible with screw clamp terminals

Product Highlights

Features high reliability and durability with a compact design, making it ideal for a variety of control applications. This relay operates efficiently in a temperature range of -40 to 60 degrees Celsius and supports rapid cycling at up to 180 cycles per minute.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: CAD50BD
• Voltage: 690 Volt
• Amperage: 10 Amp
• Contact Configuration: 5 NO
• Width: 45 mm
• Height: 77 mm
• Depth: 93 mm
• Weight: 1.28 lb
• Operating Temperature: -40 to 70 degrees C
