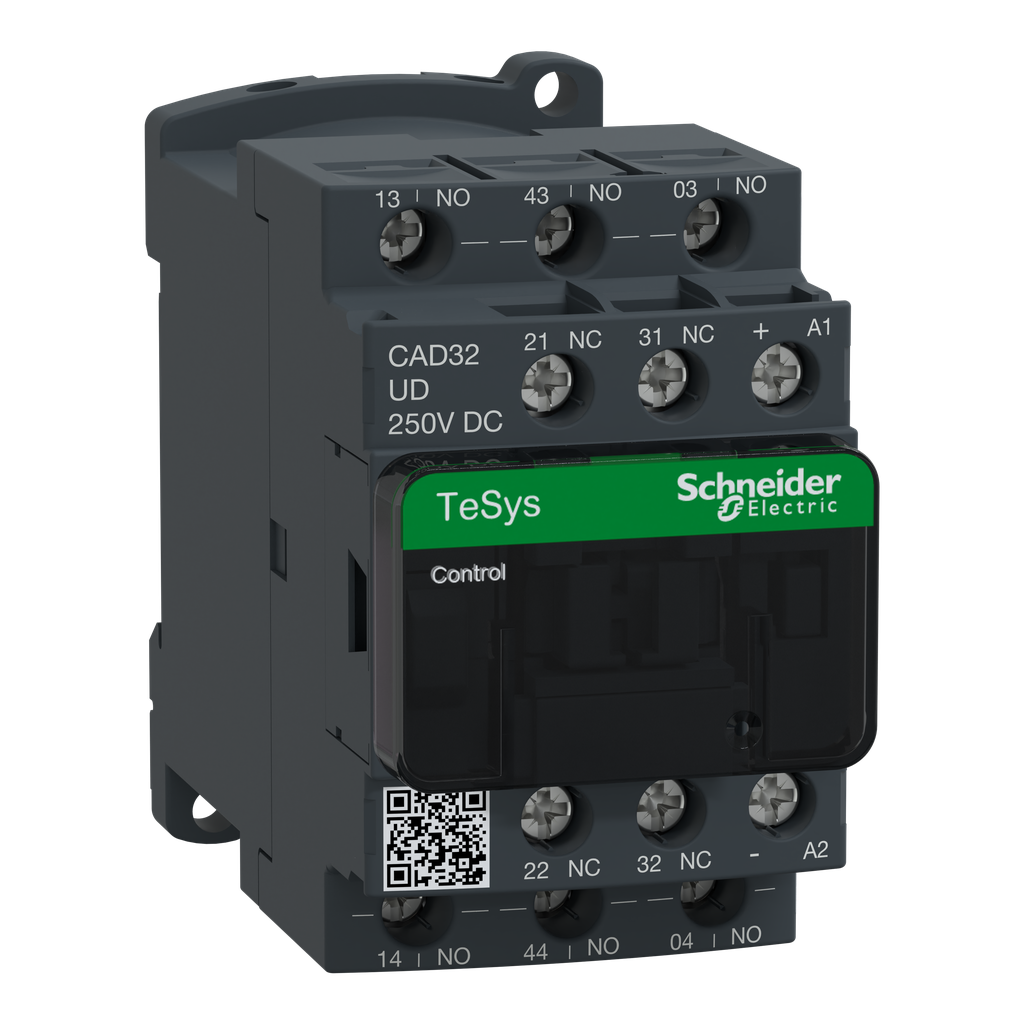

Schneider Electric CAD32UD Square D 250 VDC 10 Amp 5-Pole 3NO 2NC IEC Control Relay

Product Description

The Schneider Electric CAD32UD is a TeSys D control relay designed for use in control circuits. It features five contacts, including three normally open (NO) and two normally closed (NC). This relay supports a maximum of ten amps and is rated for a voltage of six hundred ninety volts. The CAD32UD is suitable for AC-15 and DC-13 applications, making it ideal for controlling electromagnetic loads. The relay can operate on a control circuit of two hundred fifty volts DC. It connects via screw clamp terminals, making installation straightforward.

• 5 contacts: 3 NO and 2 NC
• Rated for 10A/690V with a 250V DC control circuit
• Compact size for easy installation on DIN rails

Product Highlights

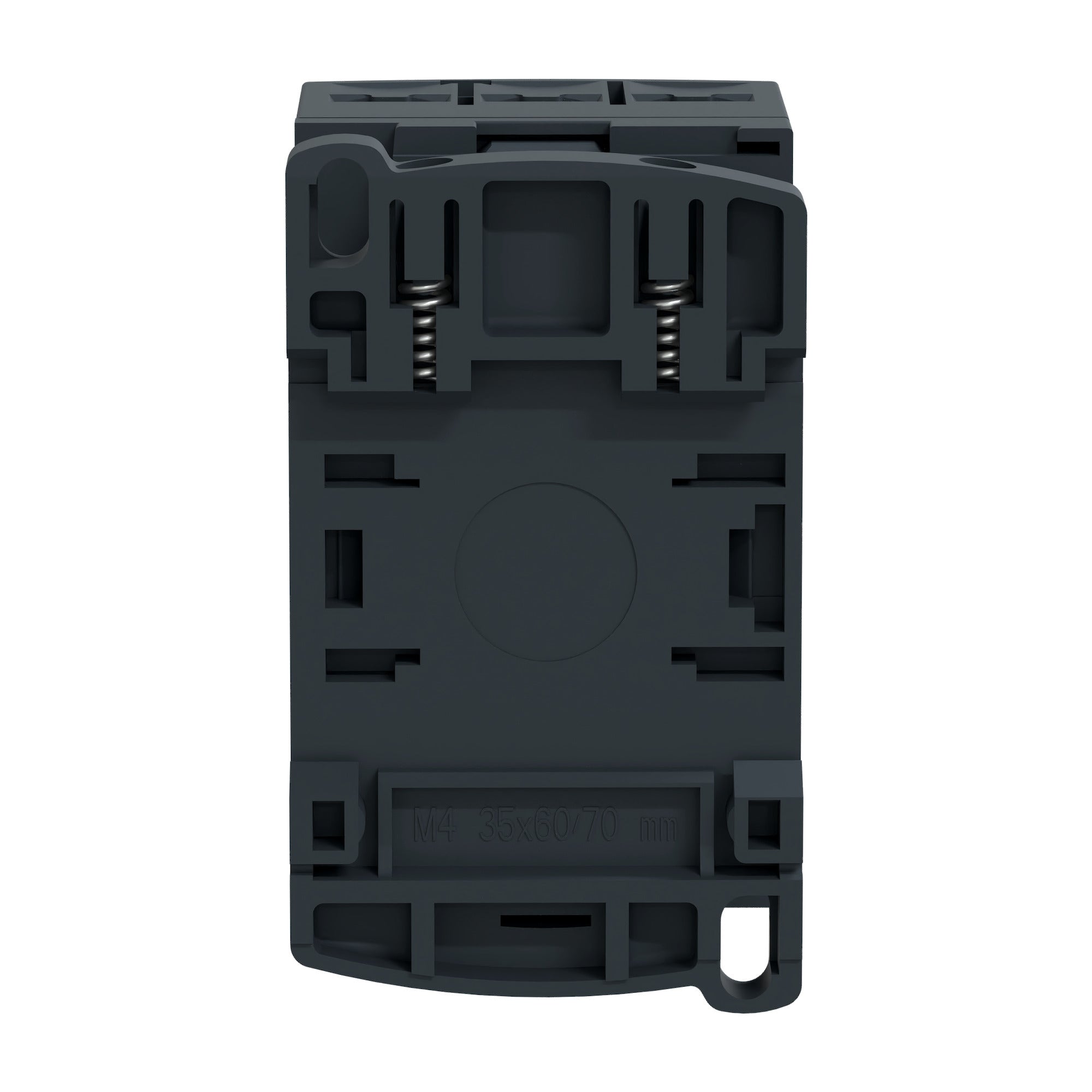

This relay is built for high reliability and can handle operating rates of up to one hundred eighty cycles per minute. It operates effectively in ambient temperatures ranging from negative forty to sixty degrees Celsius. The CAD32UD's compact design, only 45 millimeters wide, allows it to fit snugly on standard 35 millimeter DIN rails or be fixed using screws.

Product Information

Standard Information

• Catalog Number: CAD32UD
• Brand: Schneider Electric

Technical Specifications

• Type: Control relay
• Voltage: 690 Volt
• Amperage: 10 Amp AT <= 60 °C
• Operating Cycles: 180 cyc/min
• Contact Configuration: 3 NO + 2 NC
• Enclosure: IP2X FRONT FACE CONFORMING TO VDE 0106
• Country of Origin: France
• Warranty Length: 18 months
