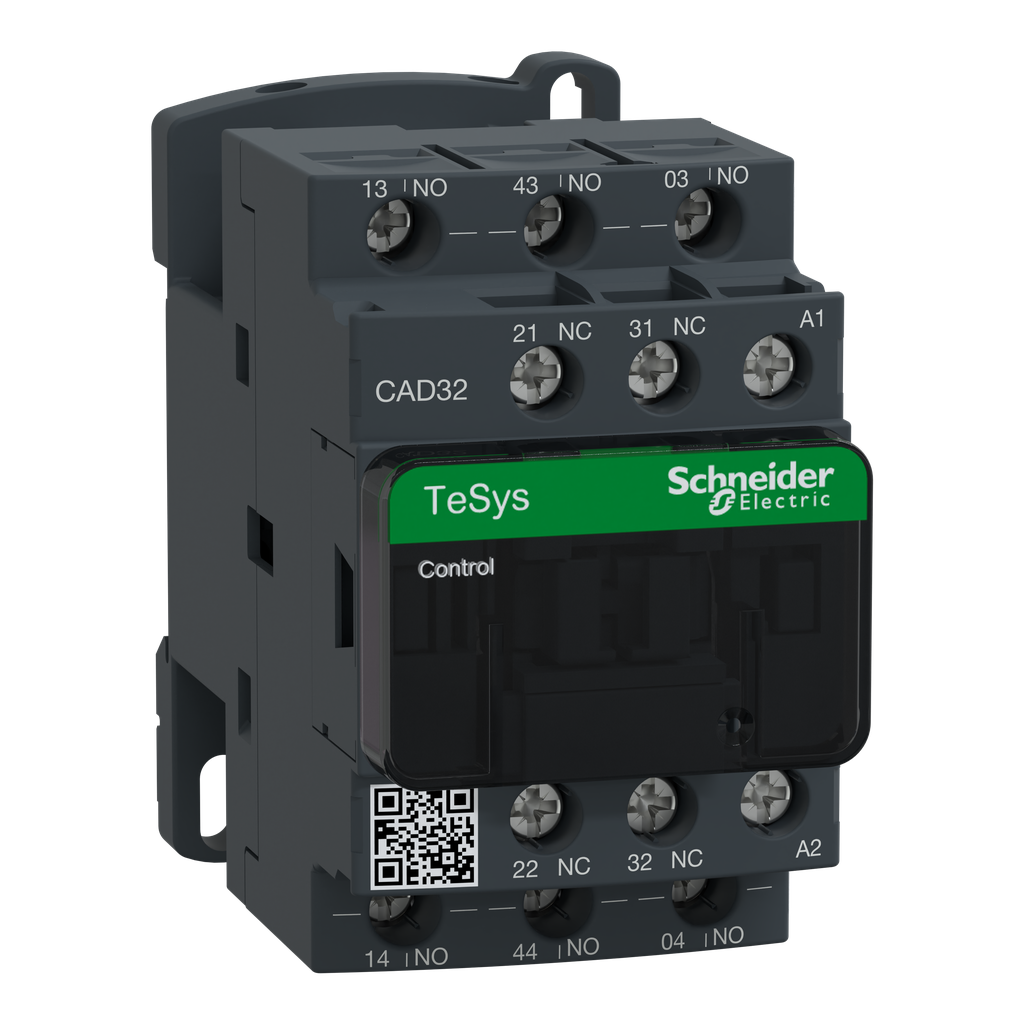

Schneider Electric CAD32U7 Square D Control Relay 240 VAC 10 Amp 5-Pole

Product Description

Schneider Electric CAD32U7 is a control relay designed for managing electromagnetic loads. This model features five contacts with three normally open (3NO) and two normally closed (2NC) configurations. It handles a maximum voltage of six hundred ninety volts and a current of ten amps. The CAD32U7 operates on a 240V alternating current circuit, ensuring versatile applications in various control systems.

• Control circuit rated for 10A at 240V AC
• High operating rate of up to 180 cycles per minute
• Compact design fits standard DIN rail installations

Product Highlights

This control relay is ideal for use in control circuits within industrial automation systems. Its multi-standard certification guarantees compliance with regulatory requirements, enhancing reliability across diverse applications.

Product Information

Standard Information

• Catalog Number: CAD32U7
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Control relay
• Voltage: 690 Volt
• Amperage: 10 Amp at temperatures up to 60 degrees Celsius
• Operating Temperature: -40 to 70 degrees Celsius
• Width: 45 mm
• Depth: 84 mm
• Height: 77 mm
• Weight: 1.28 lb
• Country of Origin: Mexico
• Warranty Length: 18 months
