Schneider Electric CAD32T7 Square D 220 VDC 10 Amp 5-Pole 3NO 2NC IEC Control Relay

Product Description

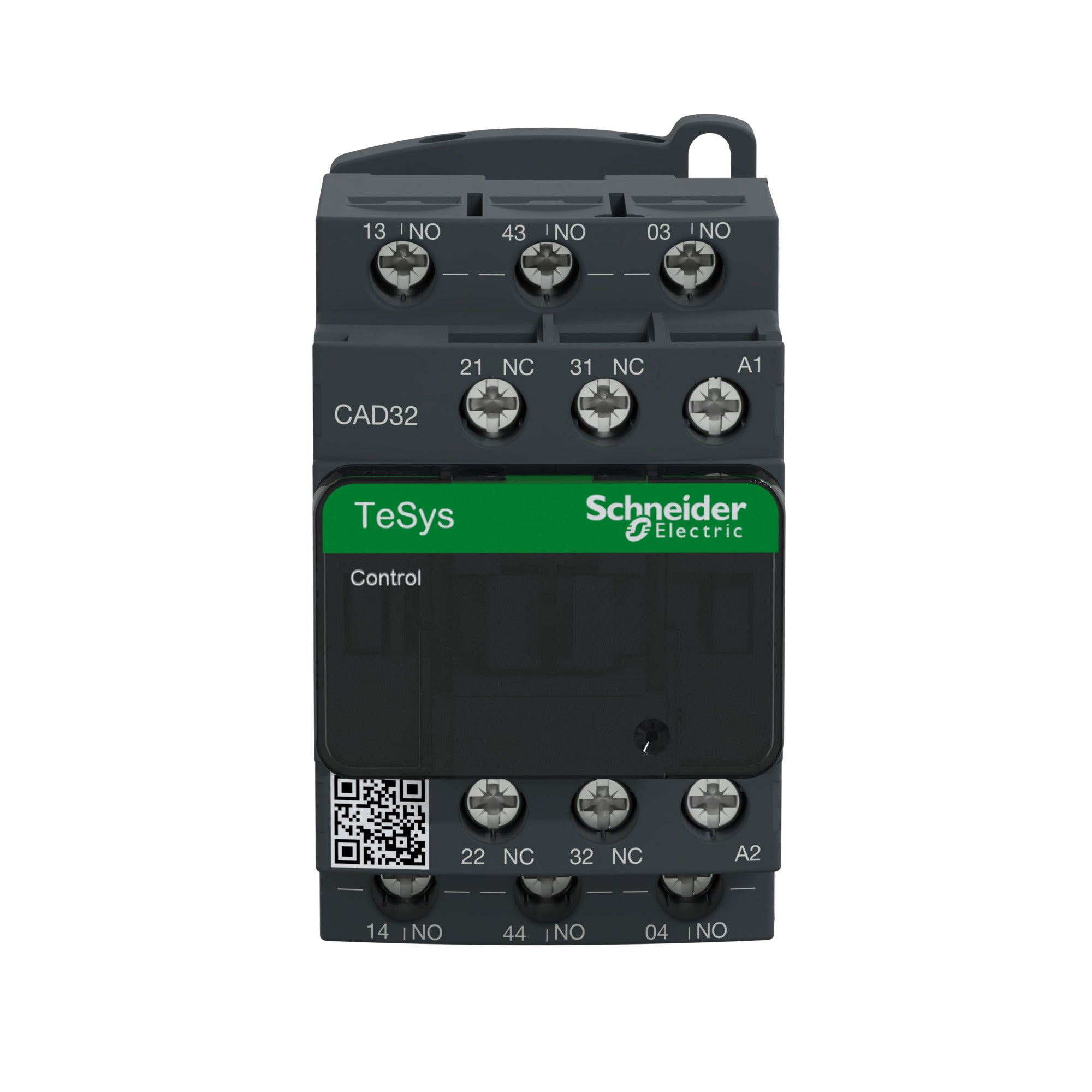

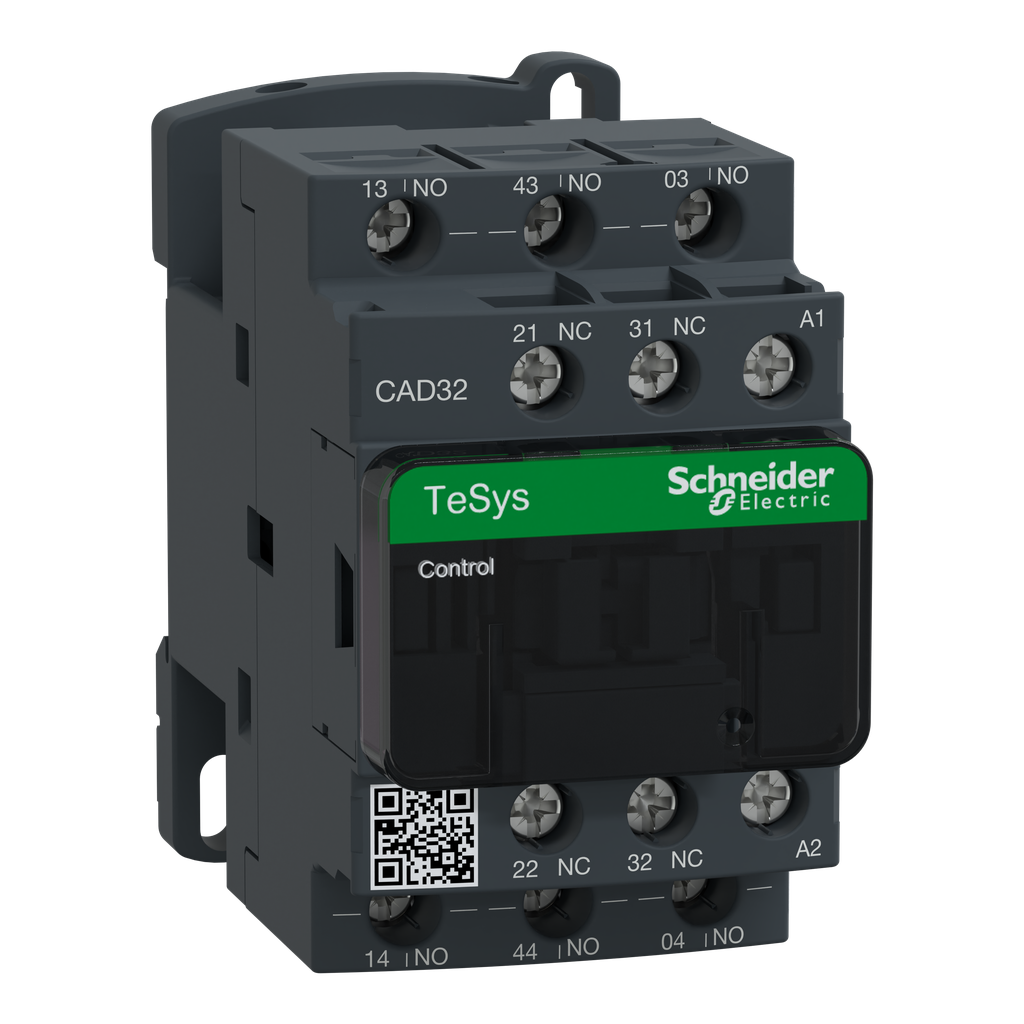

Schneider Electric CAD32T7 is a control relay featuring five contacts with three normally open and two normally closed configurations. Rated for ten amps at six hundred ninety volts, this relay is designed for the control of electromagnetic loads under AC-15 and DC-13 standards. It operates on a four hundred eighty-volt alternating current control circuit and connects through screw clamp terminals. This model can manage high operating rates of up to one hundred eighty cycles per minute and is effective in ambient temperatures ranging from negative forty to sixty degrees Celsius.

• 5 contacts (3 normally open, 2 normally closed)
• Rated for 10 amps at 690 volts
• Compatible with 480V 50/60Hz AC control systems

Product Highlights

This control relay is compact, at 45 millimeters wide, and can easily clip onto a 35 millimeter DIN rail or be secured by screws. It meets multiple standards including IEC, UL, CSA, CCC, EAC, and Marine certifications. Additionally, it is recognized as a Green Premium product compliant with RoHS and REACh regulations.

Product Information

Standard Information

• Catalog Number: CAD32T7
• Brand: Schneider Electric

Technical Specifications

• Depth: 84 mm
• Width: 45 mm
• Height: 77 mm
• Weight: 1.28 lb
• Voltage: 690 Volt
• Amperage: 10 Amp AT <= 60 °C
• Contact Configuration: 3 NO + 2 NC
• Operating Temperature: -40 to 70 °C
