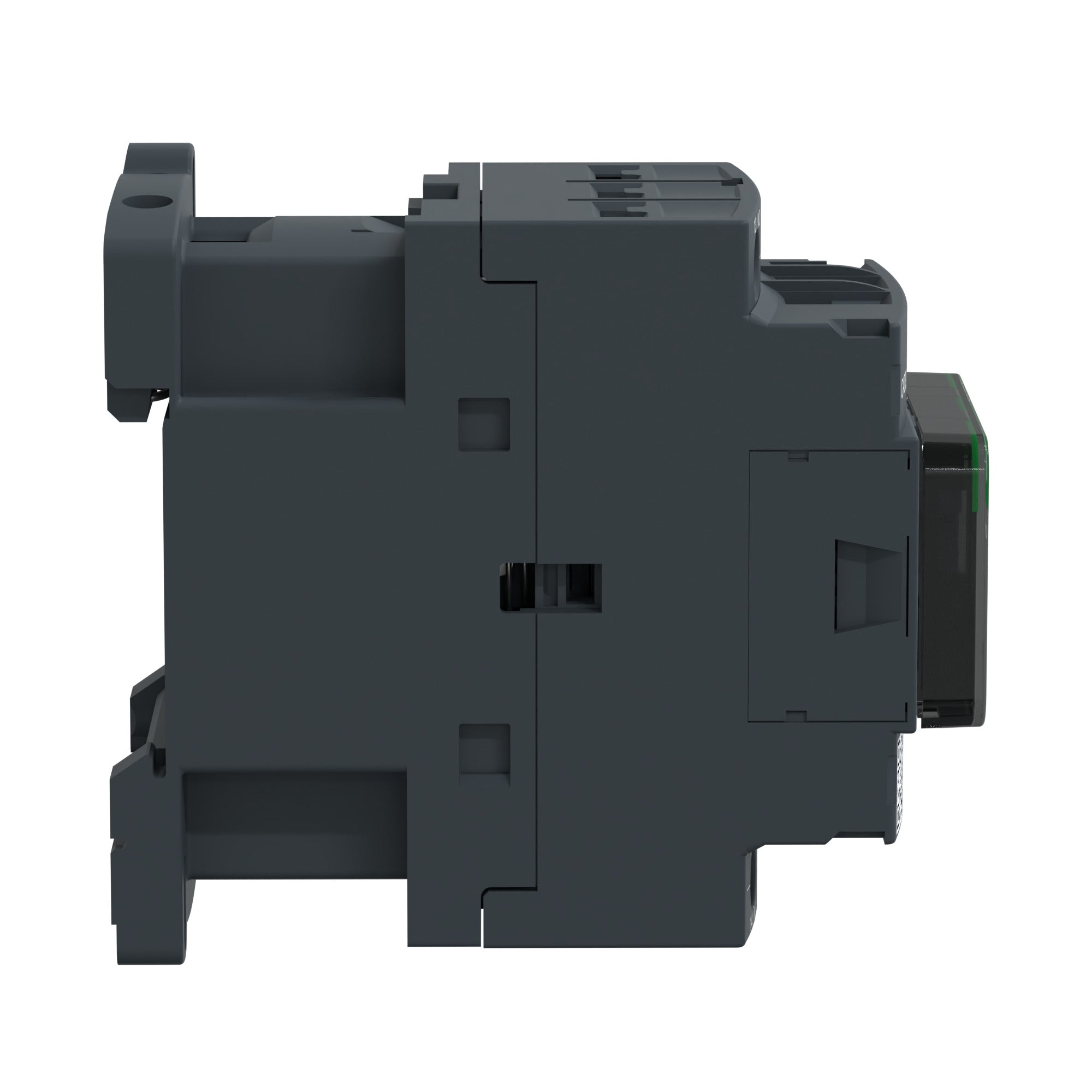

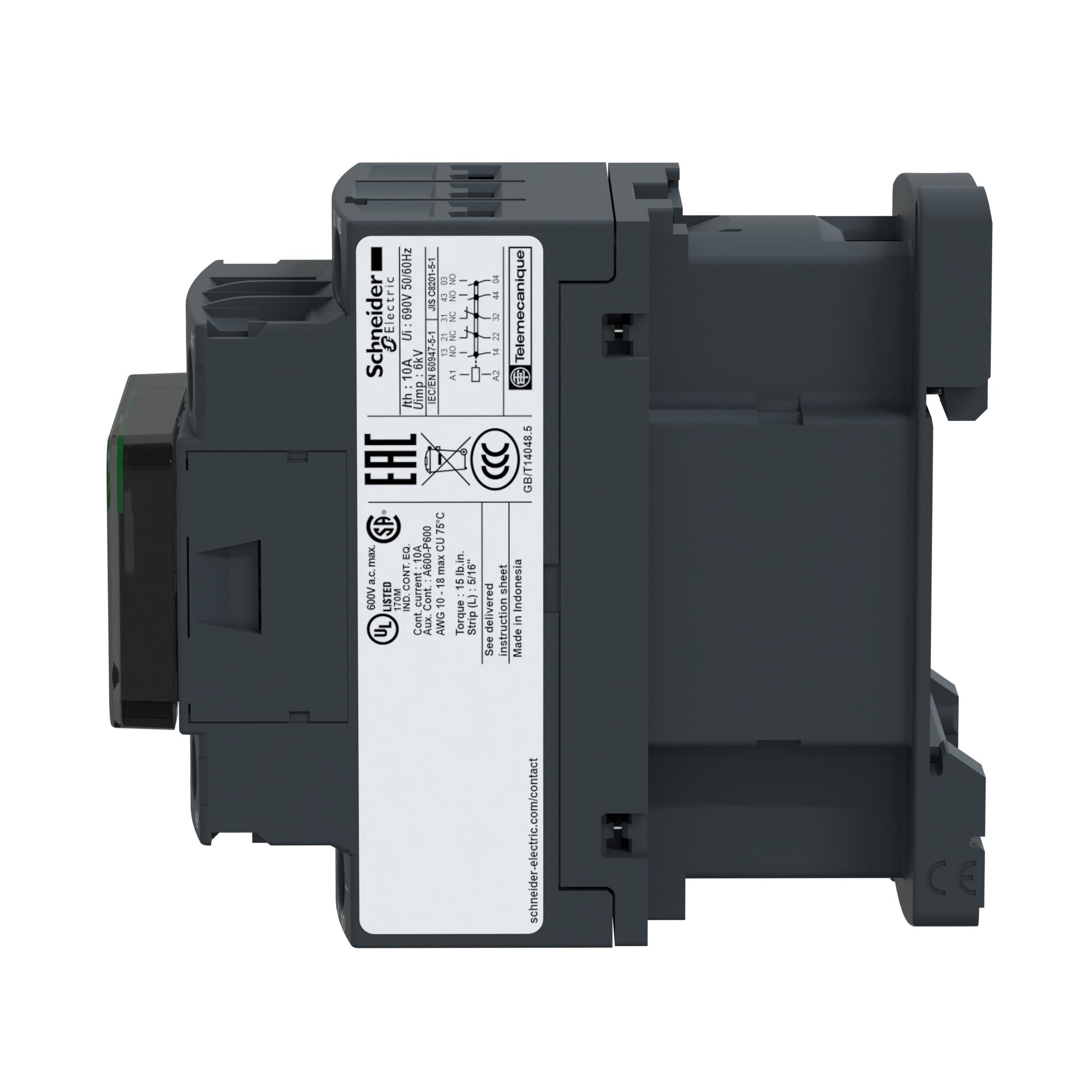

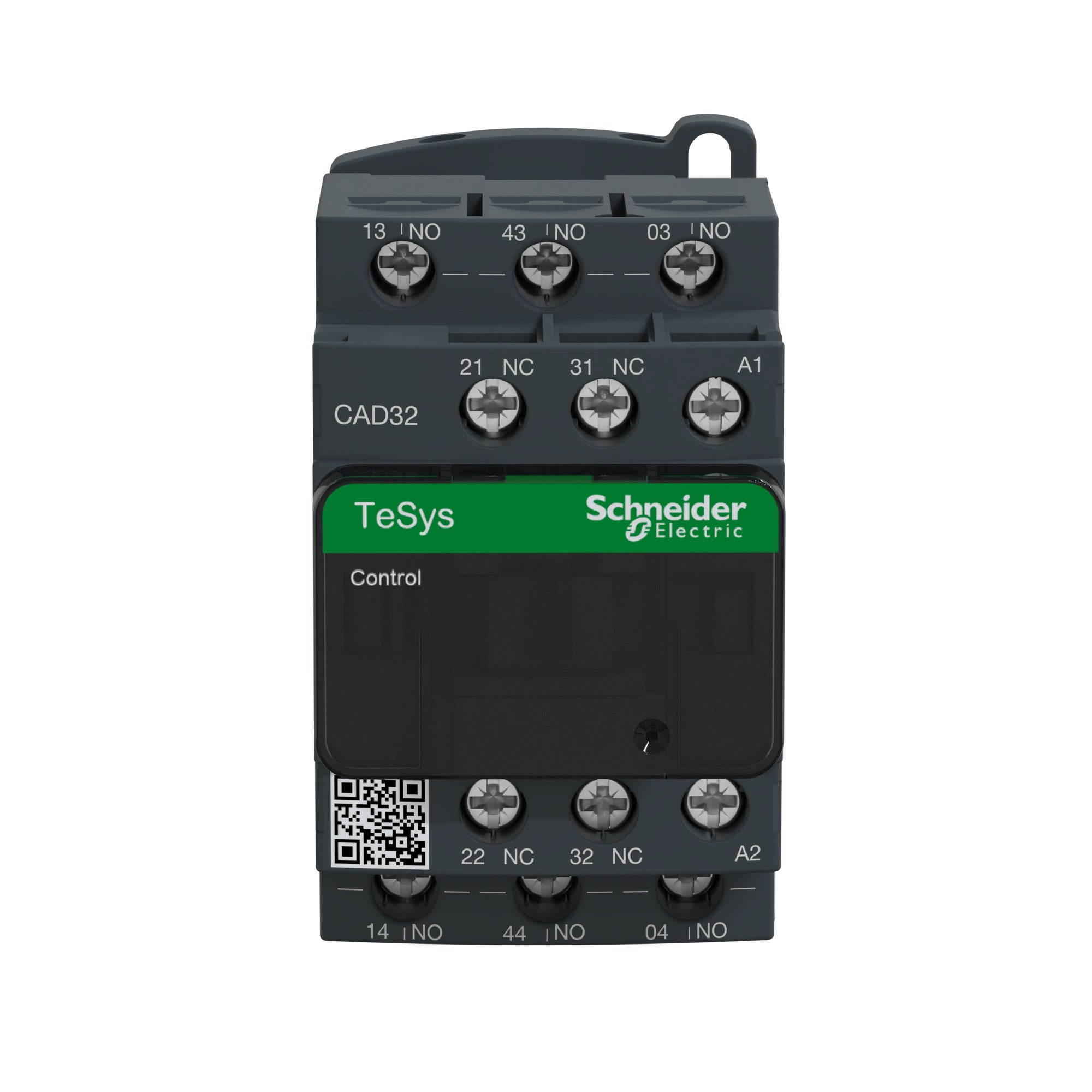

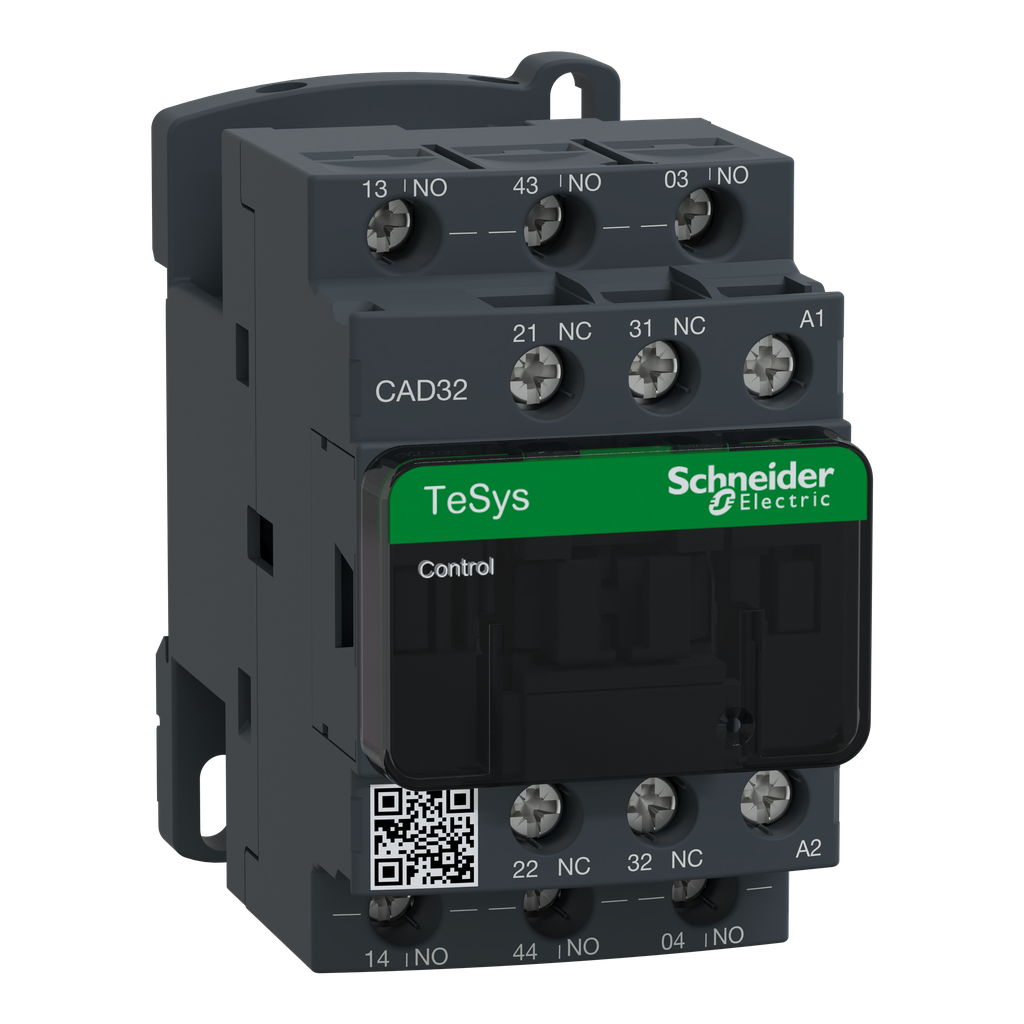

Schneider Electric CAD32P7 TeSys Deca control relay - 3 NO + 2 NC - 690 V - 230 V AC standard coil

Product Description

The Schneider Electric CAD32P7 is a TeSys Deca control relay. It features five contacts with three normally open and two normally closed. The relay operates at ten amps and up to six hundred ninety volts. It is designed for electromagnetic load control in AC-15 and DC-13 environments. This relay requires a control circuit of two hundred thirty volts at fifty or sixty hertz. It connects via screw clamp terminals. The product can handle high operating frequencies, capable of processing up to one hundred eighty cycles per minute. The CAD32P7 is built for ambient temperatures ranging from negative forty to sixty degrees Celsius, ensuring reliability and durability. This relay is compact, with a width of forty-five millimeters, and can be mounted on a thirty-five millimeter DIN rail or can be secured with screws. It meets multiple standards including IEC, UL, CSA, CCC, EAC, and Marine regulations, and is classified as a Green Premium product in accordance with RoHS and REACh standards.

• Five contacts: 3 NO + 2 NC
• Compact design for easy mounting
• Reliable operation within a wide temperature range

Product Highlights

Designed for reliable control of electromagnetic loads. Features high durability and compliance with various industry standards.

Product Information

Standard Information

• Catalog Number: CAD32P7
• Brand: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Amperage: 10 Amp AT <= 60 ?C
• Operating Temperature: -40 to 70 degrees C
• Depth: 84 mm
• Width: 45 mm
• Height: 77 mm
• Weight: 1.28 lb
• Warranty: 18 months
