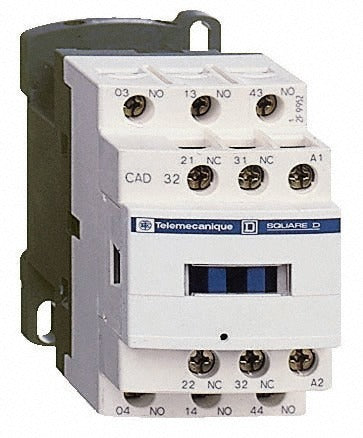

Schneider Electric CAD32GD Control Relay 2NC 3NO 125V

Product Description

The SCHNEIDER ELECTRIC CAD32GD is a DC control relay configured with 2 normally closed (NC) and 3 normally open (NO) contacts, rated for a 125 VDC control circuit. Control relays in this class serve as auxiliary switching devices within motor control centers, panel boards, and industrial control circuits. They allow a low-energy control signal to switch multiple load circuits simultaneously. Licensed electricians and industrial controls technicians install this relay in applications where multiple contact configurations are needed from a single control input. The DC control circuit type makes it suited for battery-backed or DC-powered control systems.

The CAD32GD fits into control panel builds and retrofits where a reliable multi-contact auxiliary relay is required. Its 2NC plus 3NO contact arrangement supports interlock, seal-in, and status-signaling functions common in motor starters, PLCs, and relay logic circuits. The DC standard control circuit type is typical in telecom facilities, uninterruptible power supply systems, battery rooms, and industrial sites running 125 VDC control buses.

Key Features

• 2 normally closed and 3 normally open contact configuration for flexible switching logic
• 125 VDC control circuit rating suitable for DC-powered control panels and battery-backed systems
• DC Standard control circuit type for compatibility with DC bus control architectures
• Compact form factor at 2 inches height, 3.6 inches width, and 4.4 inches length
• Single-unit packaging with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or direct-install auxiliary control relay for DC control circuit applications requiring a 2NC/3NO contact arrangement at 125 VDC.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control circuit before removing or installing the relay. Verify the control bus voltage matches the 125 VDC rating of the CAD32GD before energizing. Confirm contact assignments against the circuit schematic to avoid miswiring NC and NO poles.
