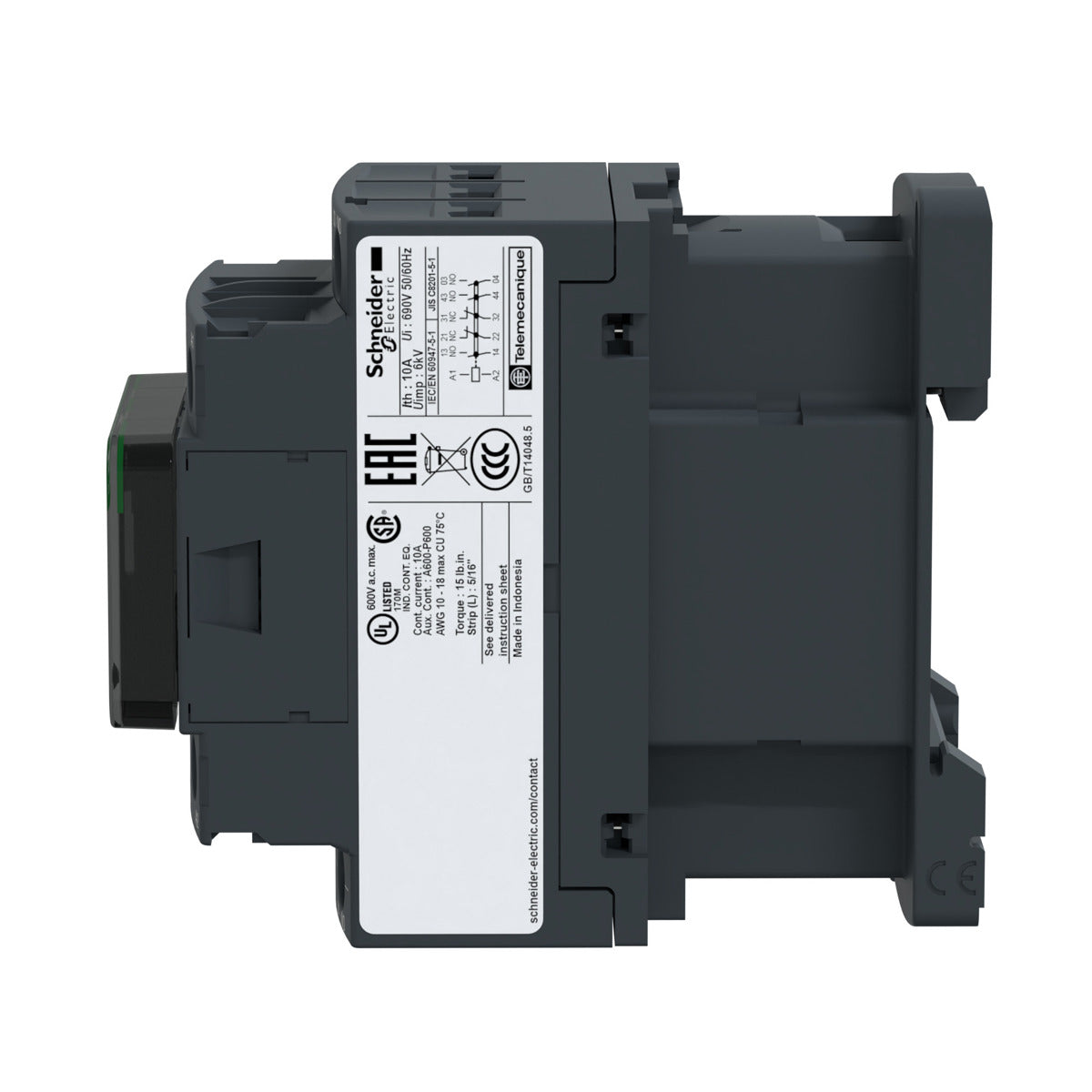

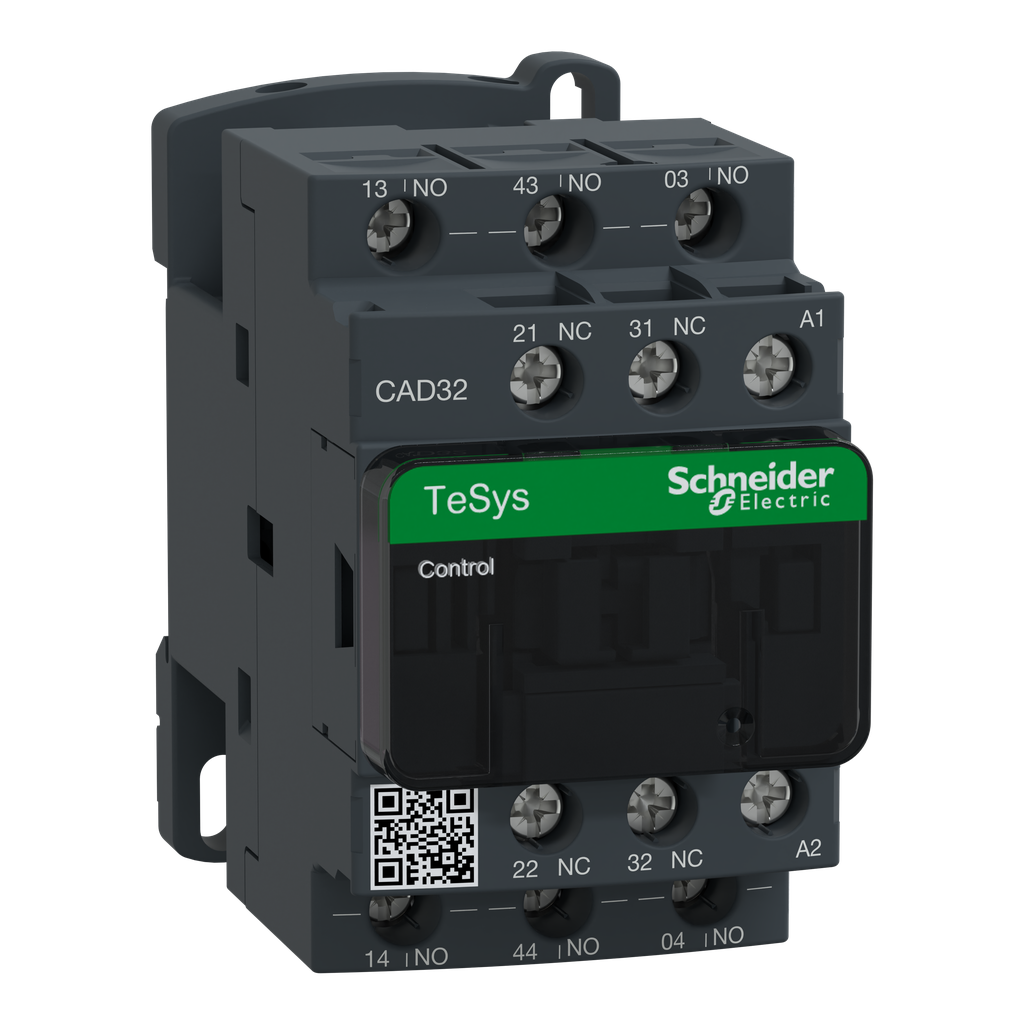

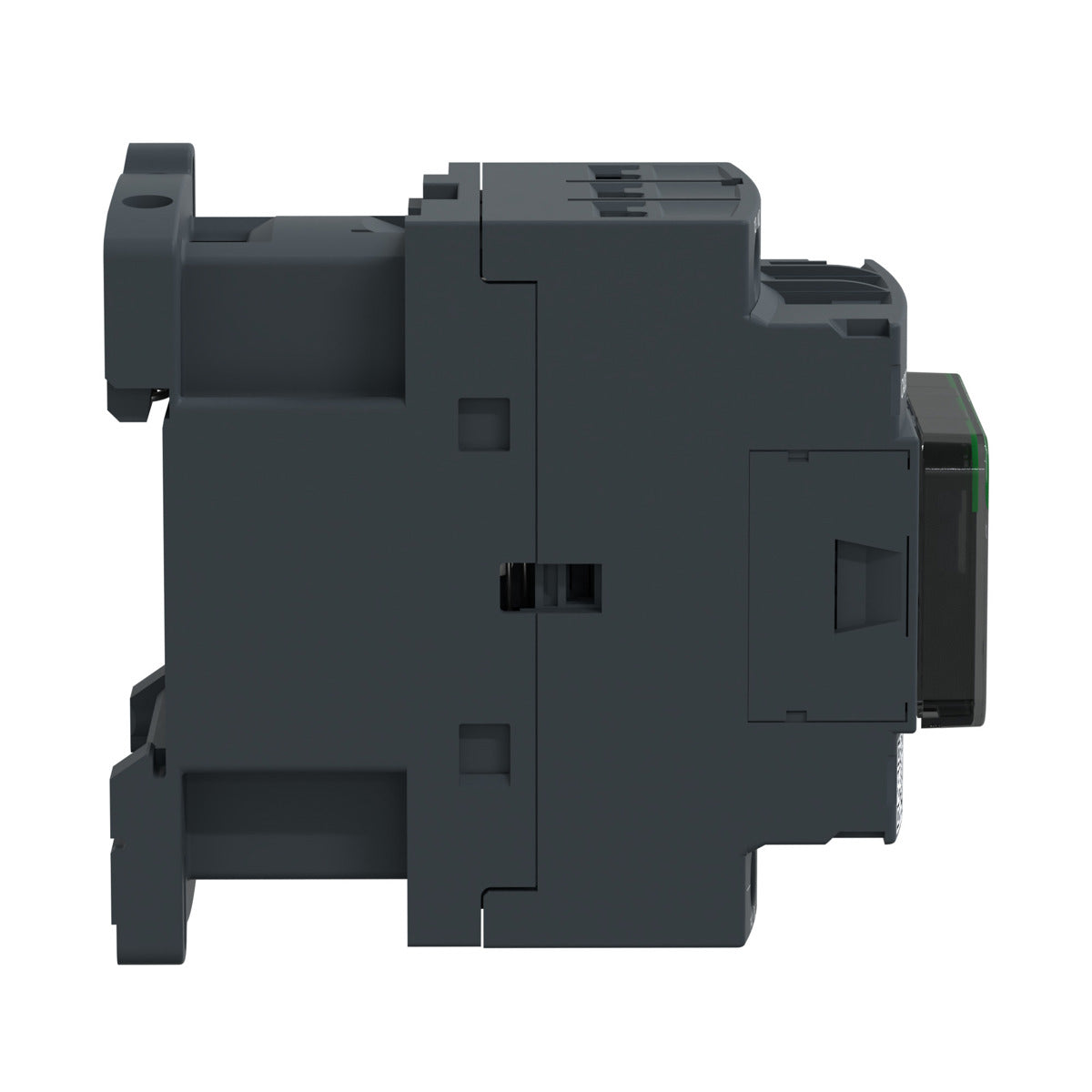

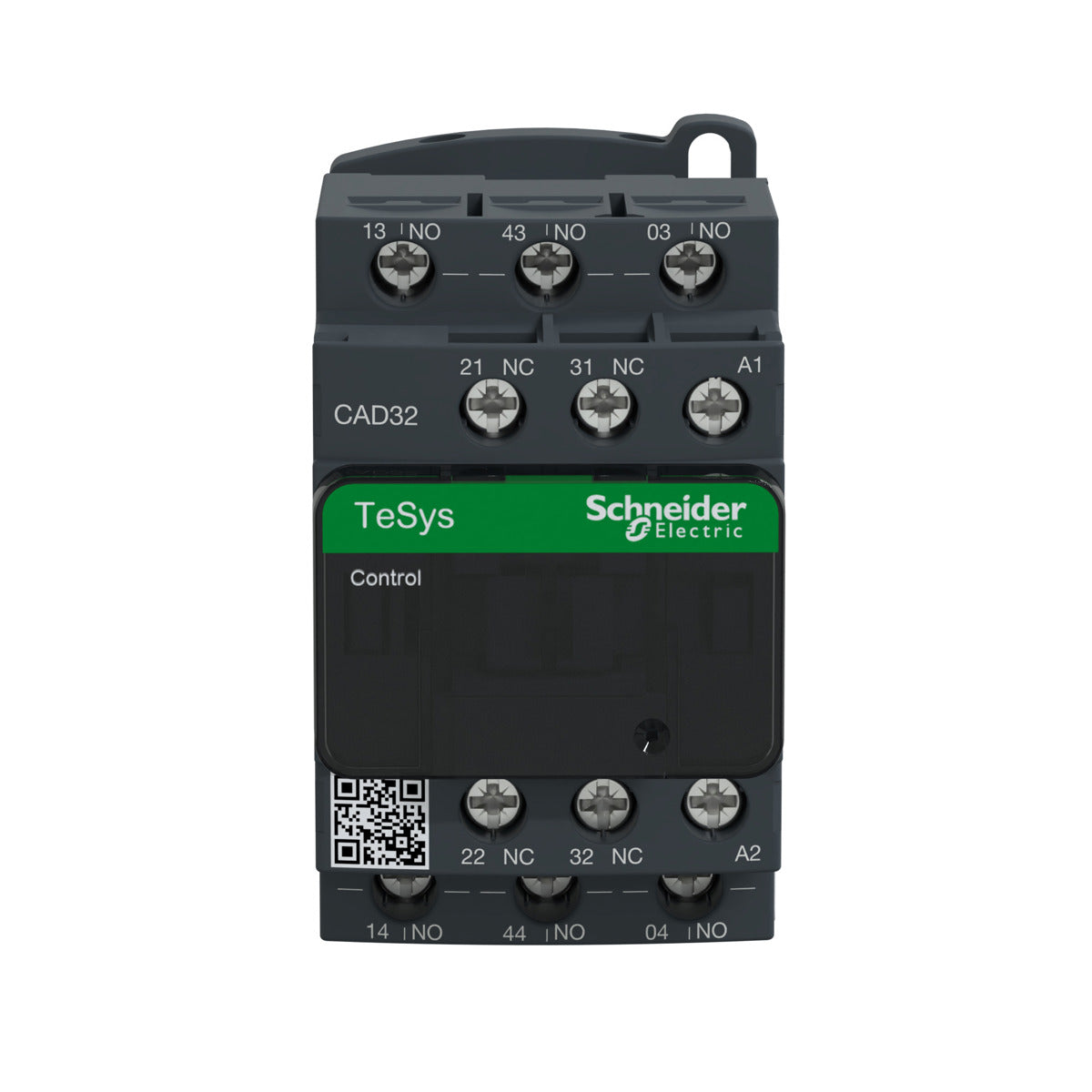

Schneider Electric CAD32F7 Square D 110 VAC 10 Amp 5-Pole 3NO 2NC IEC Control Relay

Product Description

The Schneider Electric CAD32F7 is a TeSys D control relay designed for applications involving electromagnetic loads. It has five contacts configured as three normally open and two normally closed. This relay operates on a control circuit of one hundred ten volts AC at fifty or sixty hertz. Designed for robust performance, it supports high operating rates up to one hundred eighty cycles per minute.

• Compatible with electrical loads AC-15/DC-13.
• Features screw clamp terminal connections.
• Ambient temperature rating from negative forty to sixty degrees Celsius.

Product Highlights

This product combines reliability and durability with a compact design suitable for DIN rail mounting. It adheres to multiple international standards, including IEC and UL, ensuring versatility in various applications.

Product Information

Standard Information

• Catalog Number: CAD32F7
• Brand: Schneider Electric

Technical Specifications

• Operating Voltage: 690 Volt
• Amperage: 10 Amp AT <= 60°C
• Weight: 1.28 lb
• Width: 1.77 inches
• Height: 3.03 inches
• Depth: 3.31 inches
• Contact Configuration: 3 NO + 2 NC
• Country of Origin: France
