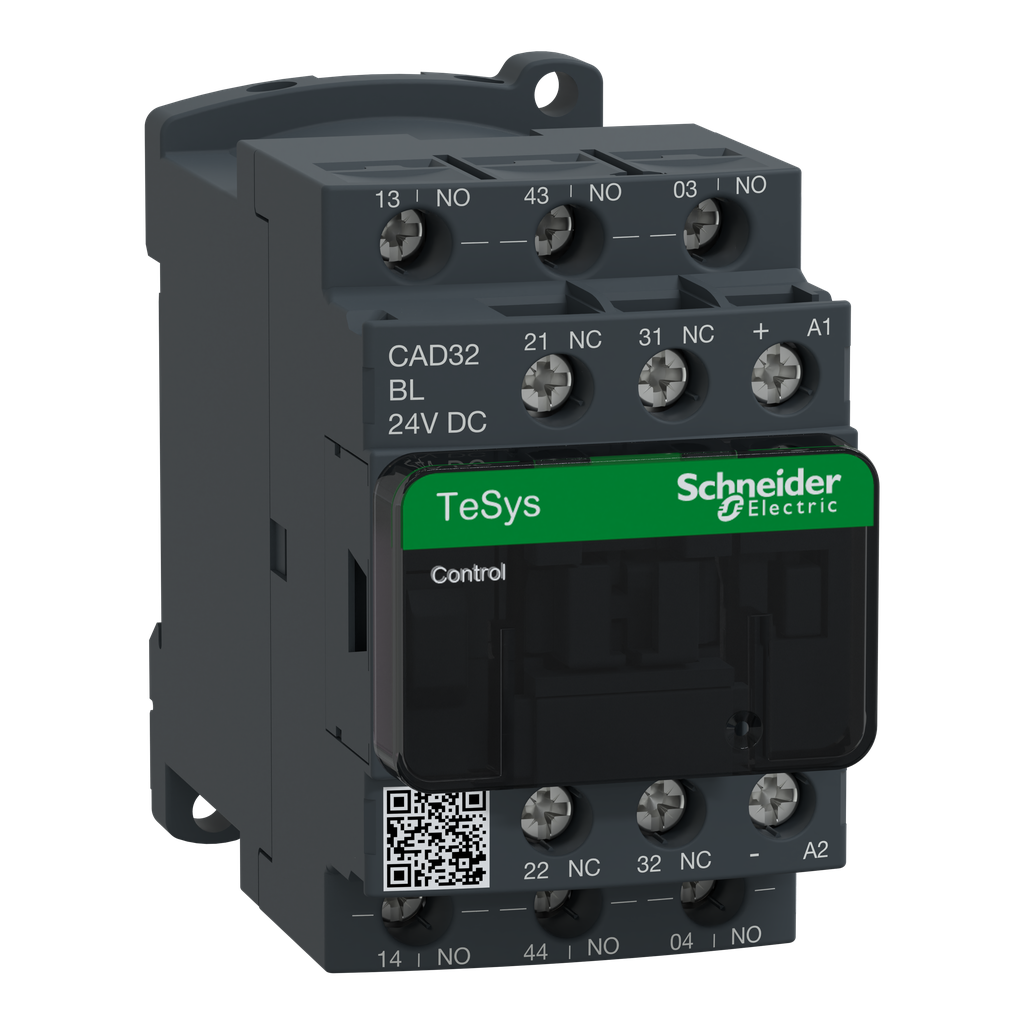

Schneider Electric CAD32BL TeSys Deca Control Relay 24 VDC 10 Amp 5-Pole 3NO 2NC

Product Description

Schneider Electric CAD32BL is a TeSys D control relay with five contacts configured as three normally open (NO) and two normally closed (NC). This relay operates with a voltage of twenty-four volt direct current (VDC) and handles currents up to ten ampere (A) at six hundred ninety volt (V). It is designed for controlling electromagnetic loads, suitable for applications such as AC-15 and DC-13.

• Low consumption control circuit with no inrush current.
• High reliability with operational rates up to one hundred eighty cycles per minute.
• Compatible with screw clamp terminals for easy installation.

Product Highlights

Designed with efficiency, the CAD32BL relay offers durability and meets various international standards, making it ideal for diverse industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: CAD32BL
• Voltage: 690 Volt
• Amperage: 10 Amp
• Contact Configuration: 3 NO + 2 NC
• Operating Temperature: -40 to 70 degrees Celsius
• Certifications: IEC, UL, CSA, CCC
• Operating Cycles: 180 cycles/minute
• Country of Origin: Indonesia
