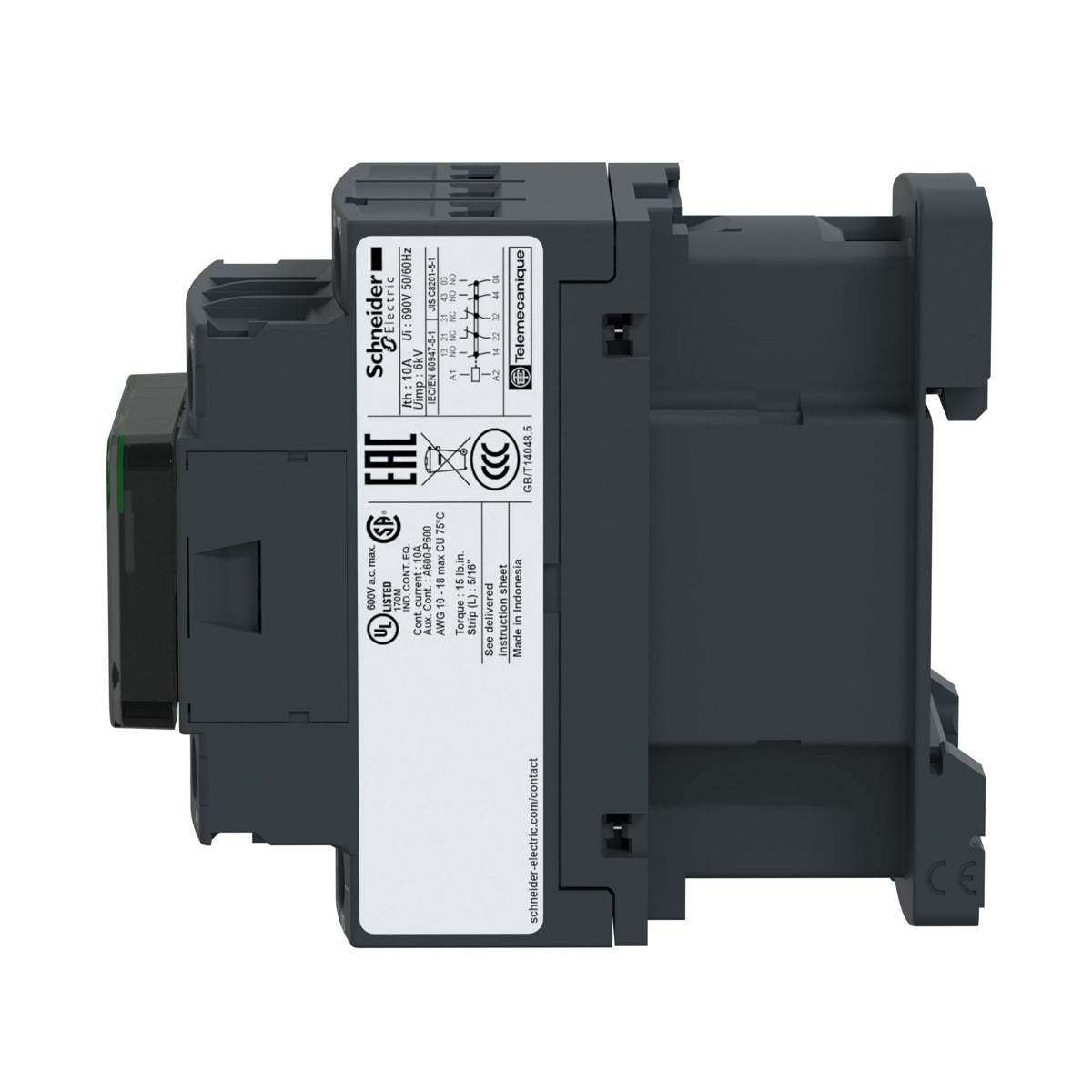

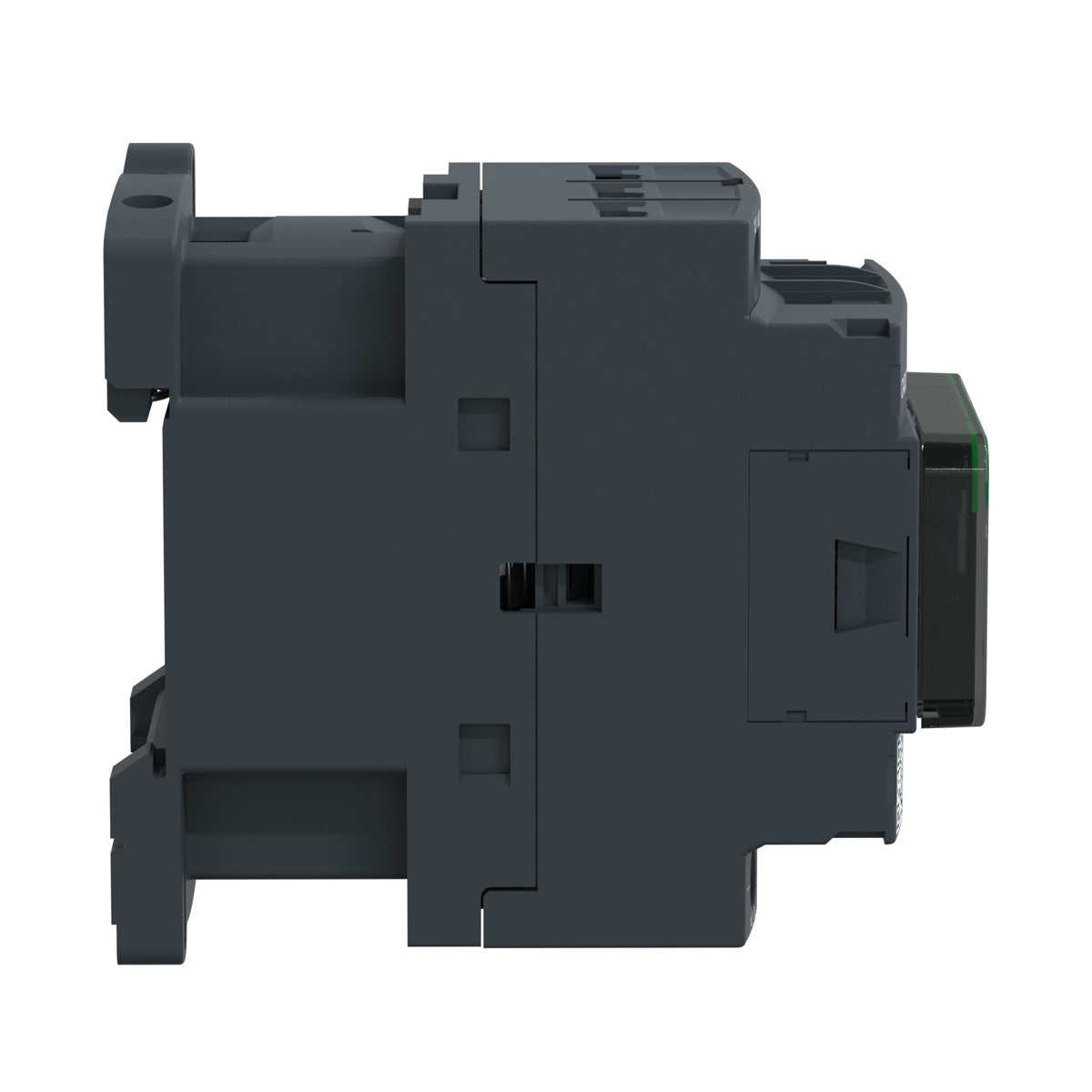

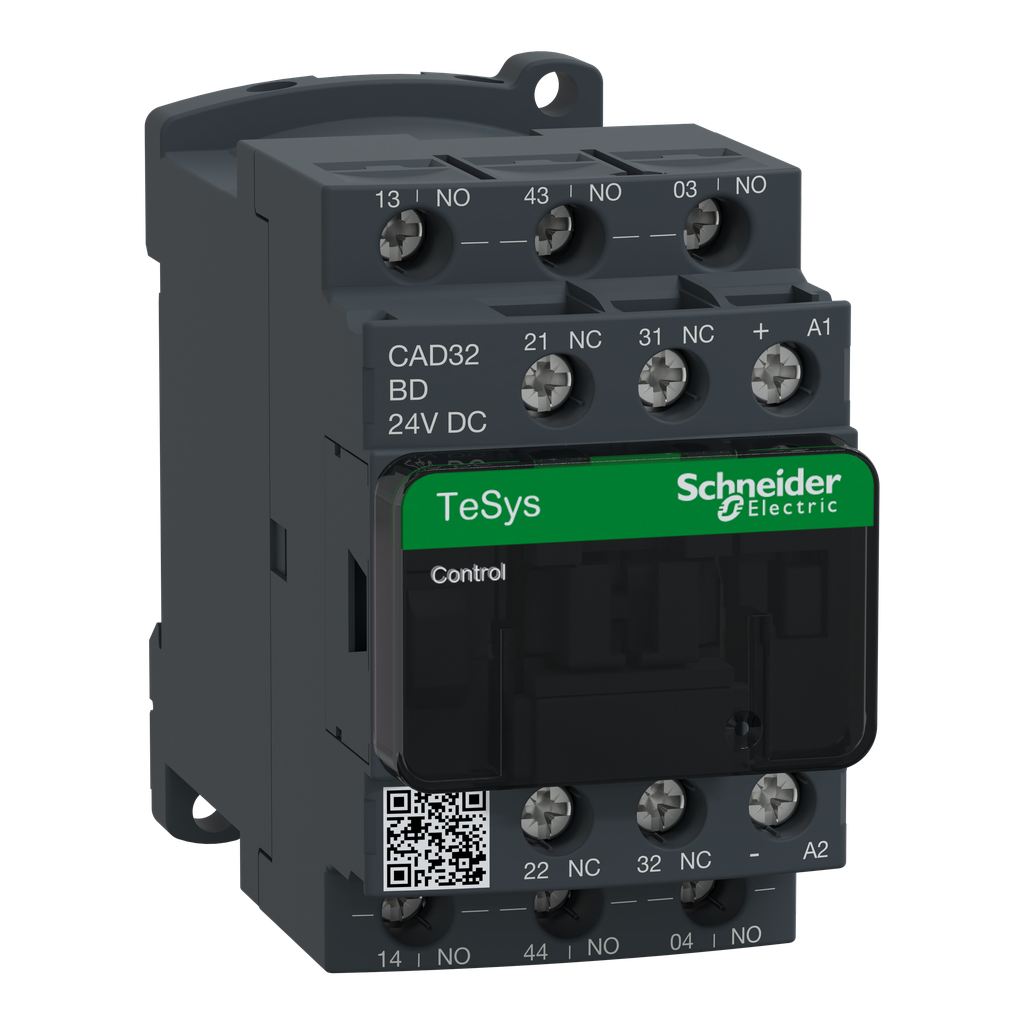

Schneider Electric CAD32BD Square D 24 VDC 10 Amp 5-Pole 3NO 2NC IEC Control Relay

Product Description

Schneider Electric CAD32BD is a control relay designed for control of electromagnetic loads. This relay features five contacts with three normally open and two normally closed. The CAD32BD operates at ten amps and six hundred ninety volts. The product supports a twenty-four volt DC control circuit with no inrush consumption, making it efficient for various applications. It includes a surge suppression device and allows connections via screw clamp terminals.

• Durable design with high reliability
• Designed for high operating rates up to one hundred eighty cycles per minute
• Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine)

Product Highlights

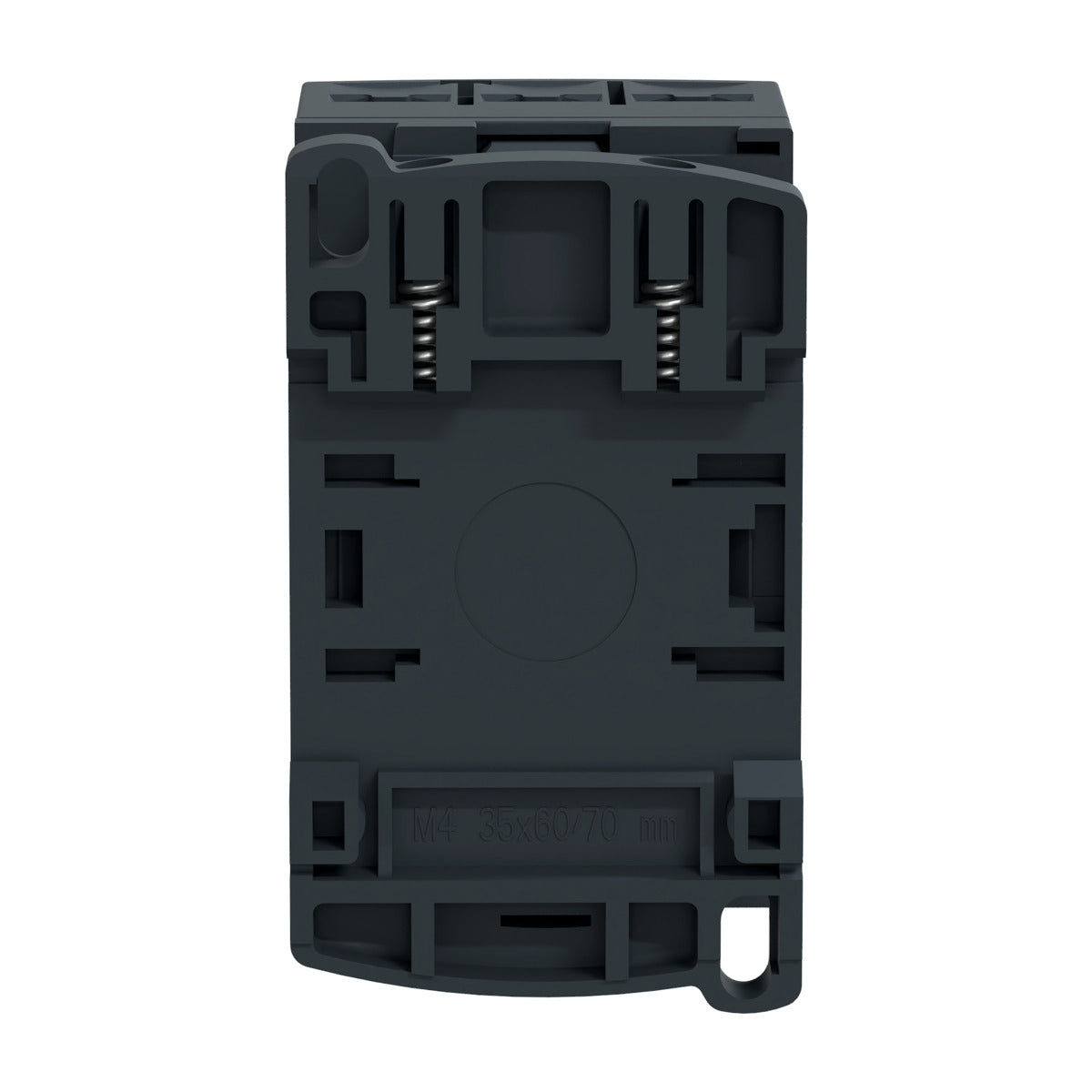

This control relay is compact and features a width of forty-five millimeters. It can be clipped onto a thirty-five millimeter DIN rail or secured by screws, providing flexibility in installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: CAD32BD
• Voltage: 690 Volt
• Amperage: 10 Amp
• Contact Configuration: 3 NO + 2 NC
• Operating Temperature: -40 to 70 degrees C
• Dimensions: 45 mm width, 93 mm depth, 77 mm height
• Weight: 1.28 lb
• Country of Origin: Indonesia
