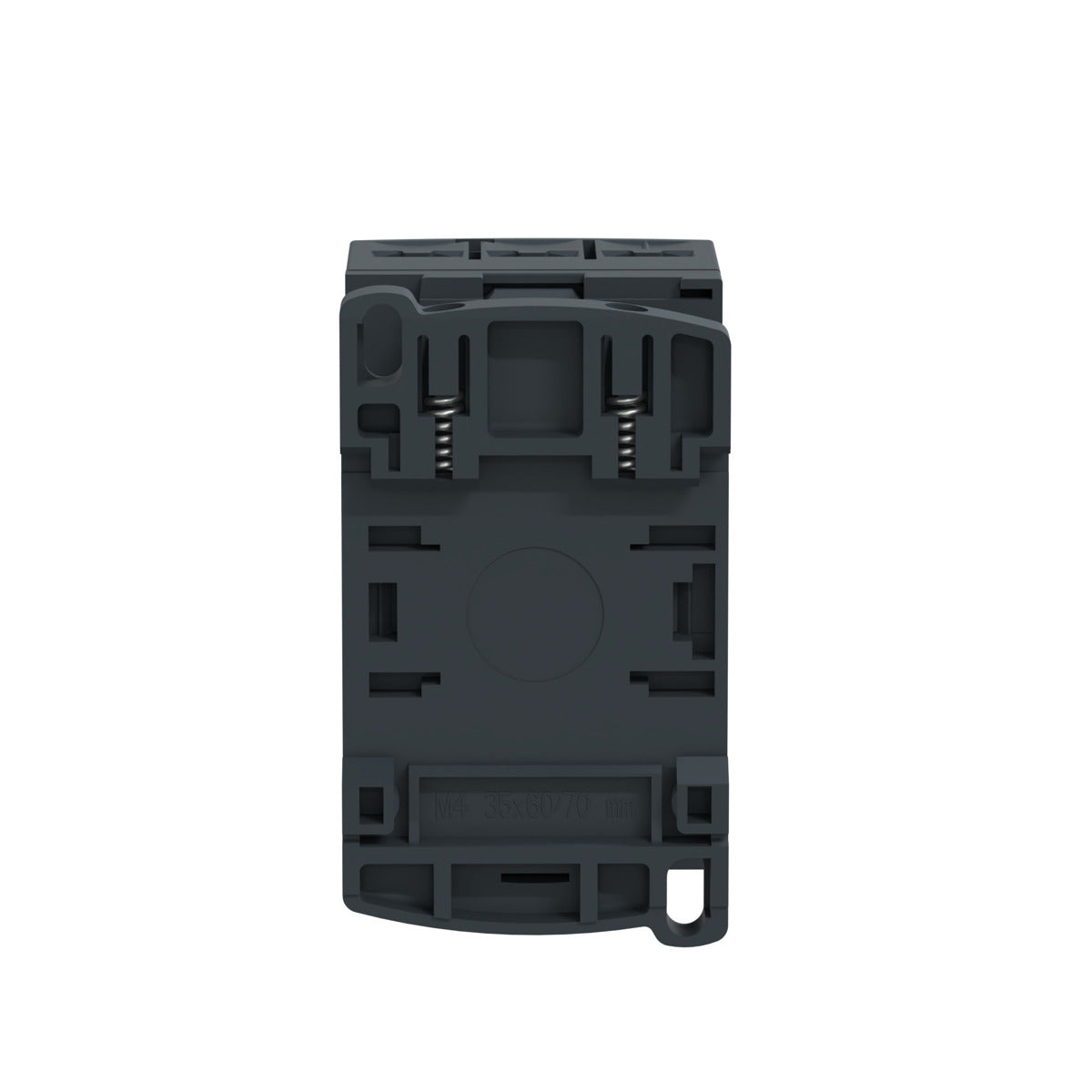

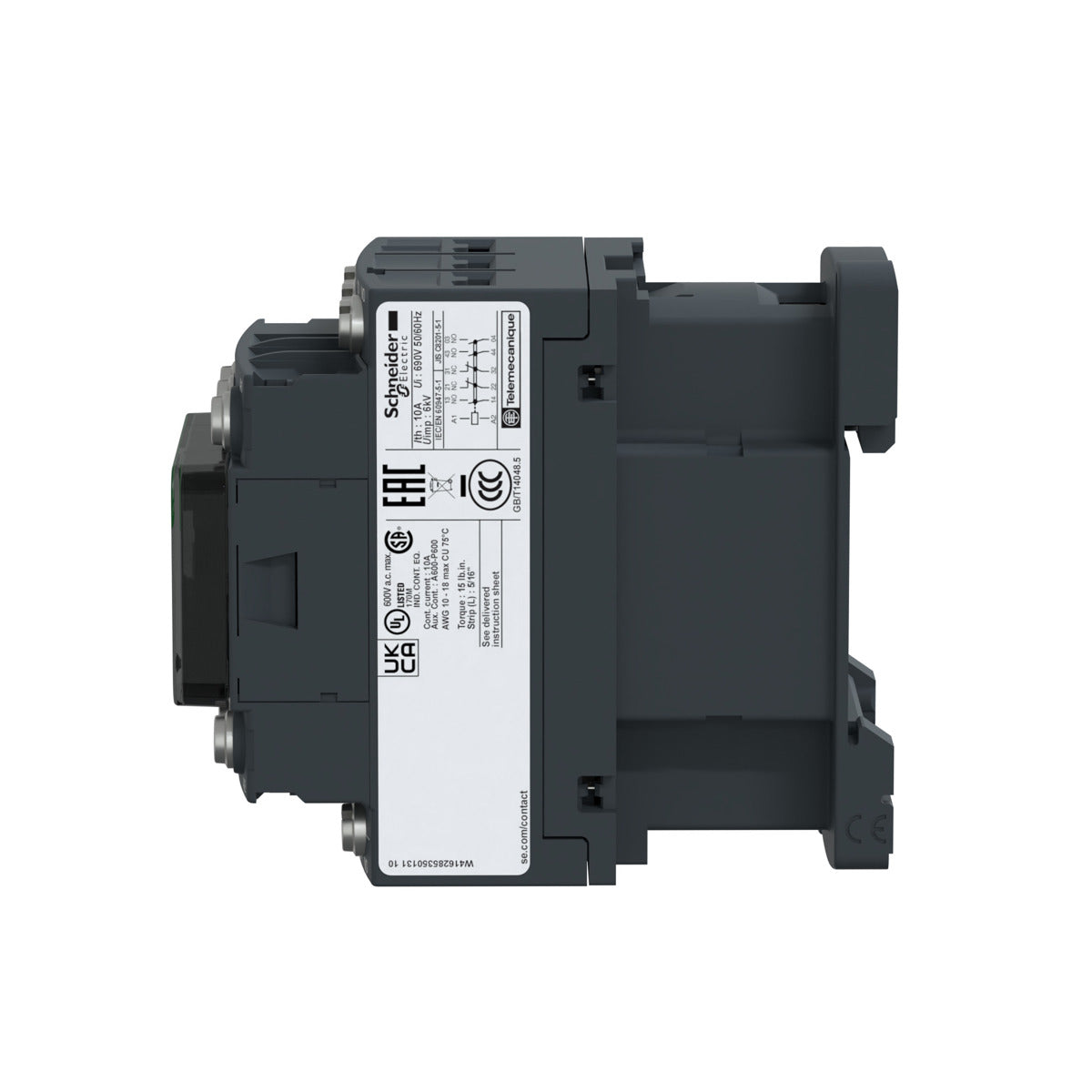

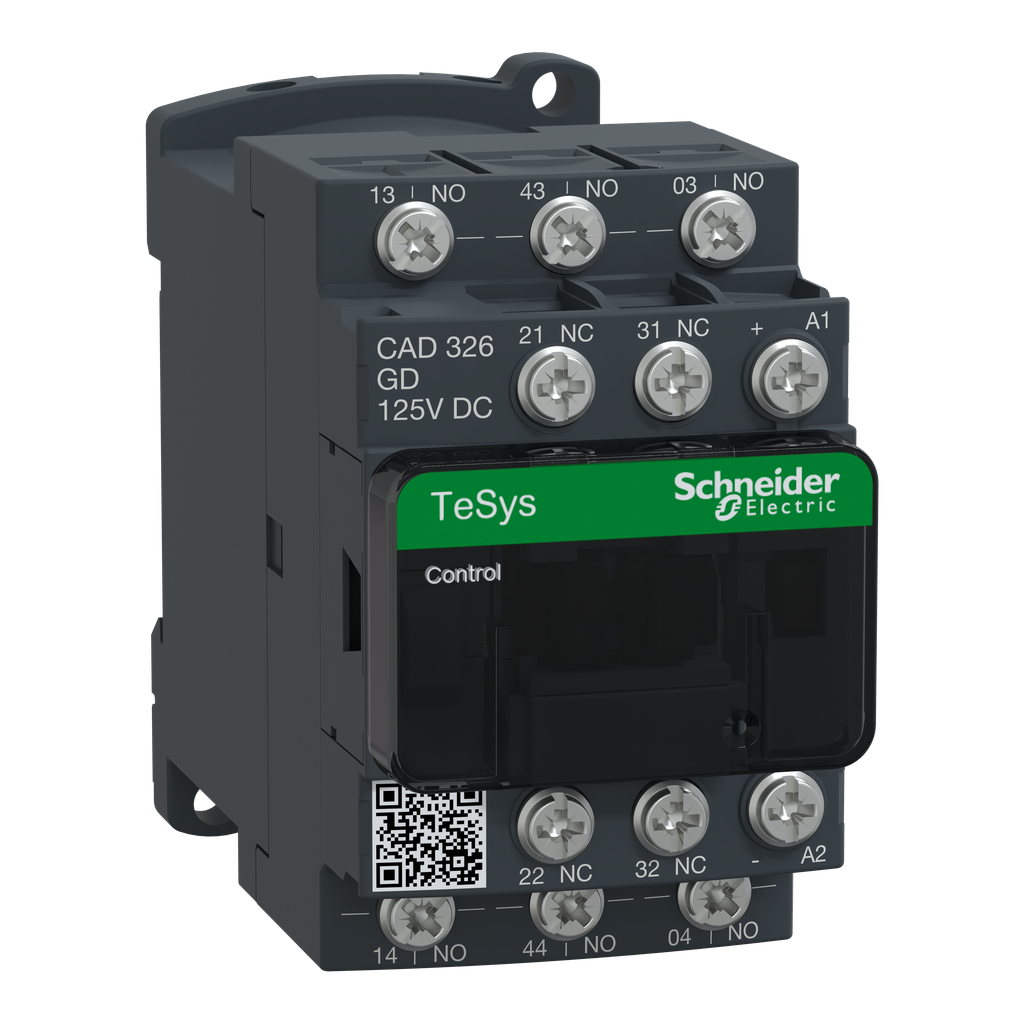

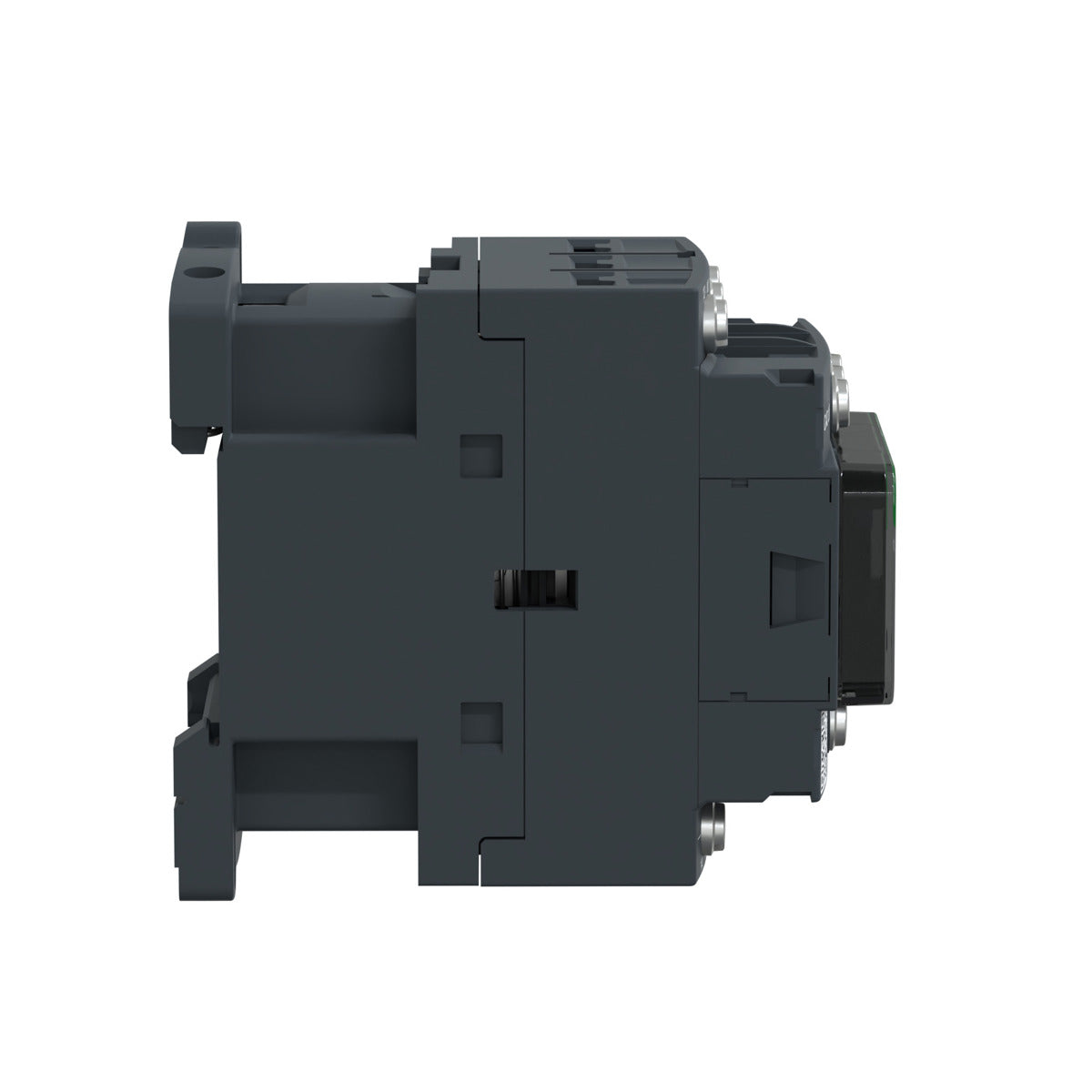

Schneider Electric CAD326GD TeSys Deca control relay - 10 Amp - 3 NO + 2 NC

Product Description

The Schneider Electric CAD326GD is a control relay designed for the management of electromagnetic loads. This relay has five contacts (three normally open and two normally closed) and supports up to ten amps at six hundred ninety volts. It operates a control circuit at one hundred twenty-five volts DC without inrush consumption. The product includes a surge suppression device and connects via lugs for ease of installation.

• Suitable for high-frequency operations up to one hundred eighty cycles per minute.
• Functions efficiently in temperatures ranging from negative forty to sixty degrees Celsius.
• Compact design allows for easy mounting on standard DIN rails.

Product Highlights

This control relay is certified for multiple standards including IEC, UL, CSA, and Marine applications, ensuring reliability across various environments.

Product Information

Standard Information

• Catalog Number: CAD326GD
• Brand: Schneider Electric

Technical Specifications

• Type: Control relay
• Voltage: 690 Volt
• Amperage: 10 Amp at or below sixty degrees Celsius
• Width: 1.77 inches
• Height: 3.03 inches
• Depth: 3.66 inches
• Weight: 1.28 lb
• Country of Origin: Indonesia
