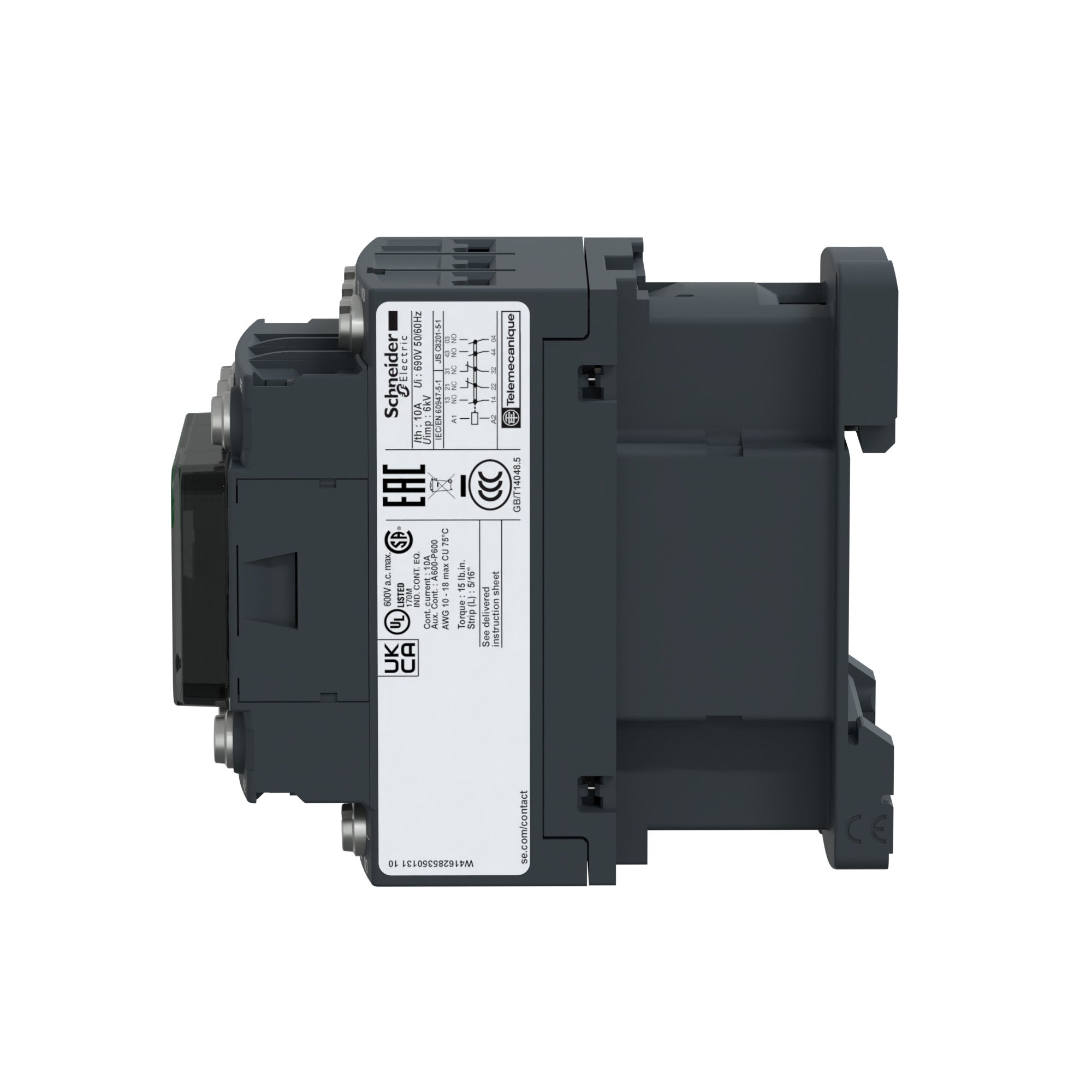

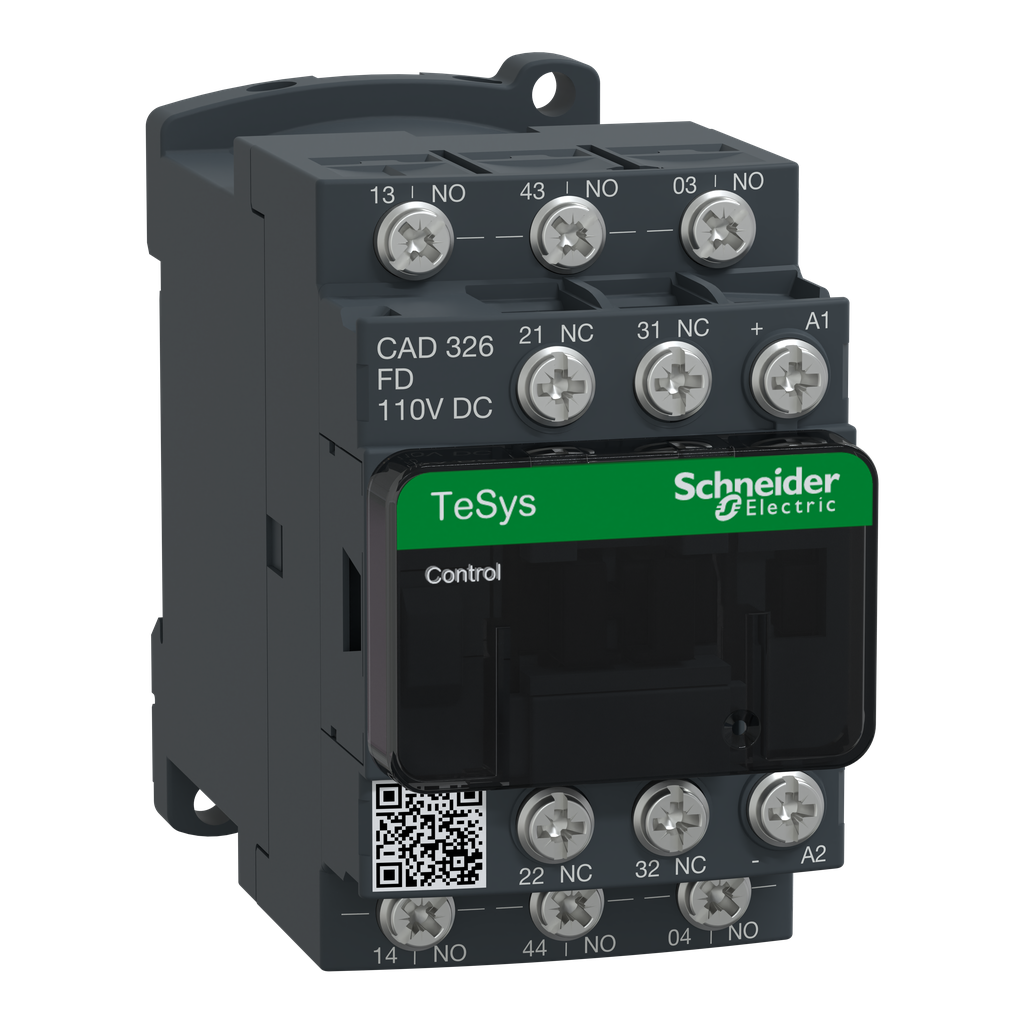

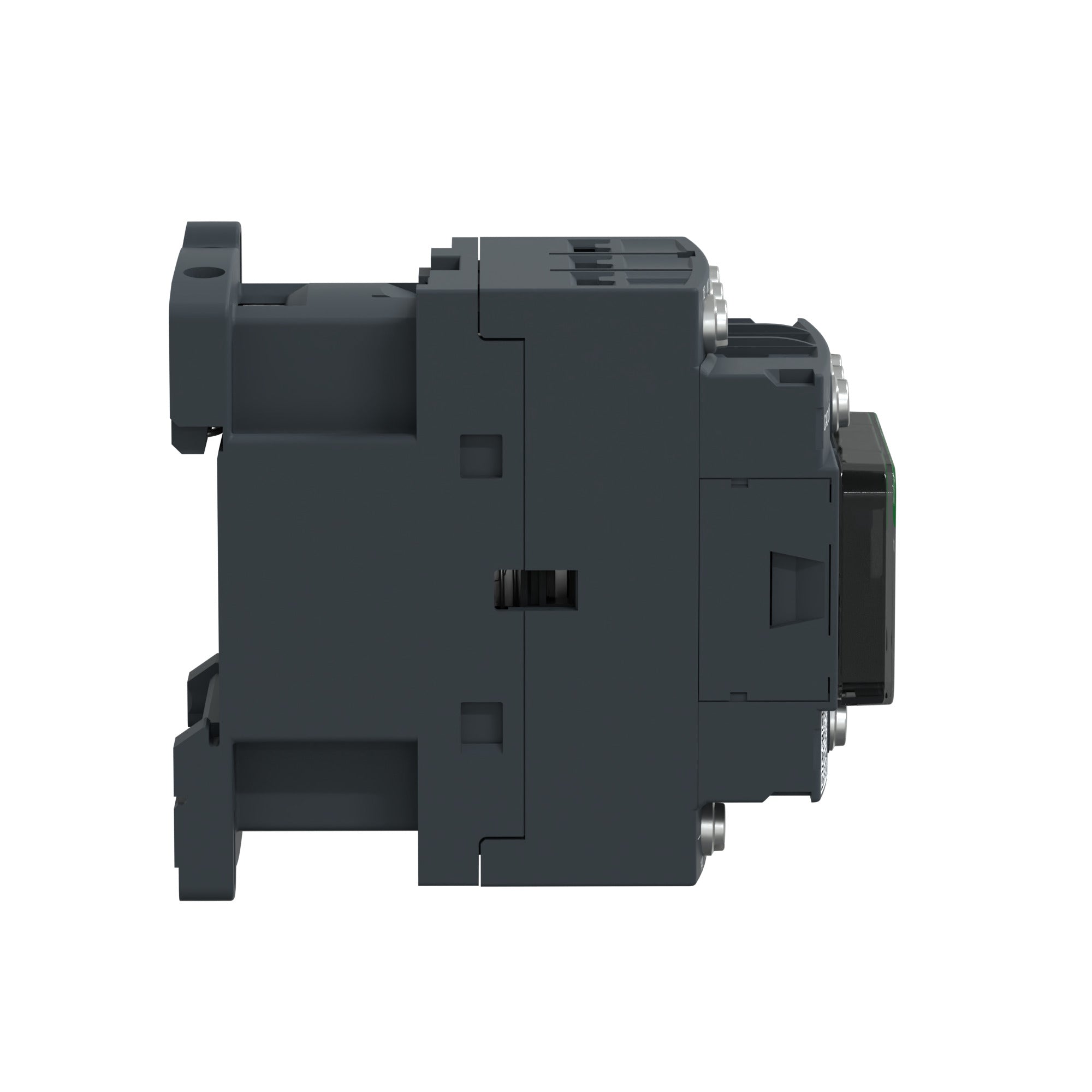

Schneider Electric CAD326FD TeSys Deca Control Relay - 110V DC Standard Coil - 3 NO + 2 NC

Product Description

Schneider Electric CAD326FD is a TeSys D control relay that features five contacts (three normally open and two normally closed) with a rating of ten amps at six hundred ninety volts. This relay is designed for controlling electromagnetic loads in accordance with AC-15 and DC-13 standards. It operates with a one hundred ten-volt DC control circuit, ensuring minimal inrush consumption. The CAD326FD is equipped with connection lugs and a surge suppression device, offering enhanced reliability for high operational rates reaching up to one hundred eighty cycles per minute. It is suitable for ambient temperatures ranging from negative forty to sixty degrees Celsius.

• Five contacts: 3NO + 2NC
• Operating voltage: 690V AC, 10A
• High operational rate: 180 cycles/min

Product Highlights

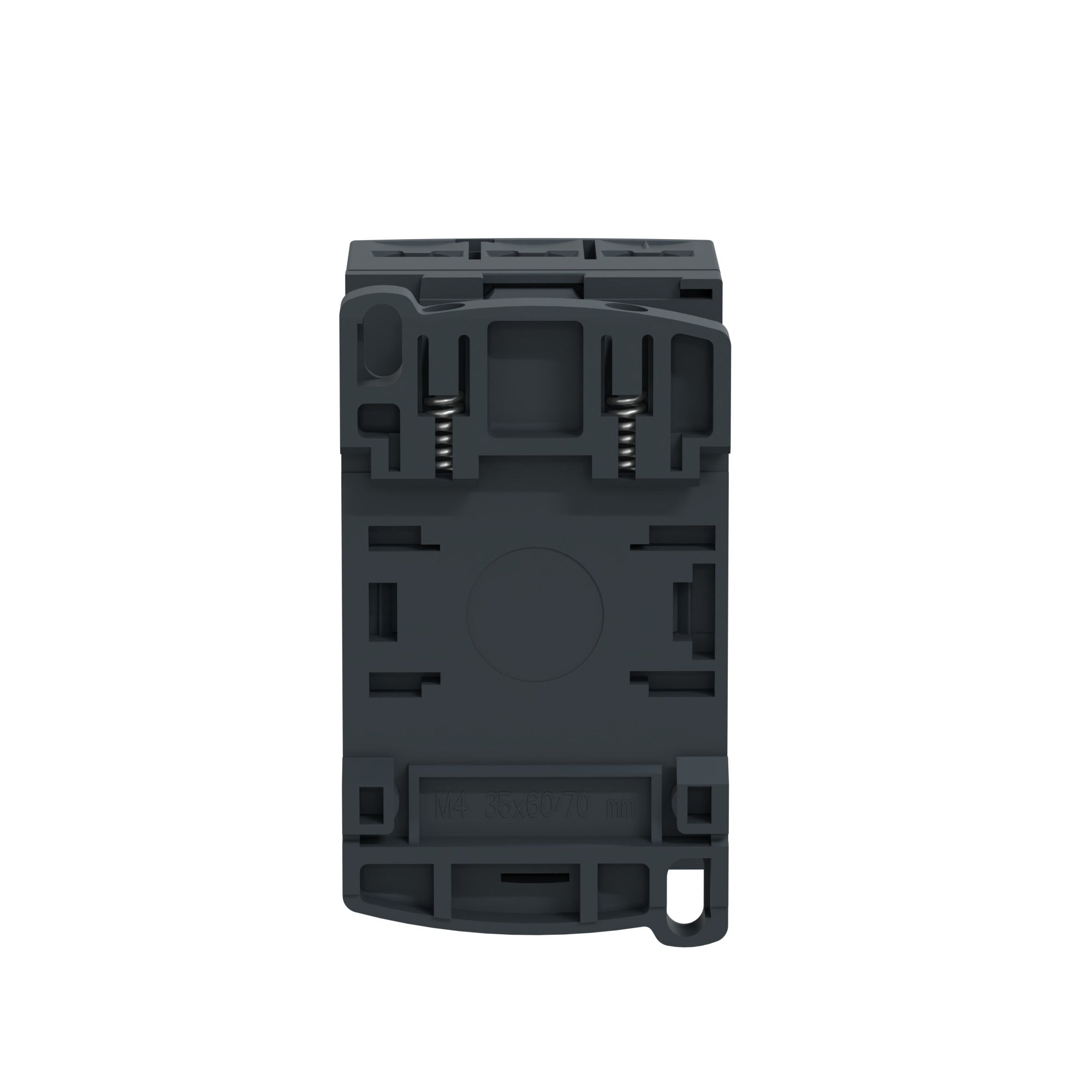

This control relay is compact, measuring only forty-five millimeters in width. It can be easily mounted on a thirty-five millimeter DIN rail or secured with screws. The CAD326FD complies with multiple standards including IEC, UL, CSA, CCC, and Marine certifications, making it a reliable choice for various applications. It is a Green Premium product, compliant with RoHS and REACH regulations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: CAD326FD
• Voltage Rating: 690 Volt
• Amperage: 10 Amp at <= 60°C
• Operating Temperature: -40 to 70 degrees Celsius
• Depth: 93 mm
• Width: 45 mm
• Height: 77 mm
• Weight: 1.28 lb
