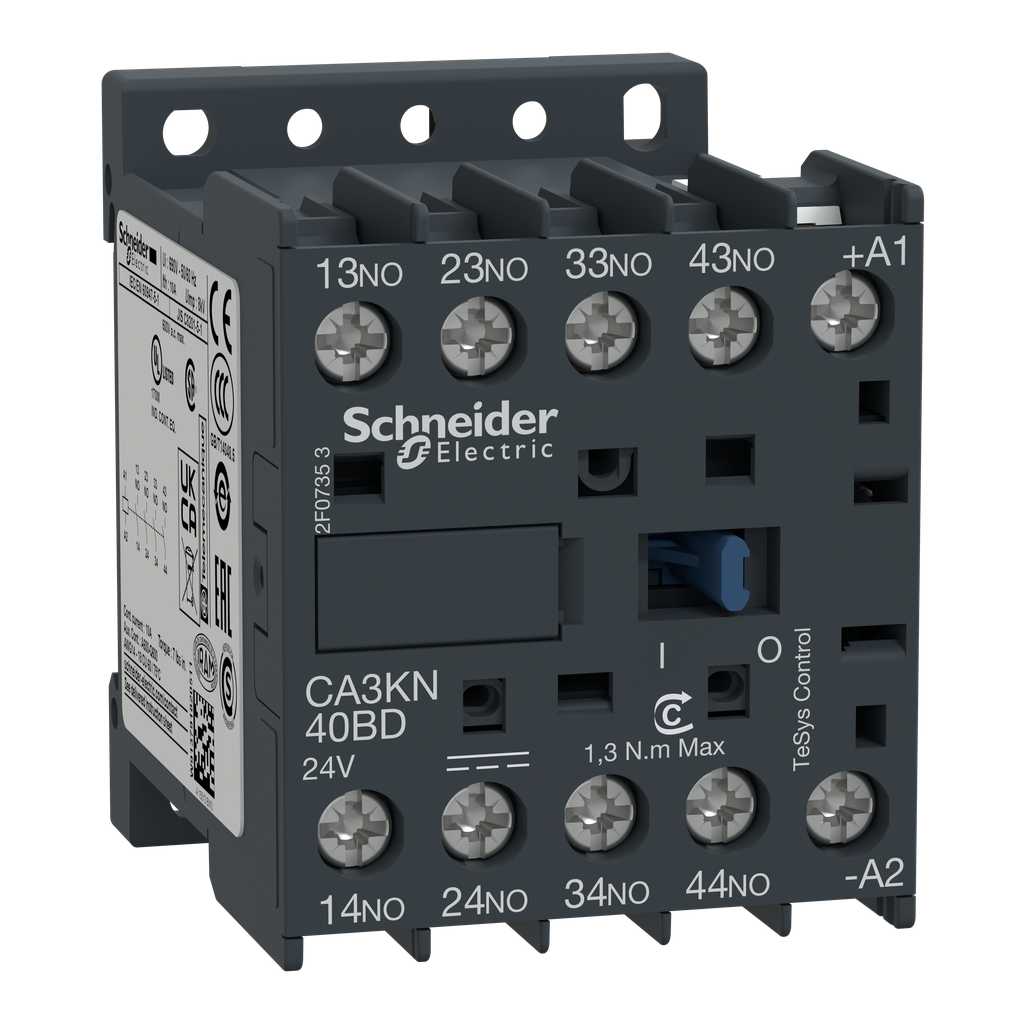

Schneider Electric CA3KN40BD Square D CA3KN40BD 240 VDC 24 VDC 10 Amp 3 W 4-Pole 4NO IP2X IEC Control Relay

Product Description

The Schneider Electric CA3KN40BD is a control relay featuring four normally open contacts rated at 10 amps for up to 690 volts. This relay operates on a 24V DC control circuit, designed for controlling electromagnetic loads in various applications. It connects using screw clamp terminals and provides reliable performance with no inrush consumption. The product is suitable for high-speed operations, capable of up to 180 cycles per minute and functioning effectively in ambient temperatures ranging from negative twenty-five to fifty degrees Celsius. The compact size of forty-five millimeters enables easy installation on a thirty-five millimeter DIN rail or through screw fixing. This relay is certified to multiple standards including IEC, UL, CSA, and others, confirming its quality and safety compliance.

• Four normally open contacts
• Input voltage of 24V DC
• High performance with a maximum of 180 cycles/min

Product Highlights

Compact design with high reliability for control applications.

Product Information

Standard Information

• Catalog Number: CA3KN40BD
• Brand: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Amperage: 10 Amp at temperatures below 50 °C
• Contact Configuration: 4 NO
• Height: 58 mm
• Width: 45 mm
• Depth: 57 mm
• Weight: 0.50 lb
• Operating Temperature: -25 to 50 °C
• Country of Origin: France
