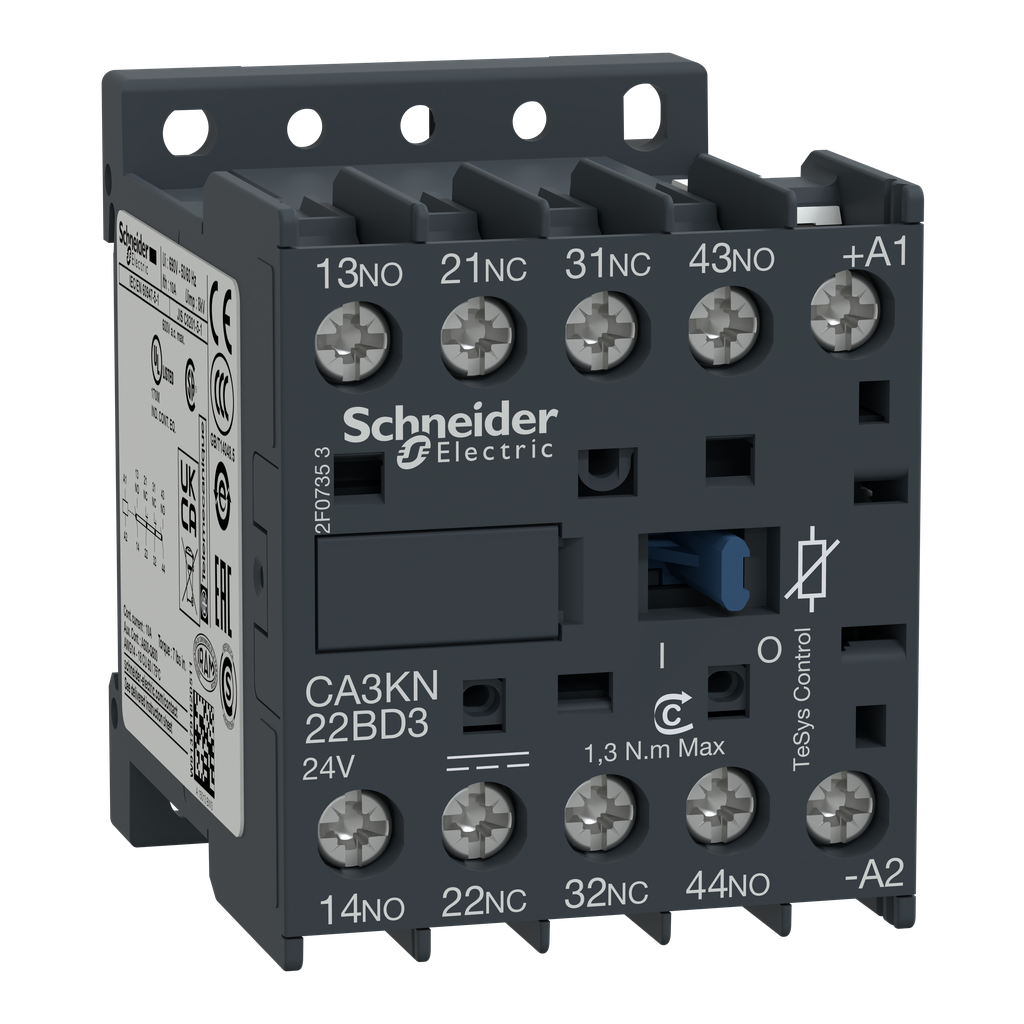

Schneider Electric CA3KN22BD3 Control Relay 240 VDC 10 Amp 3 W 4-Pole

Product Description

The Schneider Electric CA3KN22BD3 is a TeSys K control relay with a catalog number of CA3KN22BD3. This relay features four contacts configured as two normally open (2NO) and two normally closed (2NC). It operates on a control voltage of twenty-four volts DC with a maximum contact rating of ten amps at a voltage of up to six hundred ninety volts. This product is designed for electromagnetic load control in automated systems, making it ideal for various applications in industrial automation.

• Operates at up to 690 volts AC and DC
• Designed for high frequency with up to 180 cycles per minute
• Suitable for -25°C to 50°C ambient temperature

Product Highlights

The CA3KN22BD3 control relay is compact and mounts easily on a thirty-five millimeter DIN rail or by screw fixing. It complies with multiple standards including IEC, UL, CSA, and RoHS regulations, ensuring high reliability in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: CA3KN22BD3
• Voltage: 690 Volt
• Amperage: 10 Amp
• Operating Temperature: -25 to 50 degrees C
• Enclosure: IP2X
• Width: 45 mm
• Depth: 57 mm
• Height: 58 mm
