Schneider Electric CA2SK20E7 Control Relay 10A 690V 48V AC Coil

Product Description

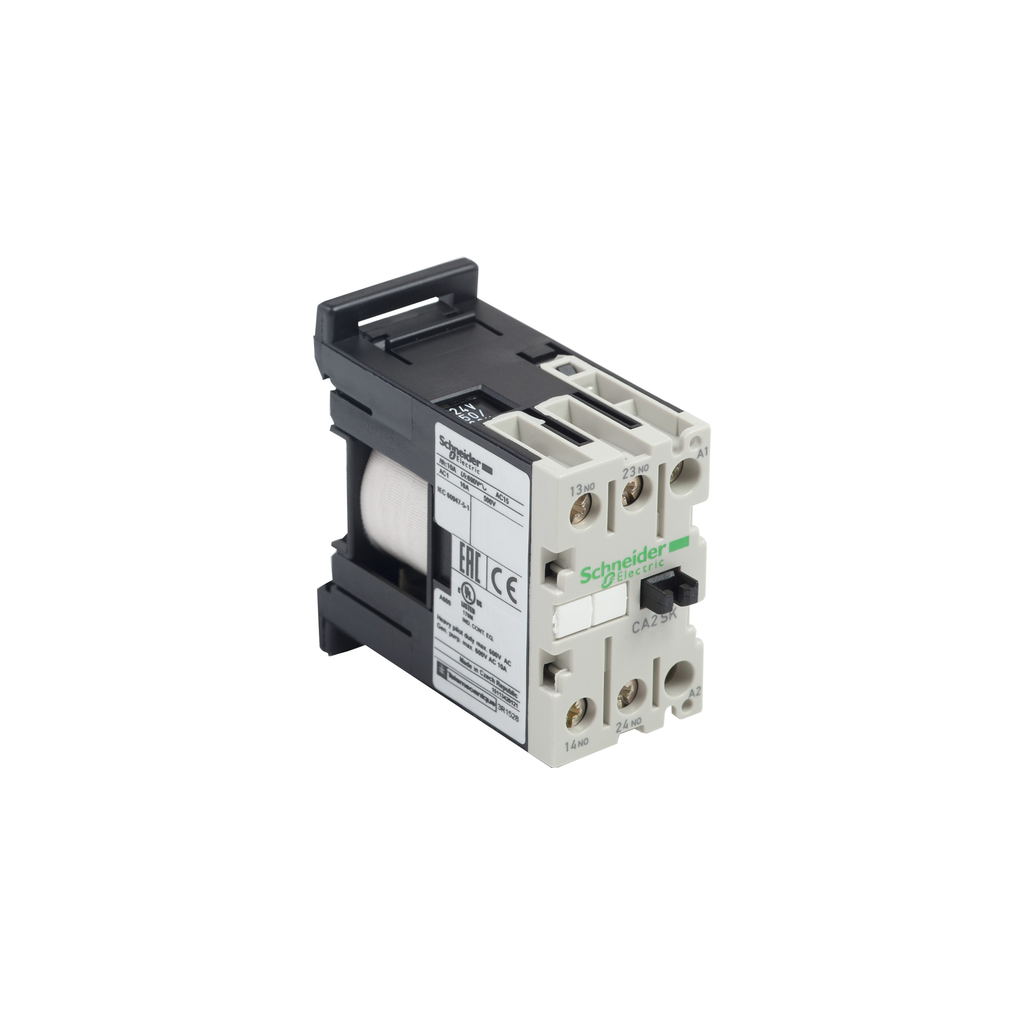

Schneider Electric CA2SK20E7 is a control relay designed for efficient operation in various automation applications. This TeSys SK mini-control relay features two contacts (2NO) and has a rated current of 10 Amps at a voltage of 690 Volts. Intended for controlling electromagnetic loads in AC-15/DC-13 configurations, it operates with a 48V, 50/60Hz AC control circuit. The relay connects via durable screw terminals, ensuring a secure connection.

It functions effectively across an operating temperature range of negative twenty to fifty degrees Celsius and can handle up to twenty cycles per minute. The compact design, measuring twenty-seven millimeters in width, allows for easy mounting on a thirty-five millimeter DIN rail. This product is certified to multiple international standards, including IEC, UL, CSA, CCC, EAC, and meets Green Premium product requirements, signifying compliance with RoHS/REACh directives.

• Two contacts (2NO) for various control applications.
• Compact design suitable for mounting on a DIN rail.
• Multi-standard certified for global use.

Product Highlights

Reliable operation and compact design make the Schneider Electric CA2SK20E7 an excellent choice for automation and control circuits.

Product Information

Standard Information

• Catalog Number: CA2SK20E7
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Amperage: 10 Amp at <= 55 °C
• Depth: 55.5 mm
• Width: 27 mm
• Height: 56 mm
• Weight: 0.29 lb
• Operating Temperature: -20 to 50 °C
• Country of Origin: Czech Republic
