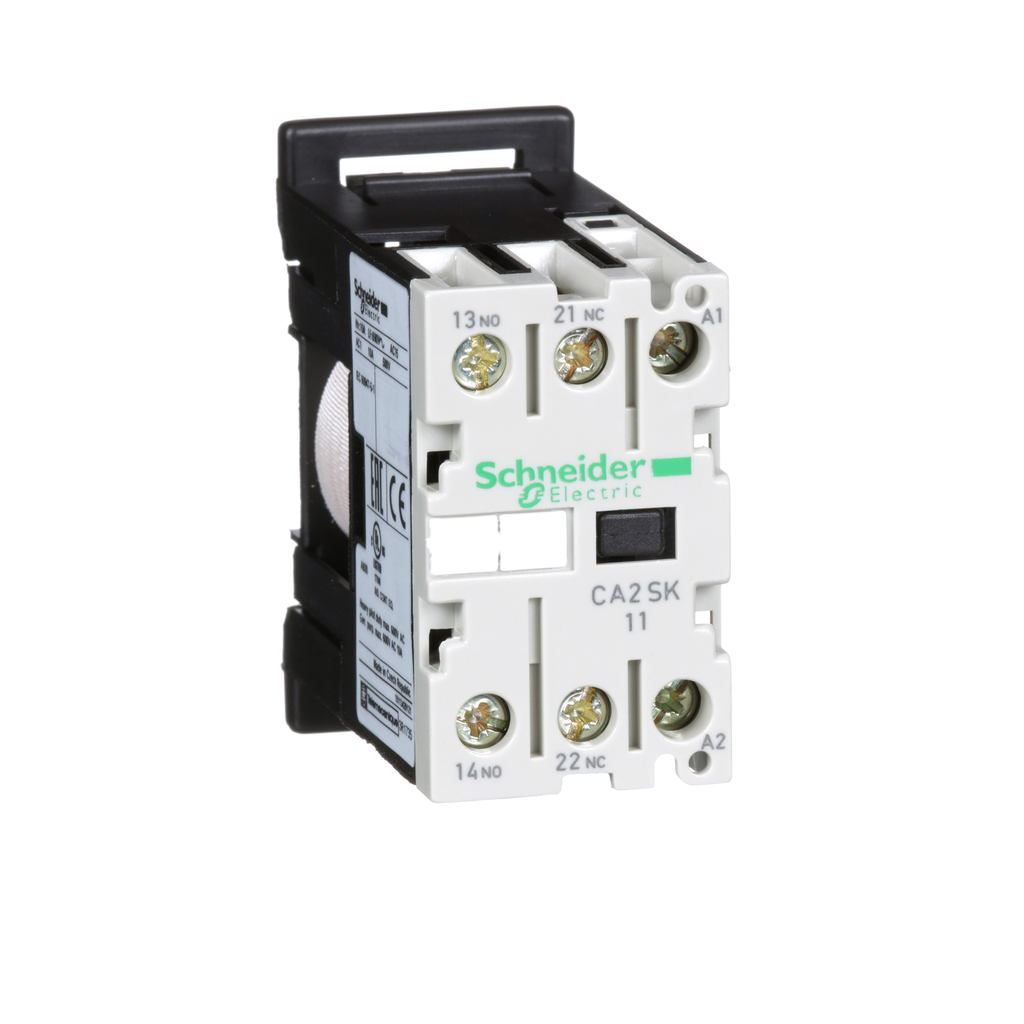

Schneider Electric CA2SK11G7 Square D control relay 120 VAC 10 Amp 4-Pole 1NO 1NC

Product Description

The Schneider Electric CA2SK11G7 is a control relay designed for industrial applications. It operates at 120 VAC and has a rating of 10 Amps. The relay has a compact design and can be mounted on a DIN rail. It features one normally open (NO) and one normally closed (NC) contact. The relay is UL Listed and CSA certified, ensuring compliance with safety standards.

• Operating voltage of 120 VAC 50/60 Hz
• Includes 1 NO and 1 NC contact configuration
• 10 Amp resistive rating with NEMA A600 rating

Product Highlights

This control relay is ideal for managing control circuits and providing reliable operation in various automation settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: CA2SK11G7
• Weight: 0.29 lb
• Height: 2.20 in
• Width: 1.06 in
• Depth: 2.19 in
• Voltage: 690 Volt
• Amperage: 10 Amp AT <= 55 °C
• Standards: CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, UL 60947-5-1
• Country of Origin: Czech Republic
• Operating Temperature Range: -20 °C to 50 °C
• Storage Temperature: -50 °C to 70 °C
• Certifications: CB Scheme, CE, cULus, UKCA
