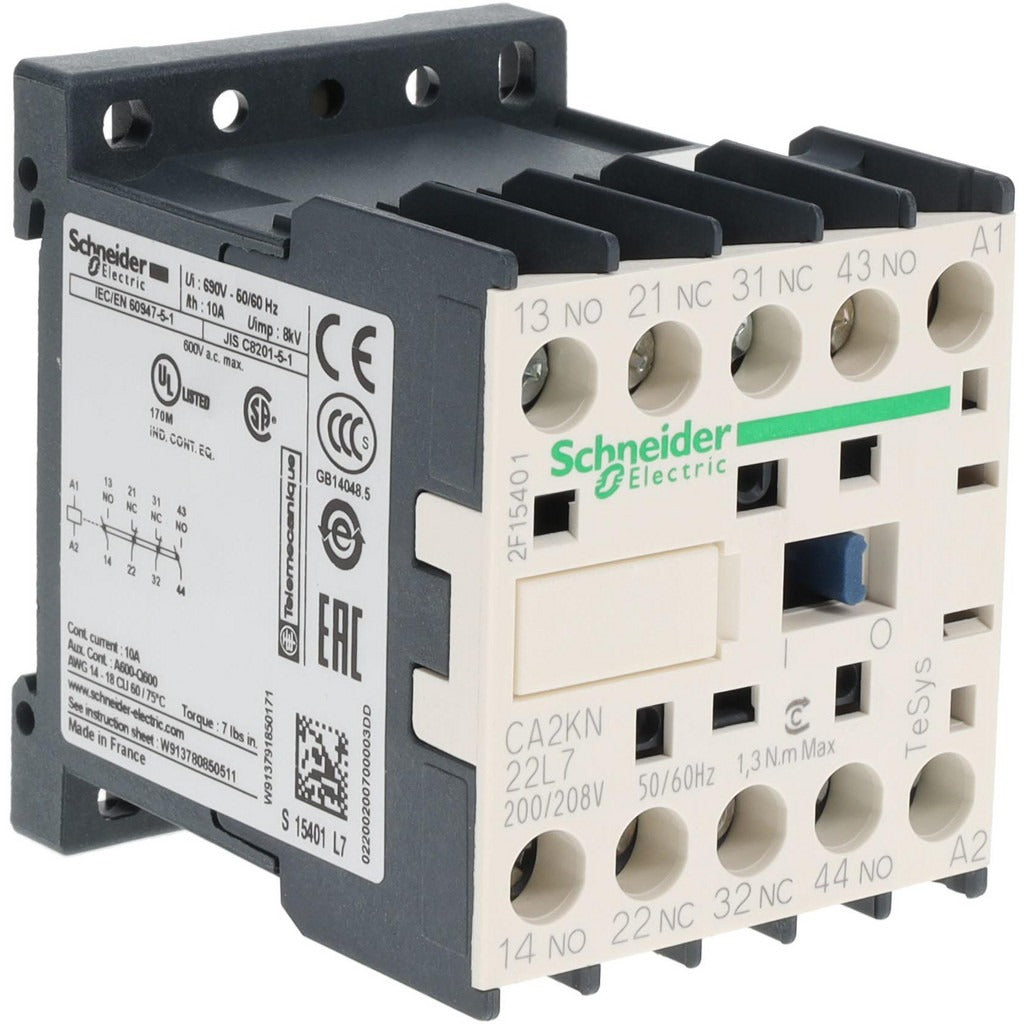

Schneider Electric CA2KN22L7 Control Relay 2NC/2NO 200 Vac

Product Description

The SCHNEIDER ELECTRIC CA2KN22L7 is a control relay with a 2NC/2NO contact configuration rated for 200 VAC operation at 50/60 Hz. It is designed for use in industrial and commercial control circuits where reliable switching of AC control signals is required. The relay mounts on standard DIN rail and uses screw terminals for field wiring. Key electrical characteristics include a minimum sensed amperage of 5 mA and an operating temperature range of -13 degrees F to 122 degrees F. Licensed electricians and industrial control technicians are the primary installers of this device.

This relay is suited for machine control panels, motor starter auxiliary circuits, and building automation control cabinets. Its IP2X ingress protection rating makes it appropriate for use inside enclosed control enclosures. The DIN rail mount and screw terminal design allow for straightforward integration into standard panel layouts in both new installations and retrofit applications. It complies with a broad set of international standards, making it suitable for projects with UL, CSA, IEC, or VDE listing requirements.

Key Features

• 2NC/2NO contact configuration for versatile control circuit switching
• Rated for 200 VAC at 50/60 Hz AC control circuits
• DIN rail mount for fast, tool-minimal installation in standard panels
• Screw terminal connections for secure, serviceable field wiring
• Minimum sensed amperage of 5 mA suits low-current control signals
• Compliant with UL, CSA, IEC 60947, VDE 0660, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or new-installation control relay for industrial and commercial AC control panel applications requiring DIN rail-mounted auxiliary relay functions.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before mounting or wiring the relay. Secure the relay firmly onto the DIN rail before terminating screw connections. Verify that the control circuit voltage matches the relay coil rating prior to energizing the panel.
