Schneider Electric BMXP342020H 4096 kB 2 Ethernet Network Ruggedized Processor PLC Module

Product Description

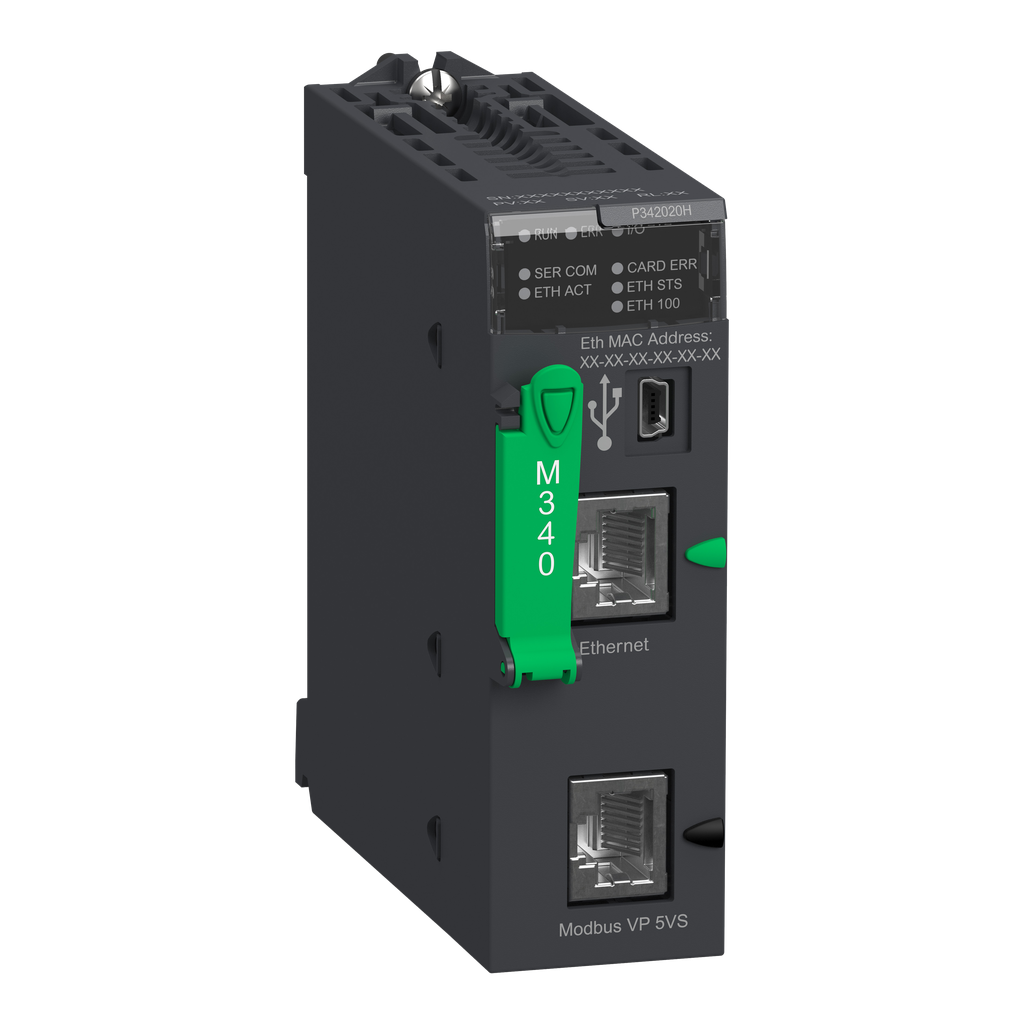

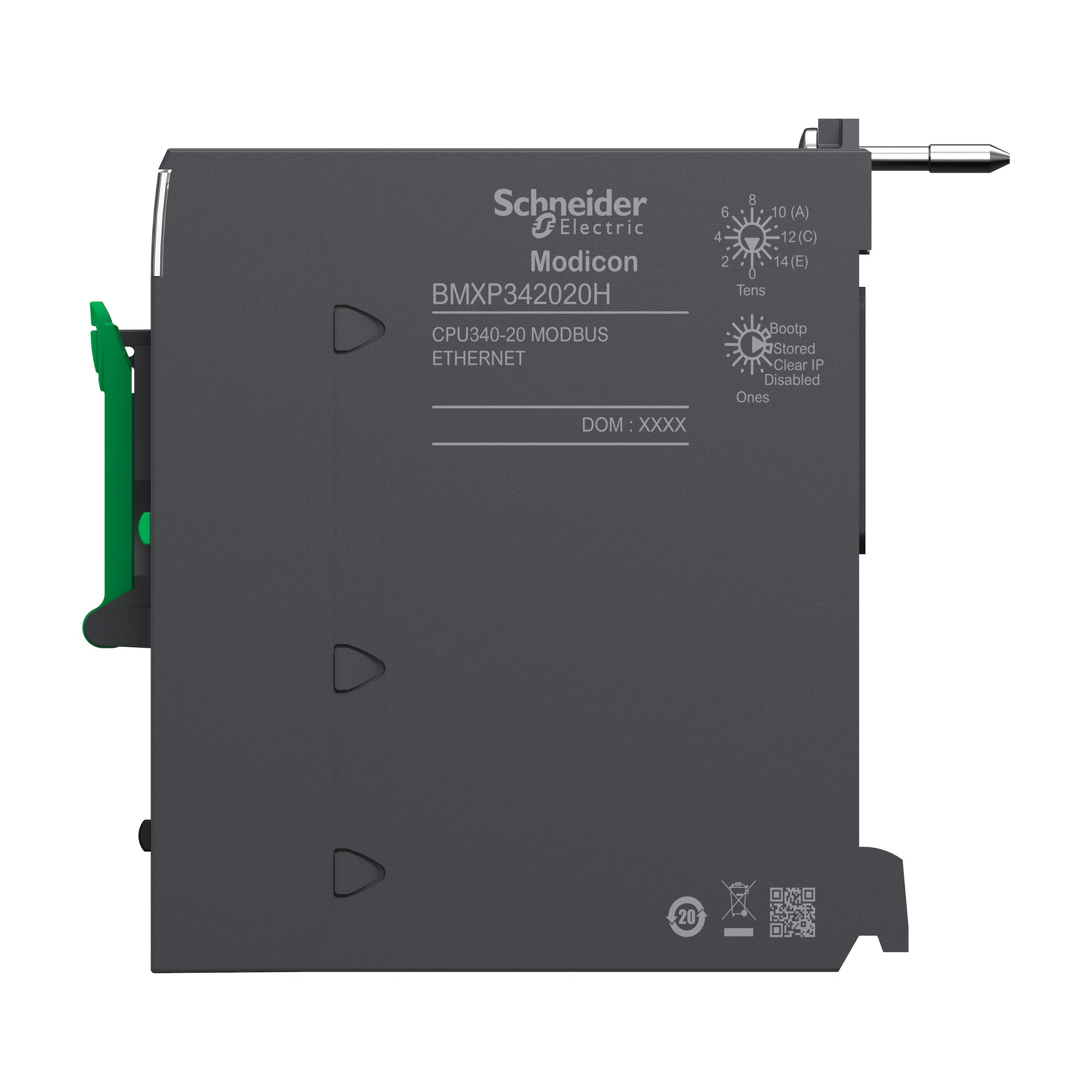

Schneider Electric BMXP342020H is a processor module designed for the Modicon M340 range of Programmable Automation Controllers (PAC). This module supports a maximum of four rack configurations, 36 application-specific channels, and 11 slots. It operates with a consumption of ninety-two milliamps at twenty-four volts DC and features an internal power supply. The module is suitable for use in harsh environments, functioning within an extended temperature range from negative twenty-five degrees Celsius to positive seventy degrees Celsius.

Key features include:

• Two Ethernet interfaces and four AS-Interface interfaces
• Comes with a memory card for program and data backup
• Supports up to 1024 multi-rack/discrete I/O and various analog I/O configurations

Product Highlights

This module is ideal for applications in process industries, renewable energy, water management, cement production, and manufacturing. It meets several industry standards and is certified by CE.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: BMXP342020H
• Weight: 0.205 kg
• Current Consumption: 92 mA
• Processor Capacity: 1024 multi-rack, 704 single-rack discrete I/O
• Analog I/O Capacity: 256 multi-rack, 66 single-rack
• IP Rating: IP20
• Operating Temperature: -25 °C to +70 °C
• Standards Compliance: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
