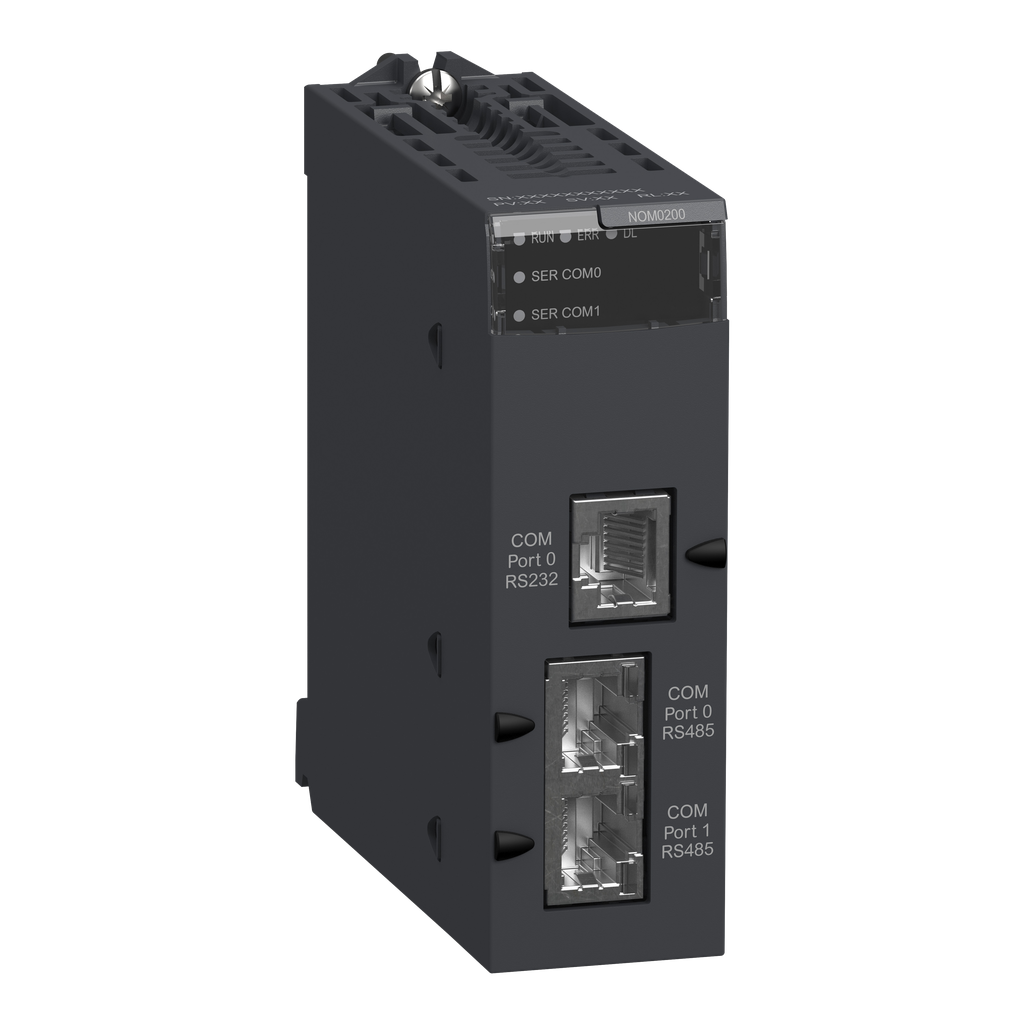

Schneider Electric BMXNOM0200 RS485/232 RJ45 Bus Module

Product Description

The Schneider Electric BMXNOM0200 is a serial link module designed for use with Modicon M580 and M340 Programmable Automation Controllers (PAC). This module features two RS-485/232 ports operating in Modbus and character mode. The module is a remote terminal unit (RTU) requiring 80mA current at twenty-four volts DC and utilizes an internal power supply.

• Two RS-485/232 ports
• Integrated RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps connections
• Meets various international safety and performance standards

Product Highlights

This module provides a reliable solution for medium to large process applications, supporting best-in-class connectivity options. Its design allows for easy integration into existing systems, reducing maintenance and training costs.

Product Information

Standard Information

• Catalog Number: BMXNOM0200
• Brand: Schneider Electric

Technical Specifications

• Weight: 0.51 lb
• Current Consumption: 80 mA
• Temperature Rating: 0-60 degrees C
• Power Supply: Internal power supply via rack
• Warranty Length: 18 months
• Country of Origin: France
• Certifications: UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
