Schneider Electric BMXNOE0110H SQUARED Ethernet TCP/IP (1 PACK) Replacement MPN

Product Description

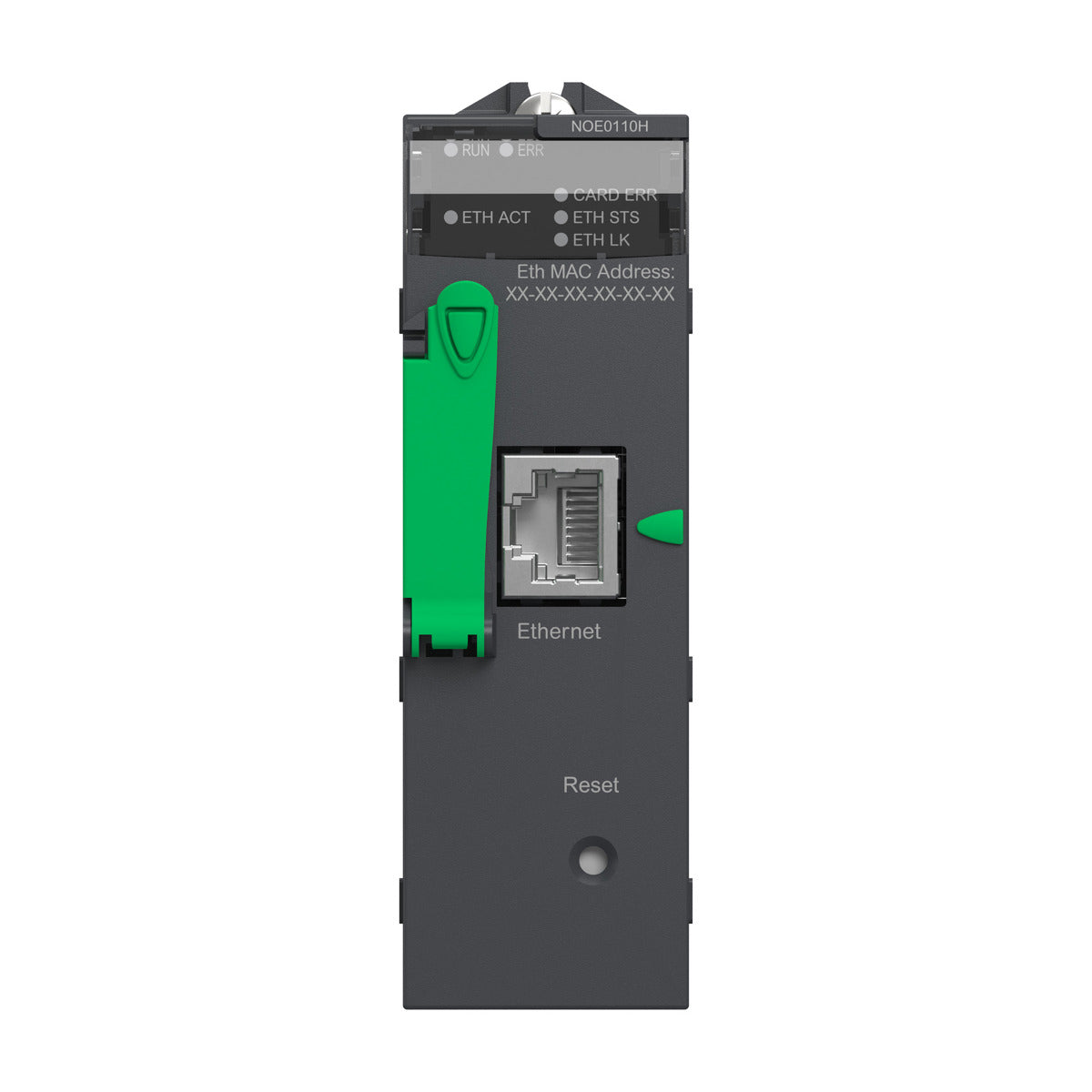

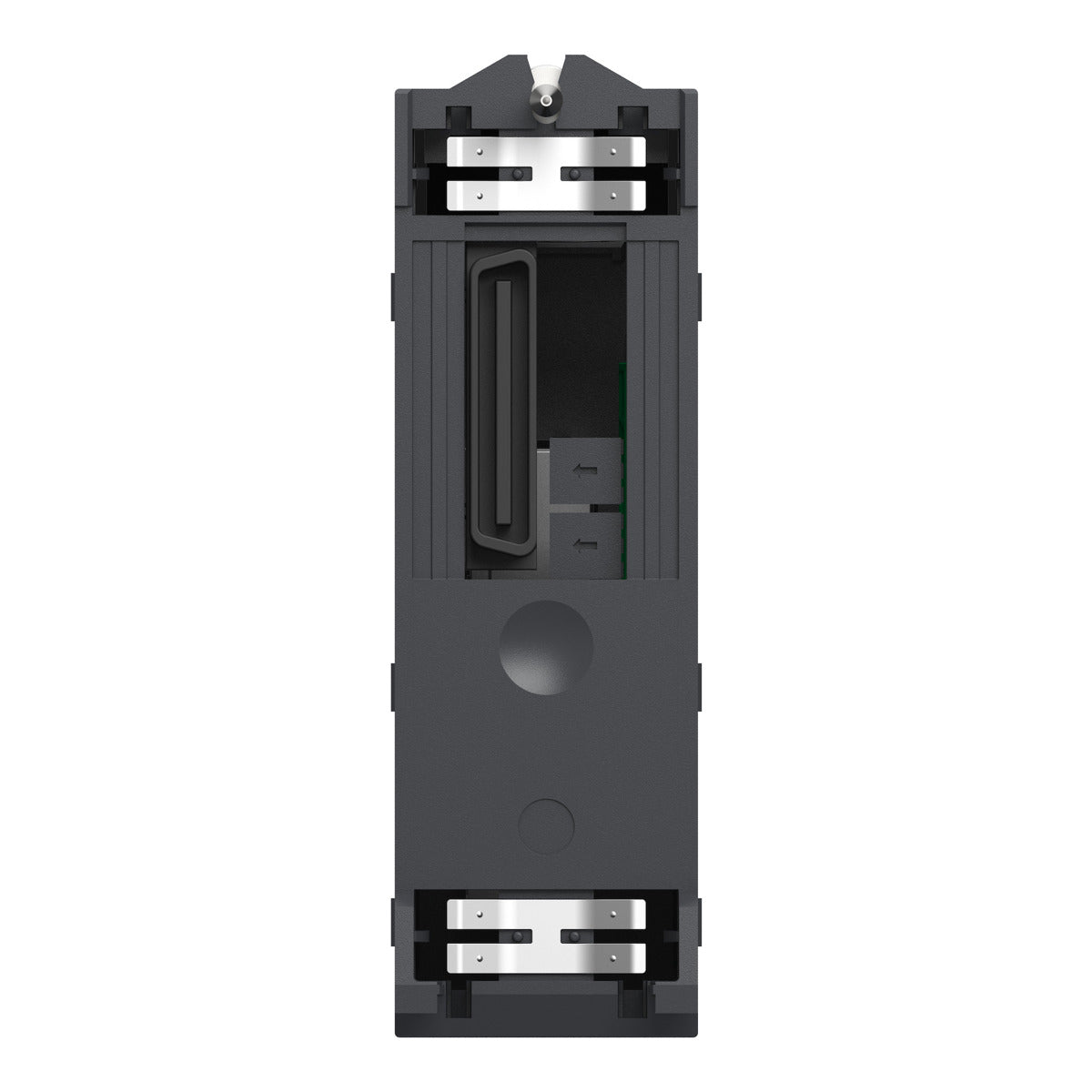

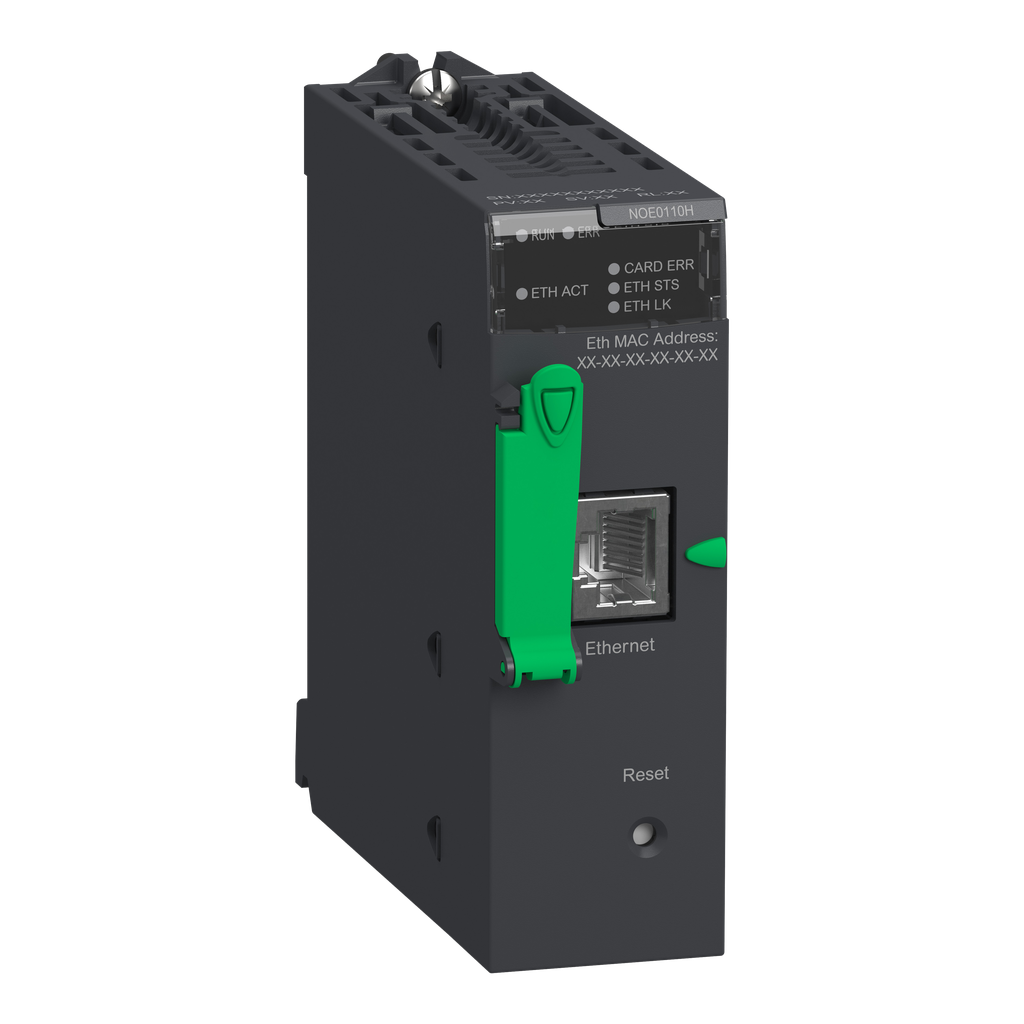

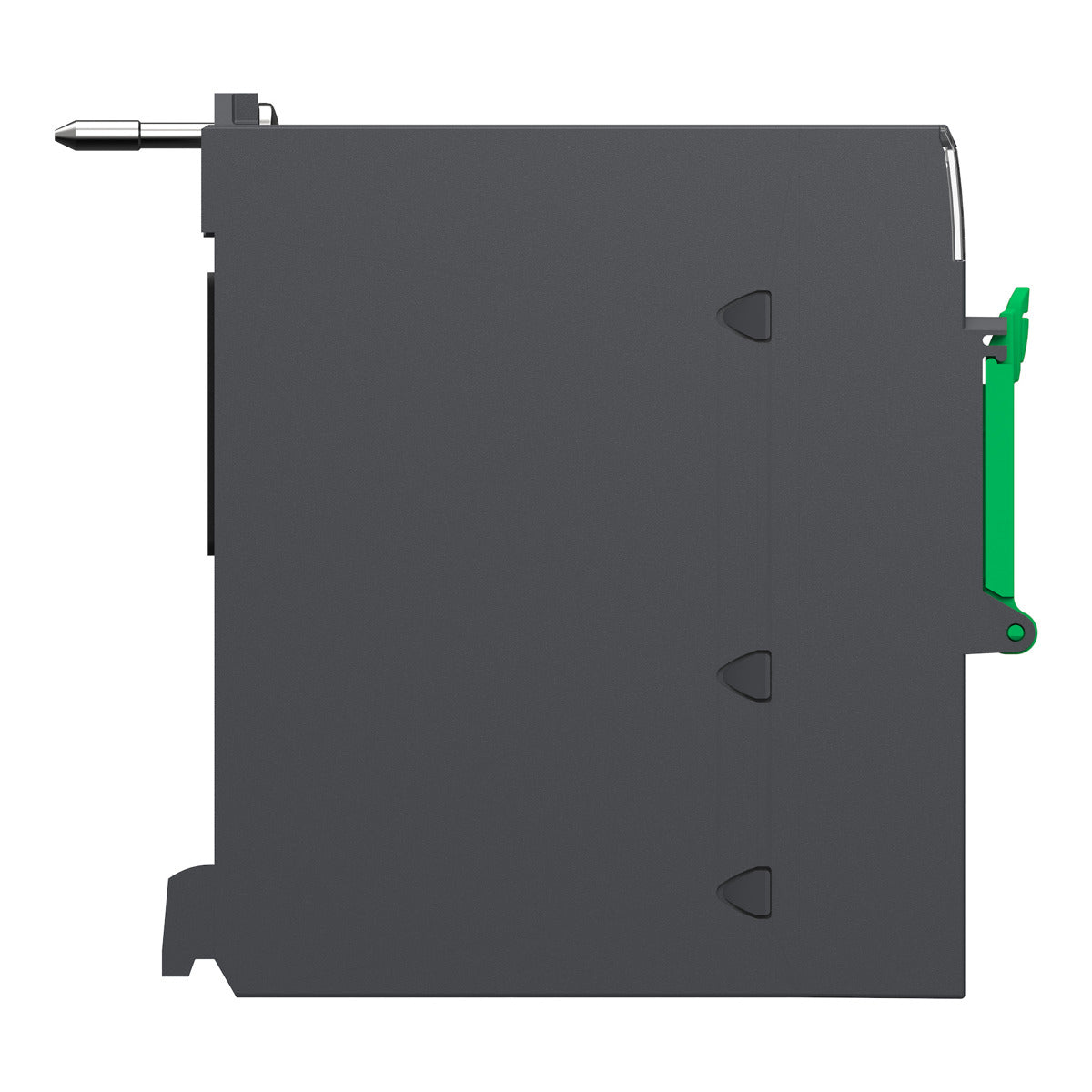

Schneider Electric BMXNOE0110H is a module designed for the Modicon M340 range, a solution for Programmable Automation Controllers (PAC). It facilitates Ethernet TCP/IP connectivity using RJ45 10/100. The module operates with a current consumption of ninety milliamps at twenty-four volts DC, supported by an internal power supply. It functions in environments with extended temperatures ranging from minus twenty-five degrees Celsius to plus seventy degrees Celsius. Key features include a reset push-button for cold control and an IP20 rating for protection.

• Supports RJ45 10/100 Ethernet connection
• Operating current of 90mA at 24V DC
• Extended temperature range from -25°C to +70°C

Product Highlights

This Ethernet TCP/IP network module is suitable for both standard and severe environment applications. It offers advanced communication services such as bandwidth management, data editing via PC, and Modbus TCP messaging. The product ensures compliance with CE and UL standards and adheres to EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: BMXNOE0110H
• Weight: 0.2 kg
• Current Consumption: 90 mA
• IP Rating: IP20
• Temperature Range: -25°C to +70°C
• Certifications: CE, UL, ATEX Zone 2/22
