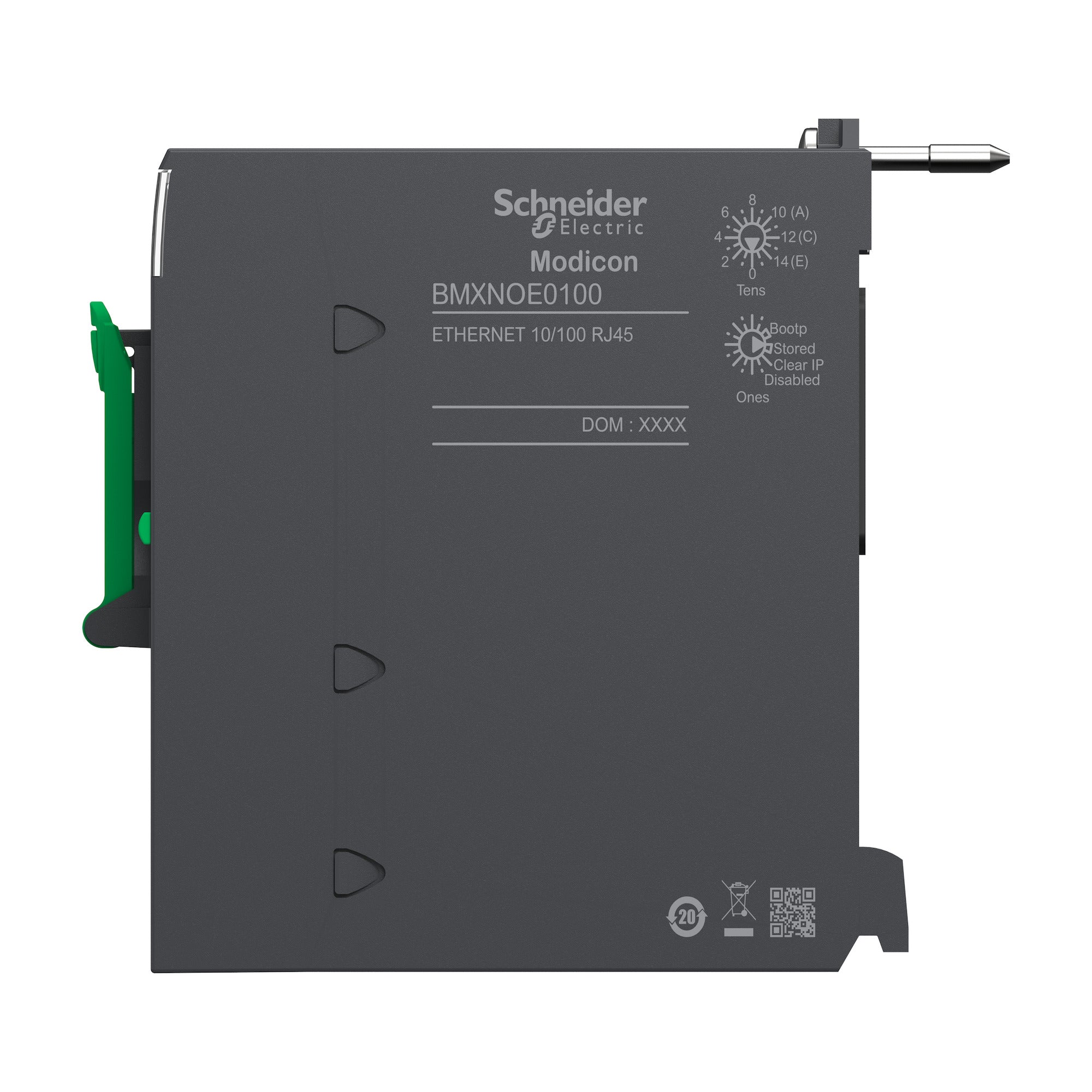

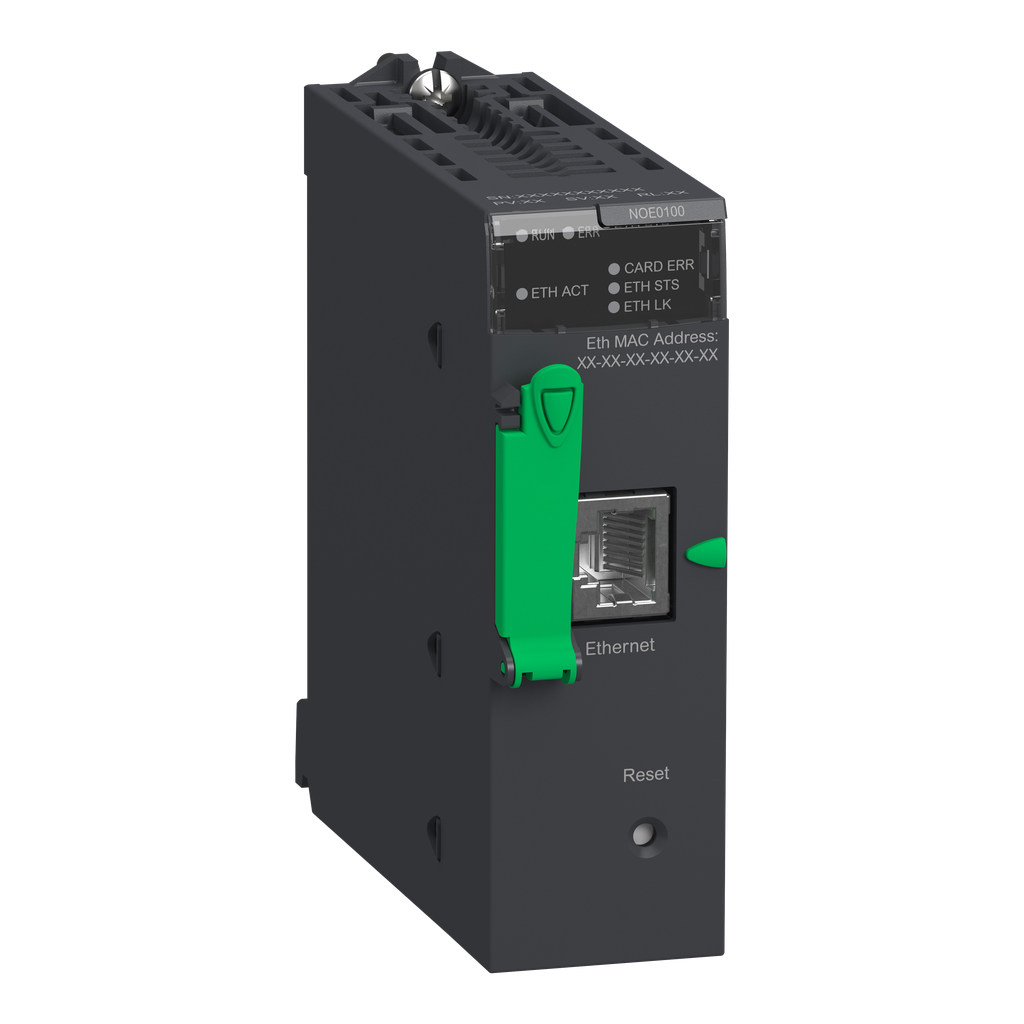

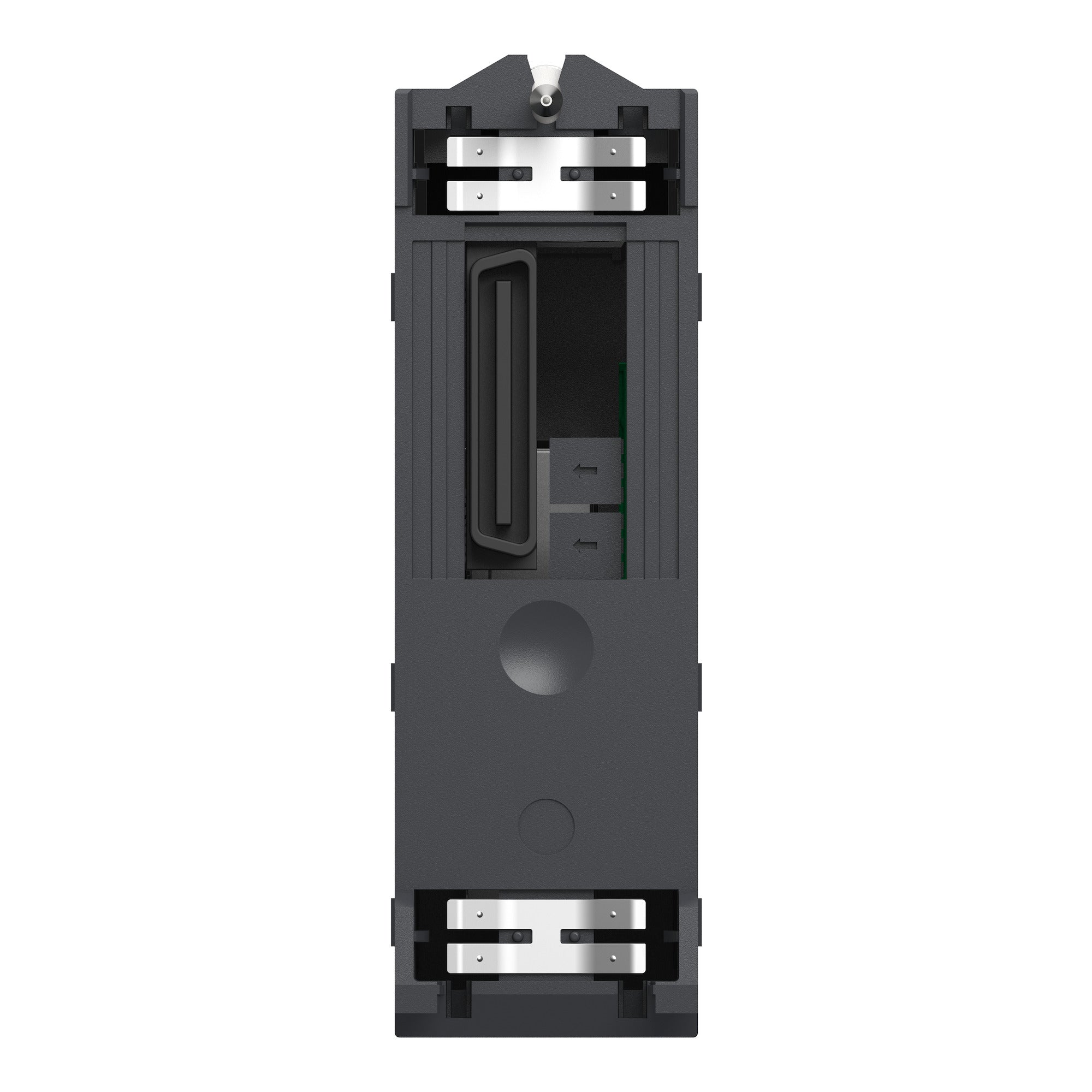

Schneider Electric BMXNOE0100 Square D 10/100 Mbps IP20 Ethernet TCP Network PLC Module

Product Description

The Schneider Electric BMXNOE0100 is an Ethernet TCP/IP network module designed for the Modicon M340 range of Programmable Automation Controllers. This module connects through an RJ45 interface supporting ten or one hundred Mbps data rates. It operates with a 90 mA current at twenty-four volts DC and includes an internal power supply. The product features advanced communication capabilities such as bandwidth management, data editing via PC terminals, and support for Modbus TCP messaging. It is rated IP20, meaning it is suitable for indoor use and is lightweight at approximately zero point two kilograms.

• Supports RJ45 10/100 Mbps connections
• Compatible with Modicon M340 PLCs
• Includes flash memory card BMXRWSC016M

Product Highlights

This module is ideal for applications in various sectors, including renewable energies, manufacturing, and industrial processes.

Product Information

Standard Information

• Catalog Number: BMXNOE0100
• Brand: Schneider Electric

Technical Specifications

• Type: Ethernet TCP/IP network module
• Memory: Flash memory card included (BMXRWSC016M)
• Weight: zero point two kilograms
• Power Supply: Internal power supply via rack
• Standard Certifications: UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
• Current Consumption: ninety mA
• Temperature Rating: zero to sixty degrees Celsius
• Country of Origin: France
• Warranty: eighteen months
