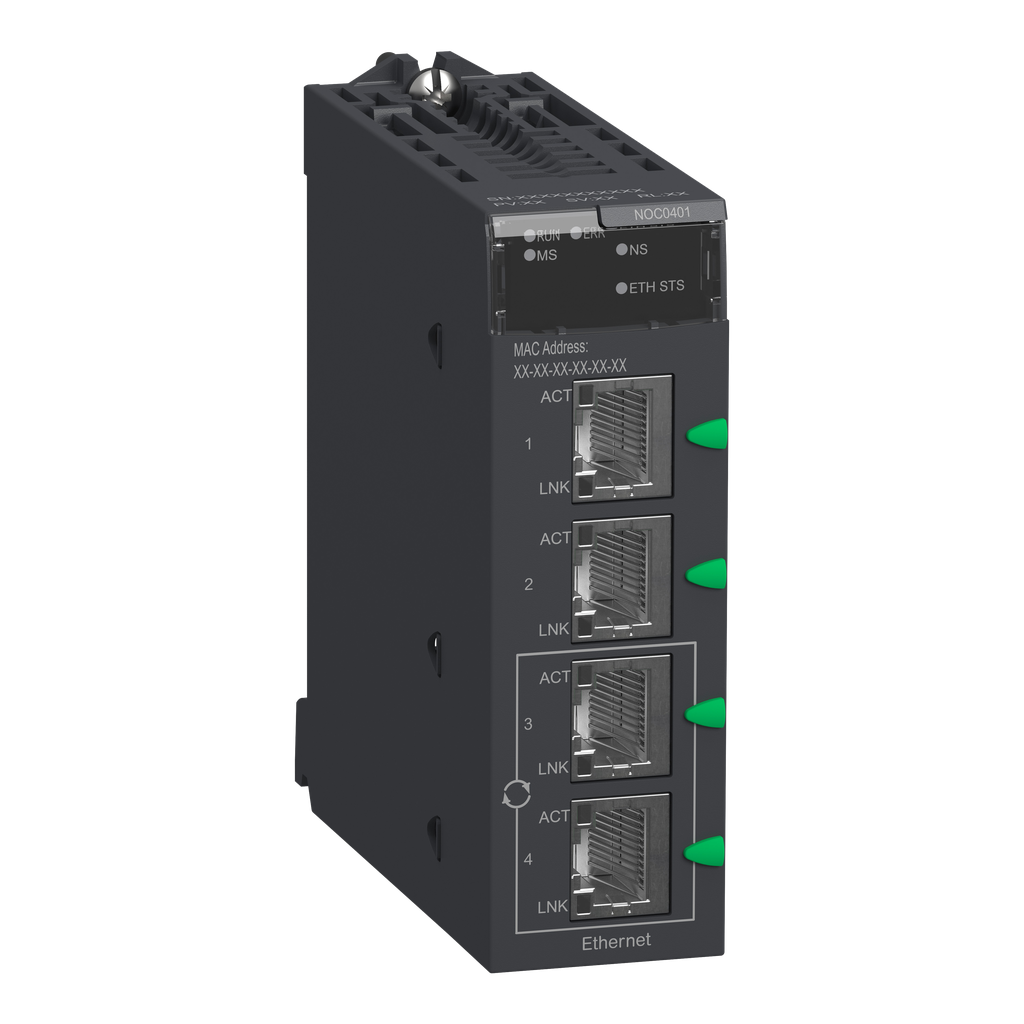

Schneider Electric BMXNOC0401 network module Ethernet TCP/IP 4 x RJ45

Product Description

The Schneider Electric BMXNOC0401 is an Ethernet TCP/IP network module from the Modicon M340 series. This module features four RJ45 connections operating at 10/100 Mbps, enabling seamless network integration for programmable automation controllers.

• Compatible with Modicon M340 PLCs
• Current Consumption: 555 mA at 3.3V DC
• IP20 rated for robust performance

Product Highlights

This module supports various communication services including bandwidth management, data editor, and embedded 4-port switch. It is ideal for applications in process industries, water management, and manufacturing.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BMXNOC0401

Technical Specifications

• Weight: 0.2 kg
• Dimensions: Compact, designed for easy integration
• Operating Voltage: 3.3 V DC
• Certifications: CE, UL, ODVA, complies with UL 508 and EN 61131-2 standards
• Country of Origin: France
• Warranty Length: 18 months
• Temperature Rating: 0.0 C to 60.0 C
• RoHS Compliance: Yes
