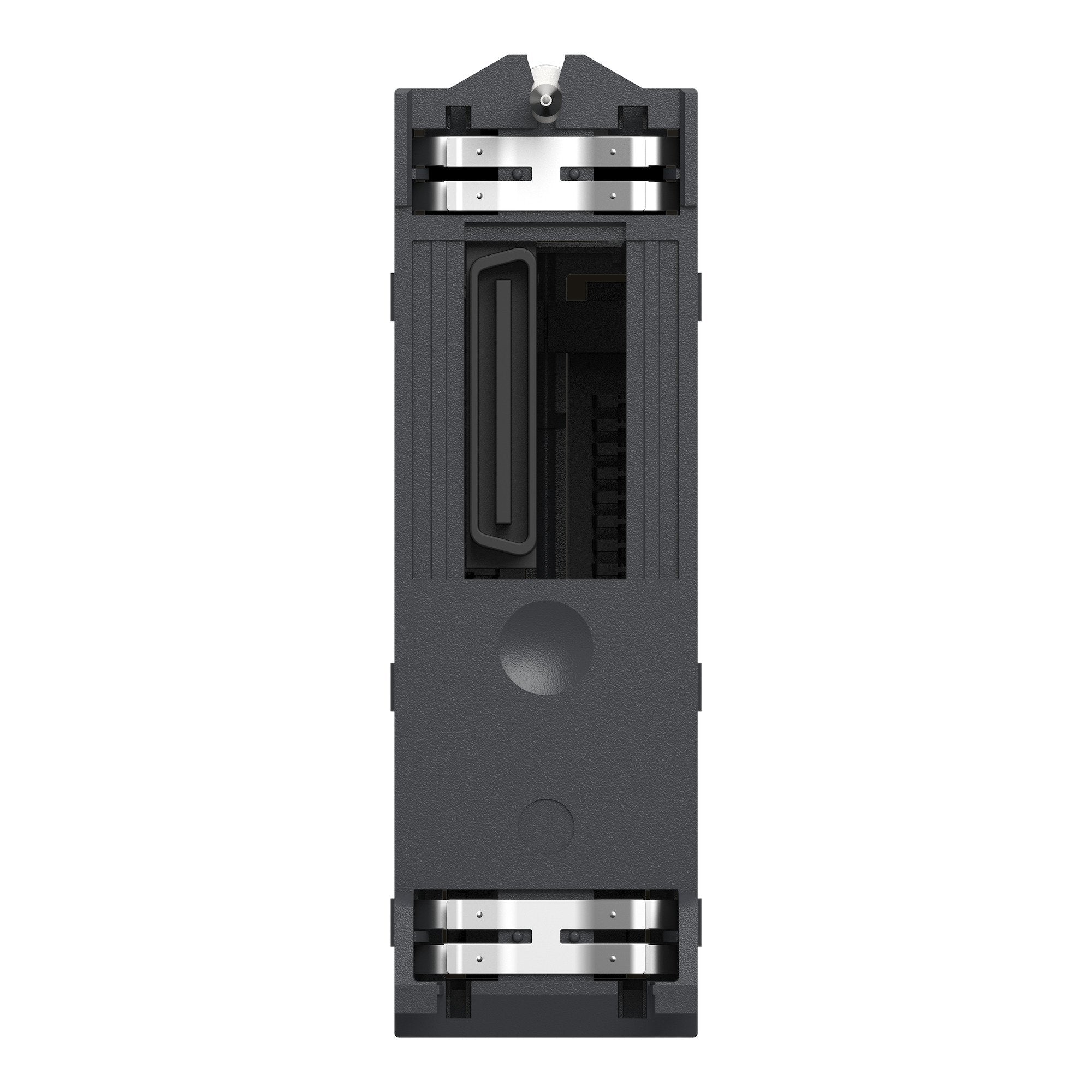

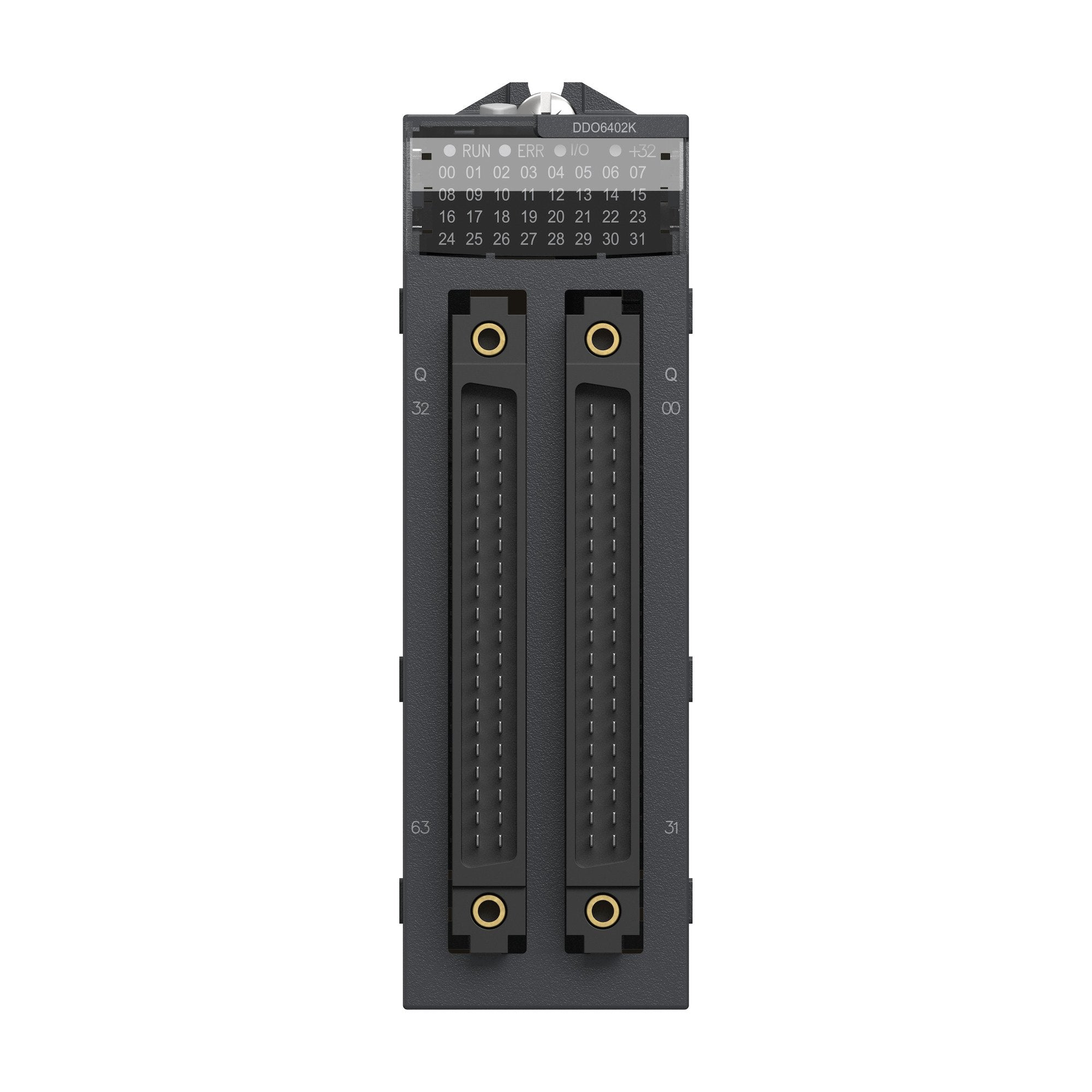

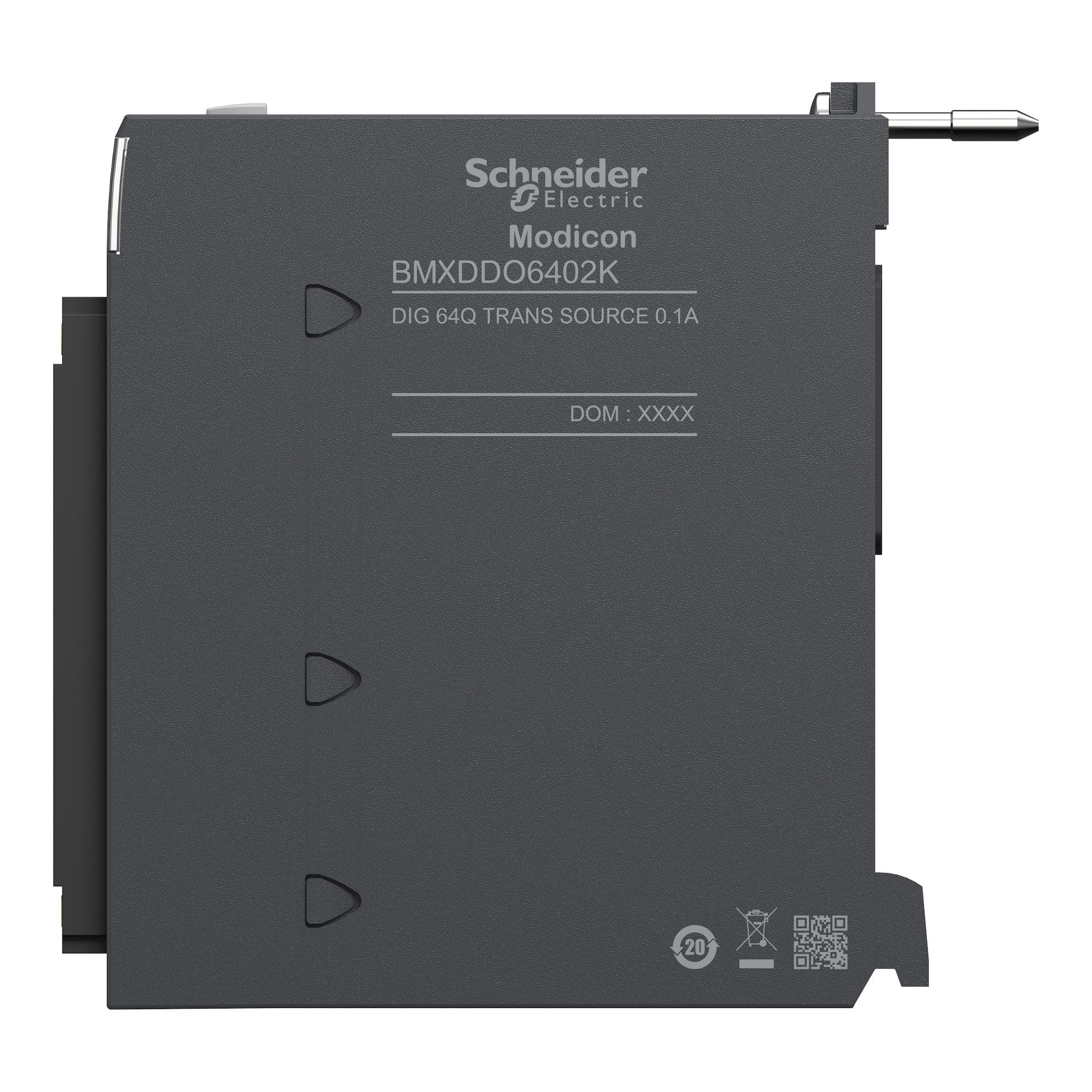

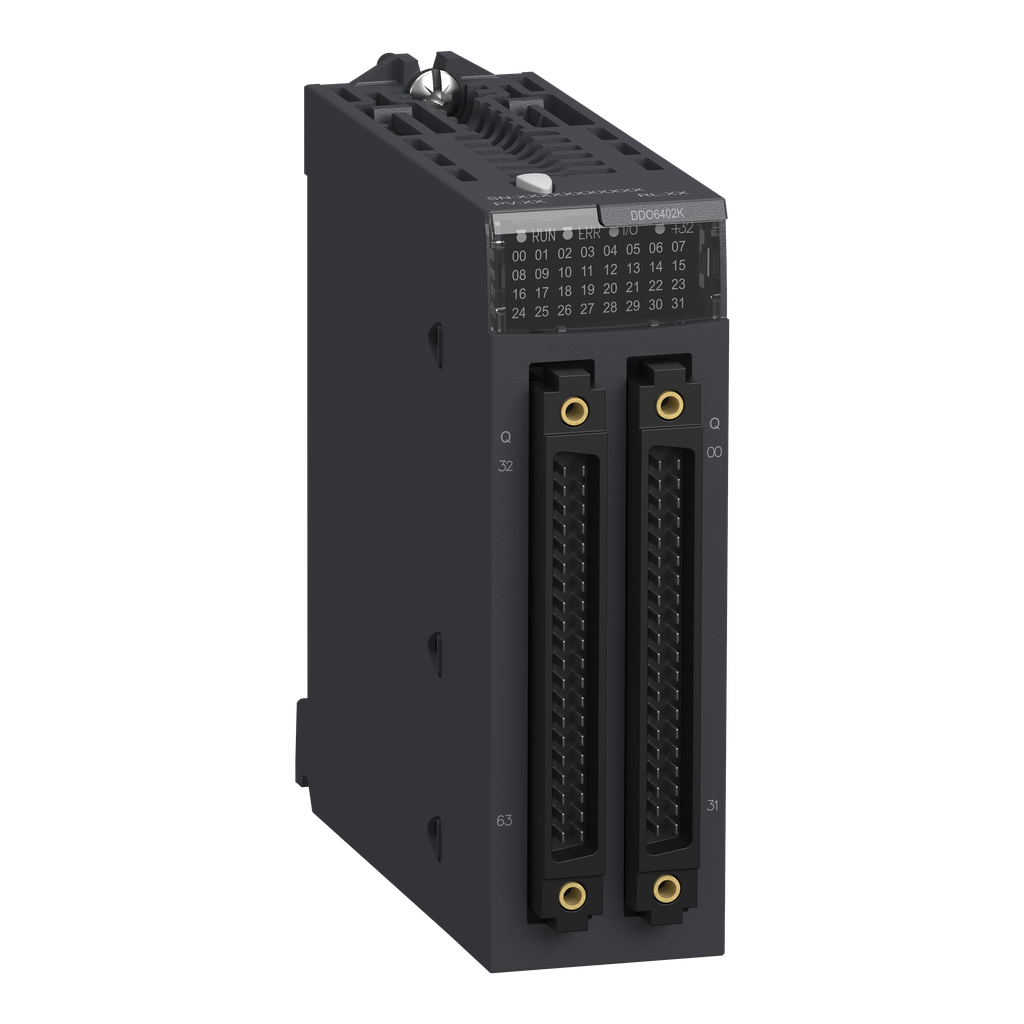

Schneider Electric BMXDDO6402K Square D 0.1 Amp 24 VDC Output DC PLC Discrete Output Module

Product Description

Schneider Electric BMXDDO6402K is part of the Modicon X80 range. This product is a discrete output module designed for use with Modicon M580 and M340 Programmable Automation Controllers. It has sixty-four outputs employing sink logic.

• Output Voltage: 24V DC with a range from 19V to 30V DC
• Typical current consumption of seventy-nine milliamperes at 3.3V DC
• IP20 rated and weighs zero point fifteen kilograms

Product Highlights

This module is suitable for medium to large process applications. It features various protection types, including reverse polarity, overload, and overvoltage protection. It offers a mean time between failures (MTBF) of one hundred fifty-nine thousand nine hundred twenty-four hours and is certified to several standards, including EAC, CE, and UL.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: BMXDDO6402K

Technical Specifications

• Brand: Schneider Electric
• Output Voltage: 24V DC (SOURCE)
• Warranty Length: 18 months
• Country of Origin: Indonesia
• Operating Temperature: 0 to 60 degrees C
• Storage Temperature: -40 to 85 degrees C
• Weight: 0.33 lb
• GTIN: 03595863910490
