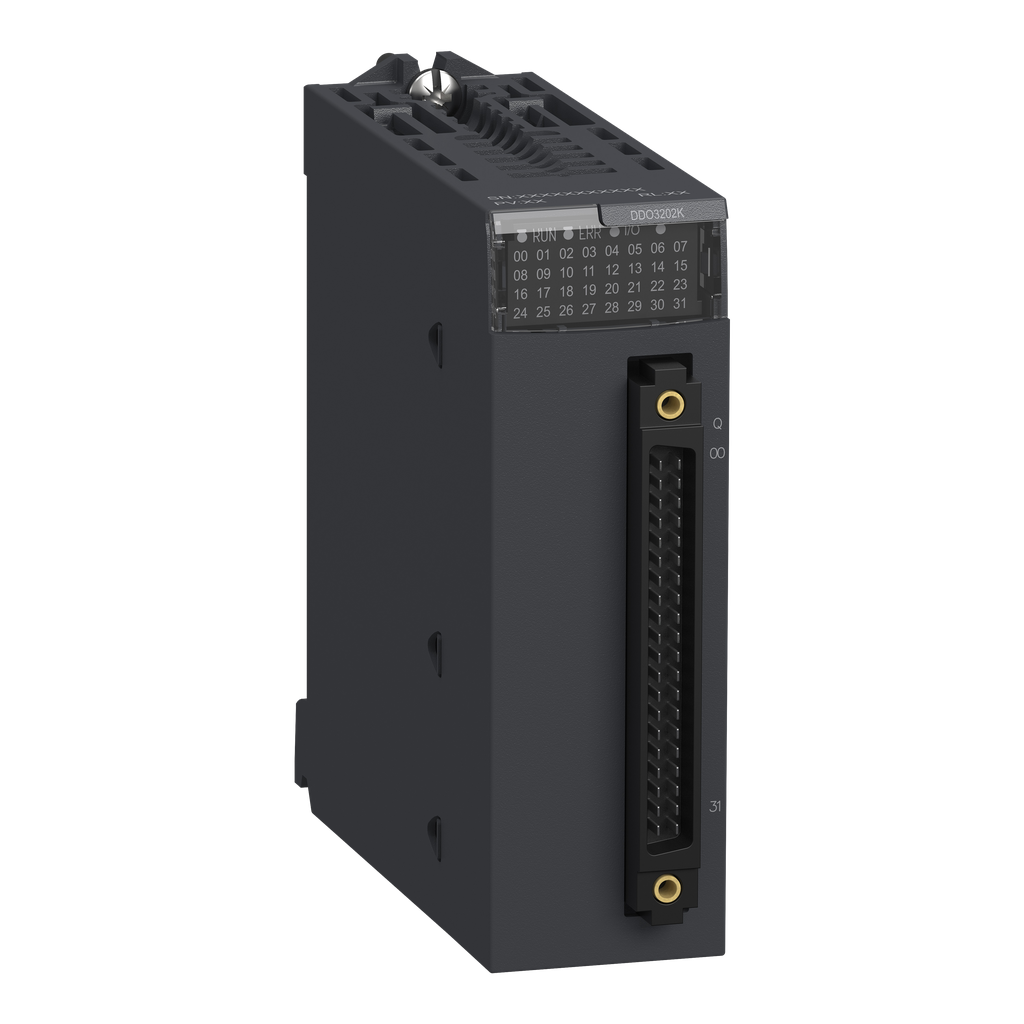

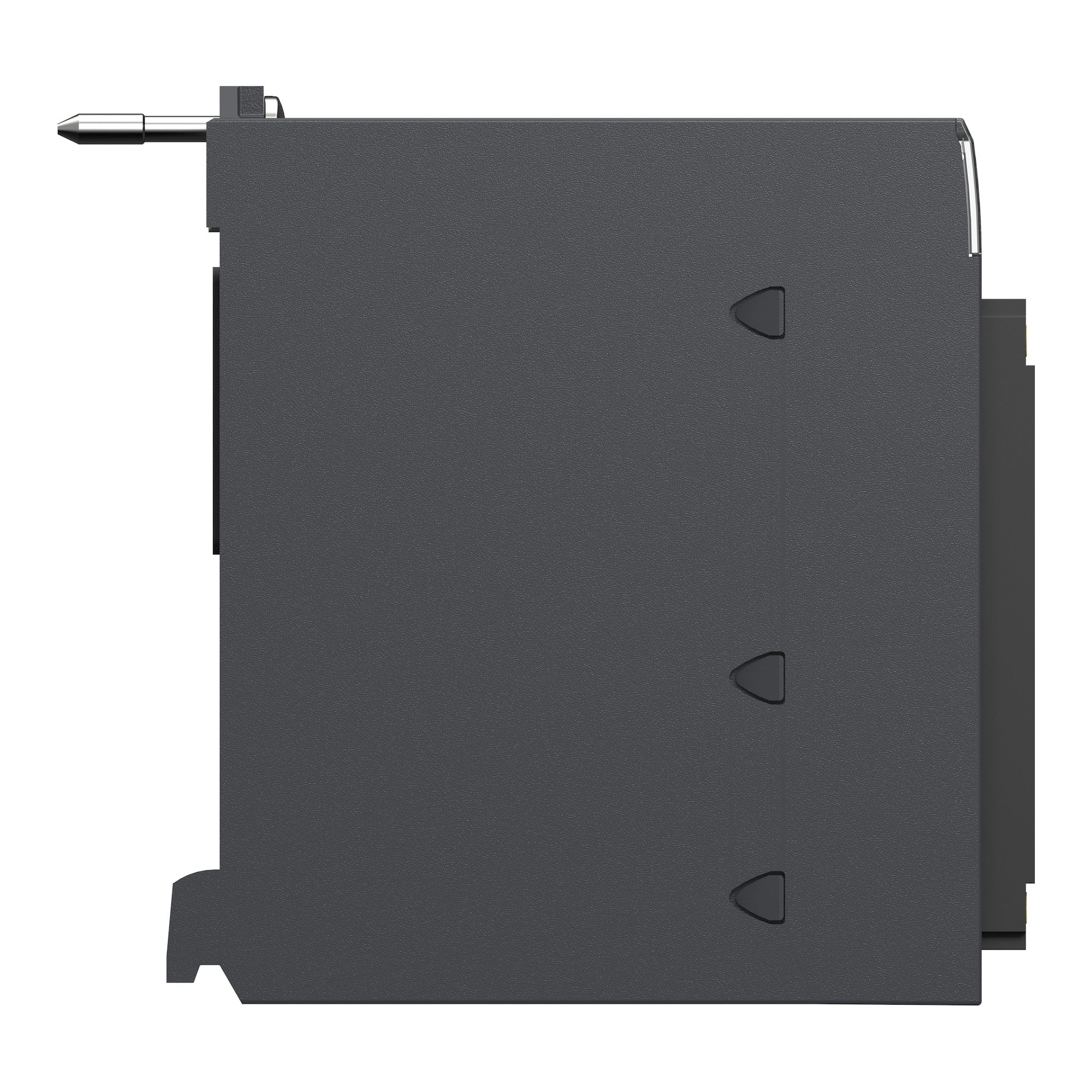

Schneider Electric BMXDDO3202K Square D 0.1 Amp 24 VDC Output DC PLC Discrete Output Module

Product Description

The Schneider Electric BMXDDO3202K is a discrete output module designed specifically for the Modicon X80 range. This module serves as a versatile component for Modicon M580 and M340 Programmable Automation Controllers (PAC). It features thirty-two outputs with positive logic and operates at an output voltage range of 19V DC to 30V DC, with a nominal output of twenty-four volts DC. This product has a maximum power dissipation of 3.6 watts and a typical current consumption of one hundred twenty-five milliamps at 3.3V DC.

• Protection against reverse polarity and overload.
• IP20 rated for moderate environmental conditions.
• MTBF of over three hundred twelve thousand hours.

Product Highlights

This module is suitable for medium to large process applications and supports a wide range of certifications, including EAC, CSA, CE, and UL.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: BMXDDO3202K

Technical Specifications

• Weight: 0.11 kg
• Output Voltage: 24 VDC
• Power Rating: 3.6 Watt
• Enclosure Rating: IP20
• Country of Origin: Indonesia
• Operating Temperature: 0 to 60 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Warranty: 18 months
