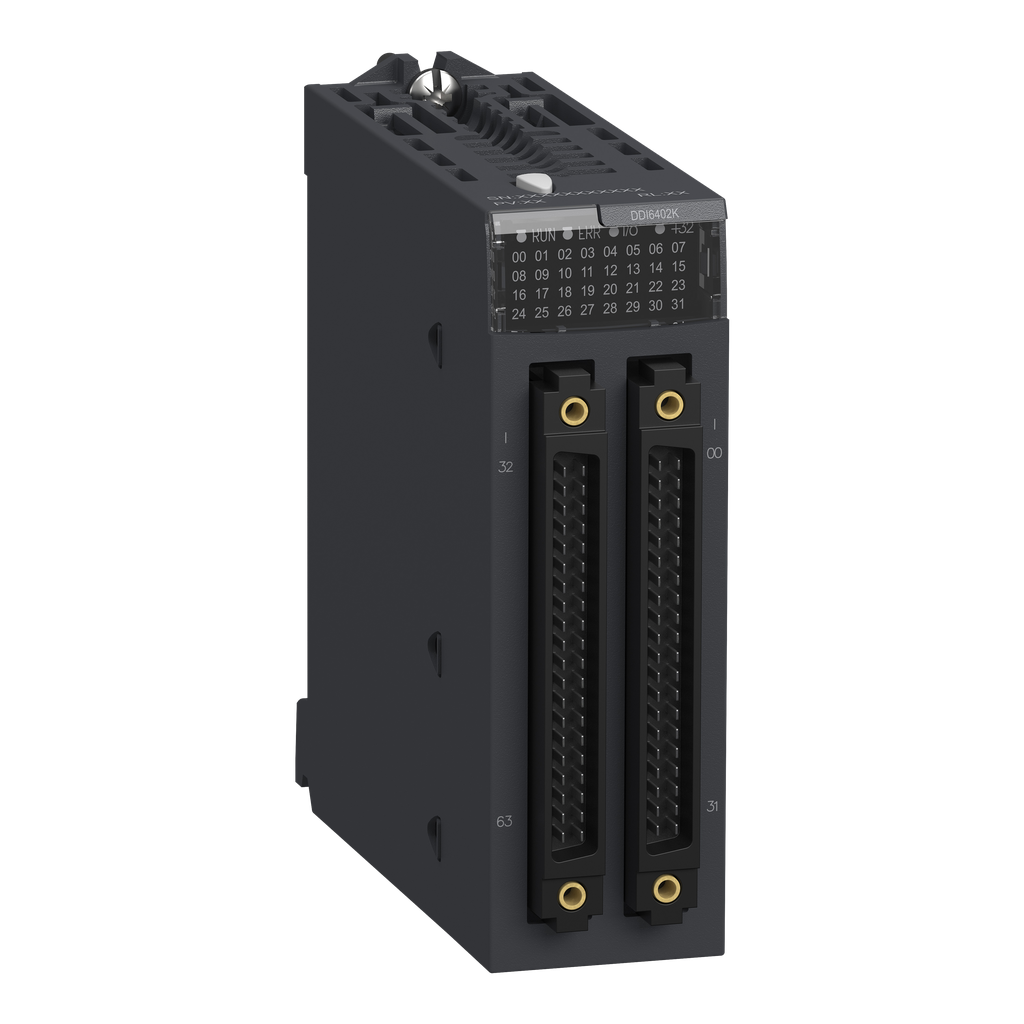

Schneider Electric BMXDDI6402K SQUARED BMXDDI6402K discrete input 64 Inputs 24V DC

Product Description

The Schneider Electric BMXDDI6402K is a discrete input module designed for Modicon M580 and M340 Programmable Automation Controllers. This module features sixty-four inputs with sink logic, operating with twenty-four volts direct current. It has a current usage of two hundred milliamps at three point three volts with a power use of four point three watts. The module isolates each channel for enhanced performance.

• Input Voltage: 24V DC
• MTBF: 362681 hours
• IP Rating: IP20

Product Highlights

This input module is well-suited for medium to large processing tasks. It comes with external fuses for groups of channels and is certified to multiple international standards such as UL and CE. The robust design helps reduce maintenance costs while providing long-term reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BMXDDI6402K

Technical Specifications

• Type: Discrete input module
• Weight: 0.145 kg
• Wattage: 4.3 Watt
• Warranty Length: 18 months
• Country of Origin: Indonesia
• Input Voltage: 24 V DC
• Certifications: EAC, RCM, UL, CSA, Merchant Navy, CE
• Operating Temperature: 0 to 60 degrees Celsius
