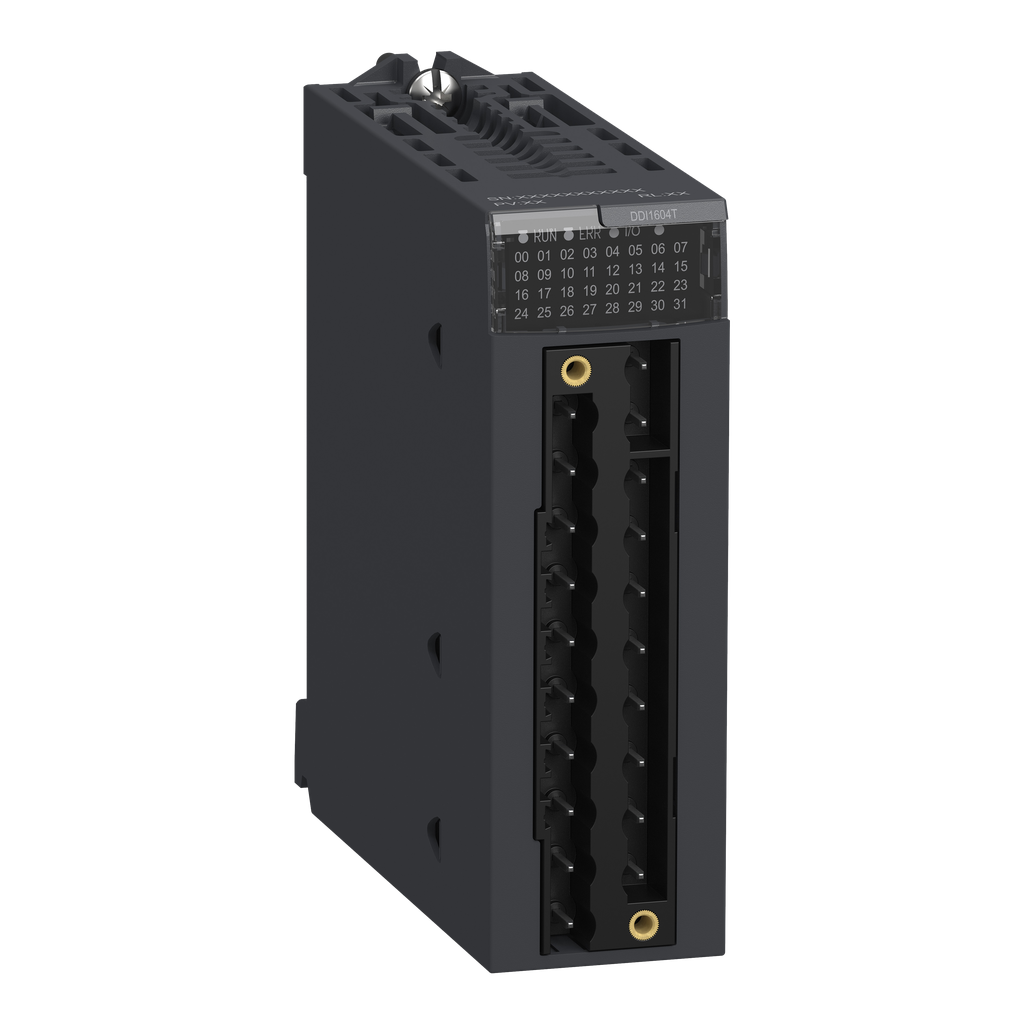

Schneider Electric BMXDDI1604T discrete input module 125 VDC 16 inputs

Product Description

Schneider Electric BMXDDI1604T is a discrete input module designed for the Modicon X80 range. This product features 16 inputs using positive logic and operates at an input voltage of 125 V DC. The current consumption is 76 mA at 3.3 V DC with a power dissipation of 8.5 W. Each channel is isolated, and the module possesses reverse polarity protection. The product is rated IP20 and is suitable for medium to large process applications, even in extended temperature ranges.

• 16 positive logic inputs
• Input voltage of 125 V DC
• IP20 rated for protection

Product Highlights

This module is compatible with 2-wire and 3-wire proximity sensors. It meets standards such as IEC 61131-2, UL 508, and CSA C22.2. The construction allows for easy maintenance and training, reducing costs related to spare parts.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: BMXDDI1604T

Technical Specifications

• Weight: 0.25 lb
• Warranty Length: 18 months
• Country of Origin: France
• Operating Temperature: -25 to 70 degrees C
• Storage Temperature: -40 to 85 degrees C
• Input Voltage: 125 V DC
• Current: 107 mA
• Certifications: EAC, RCM, UL, CSA, CE
