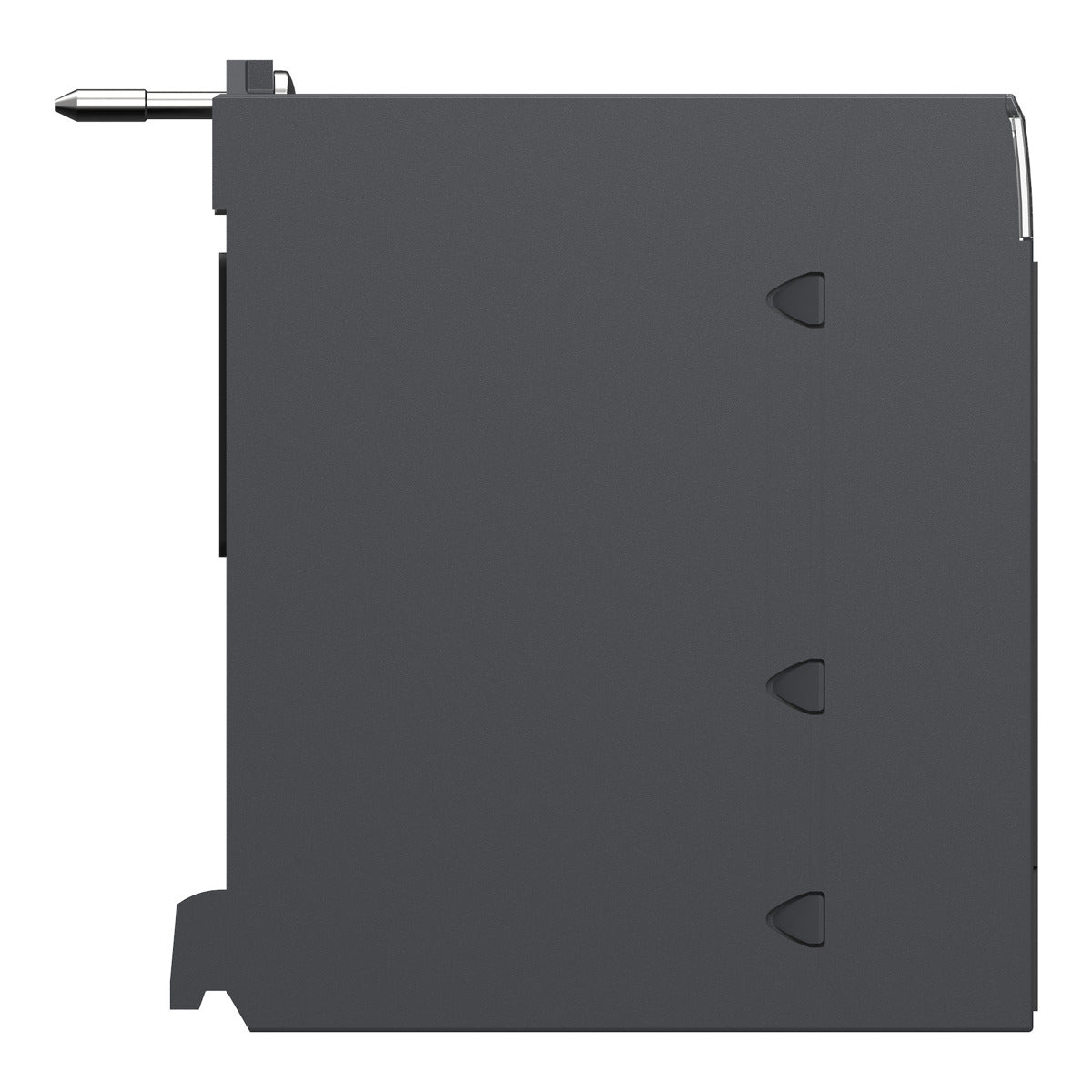

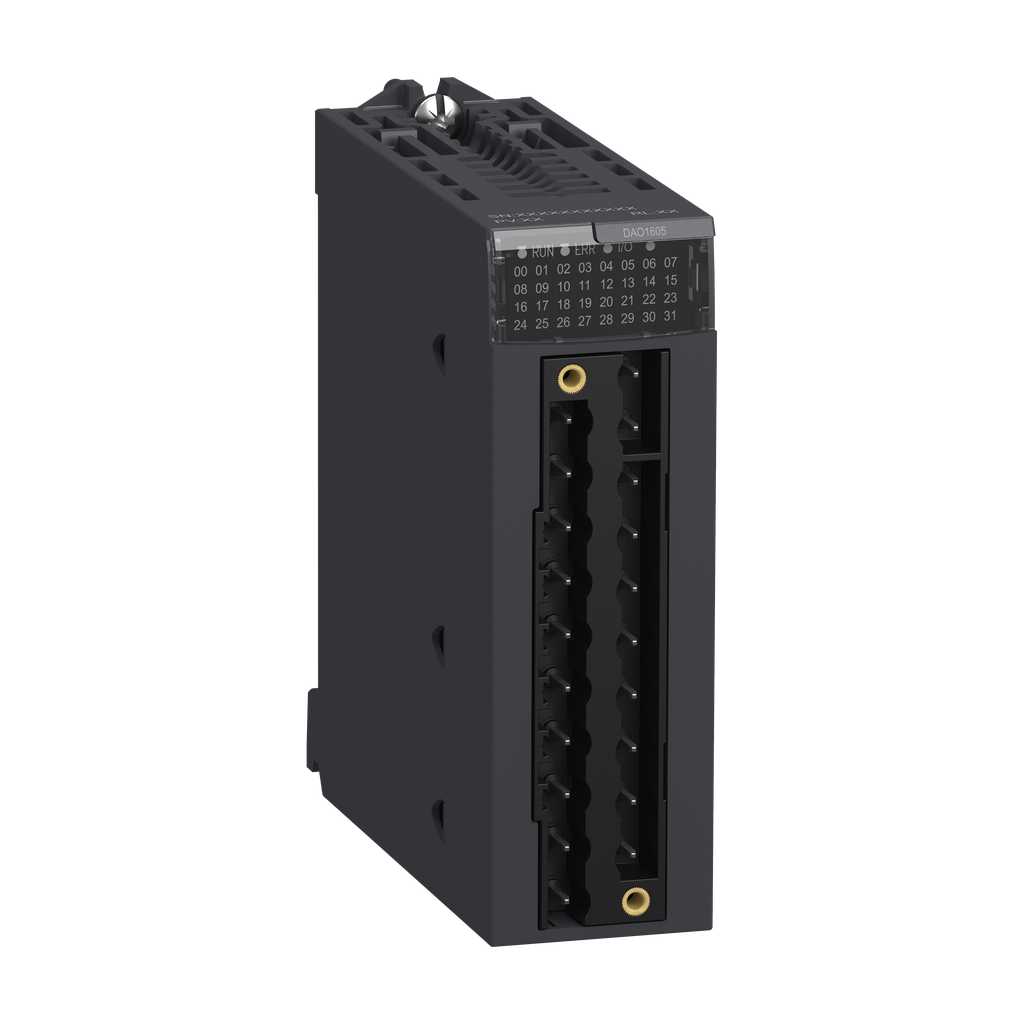

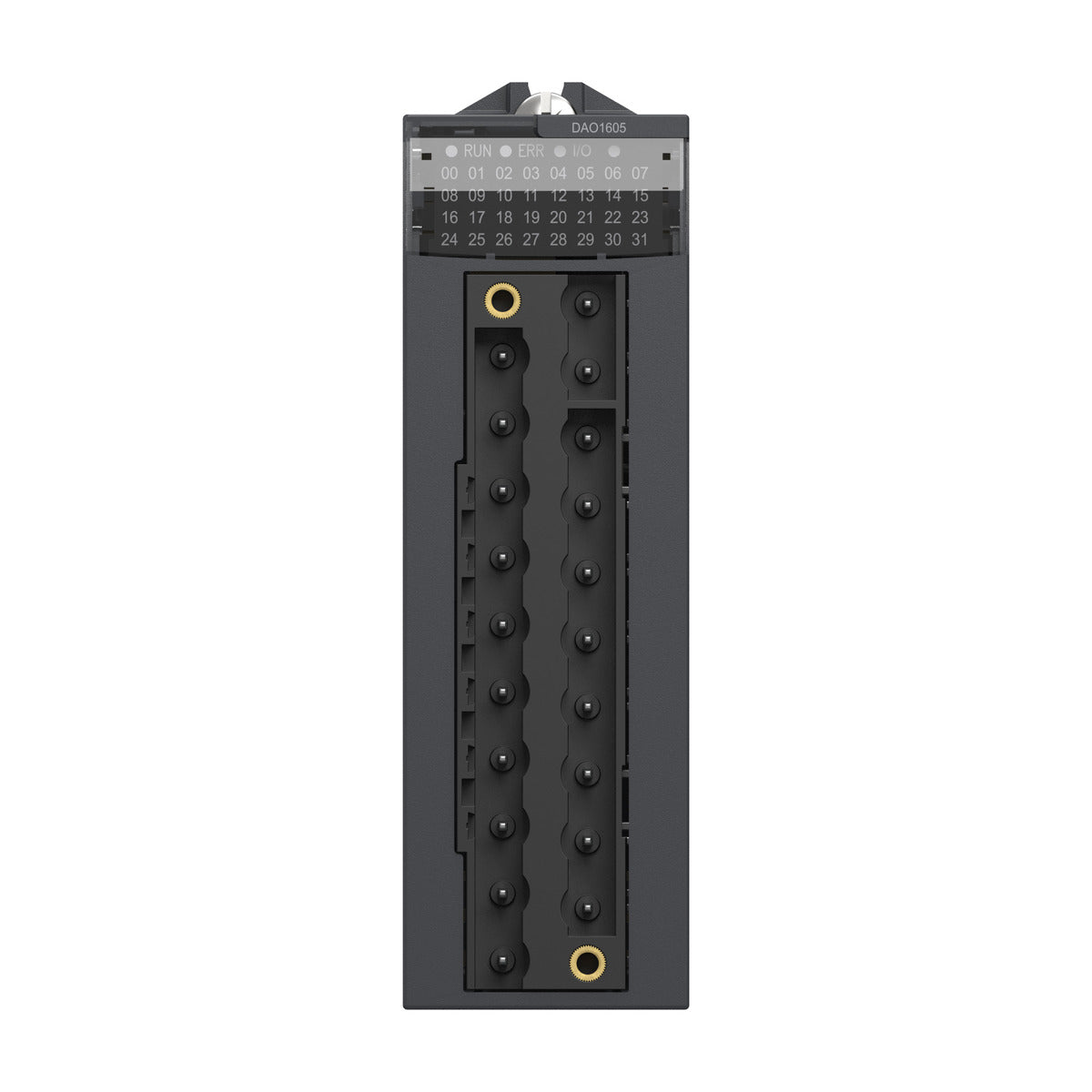

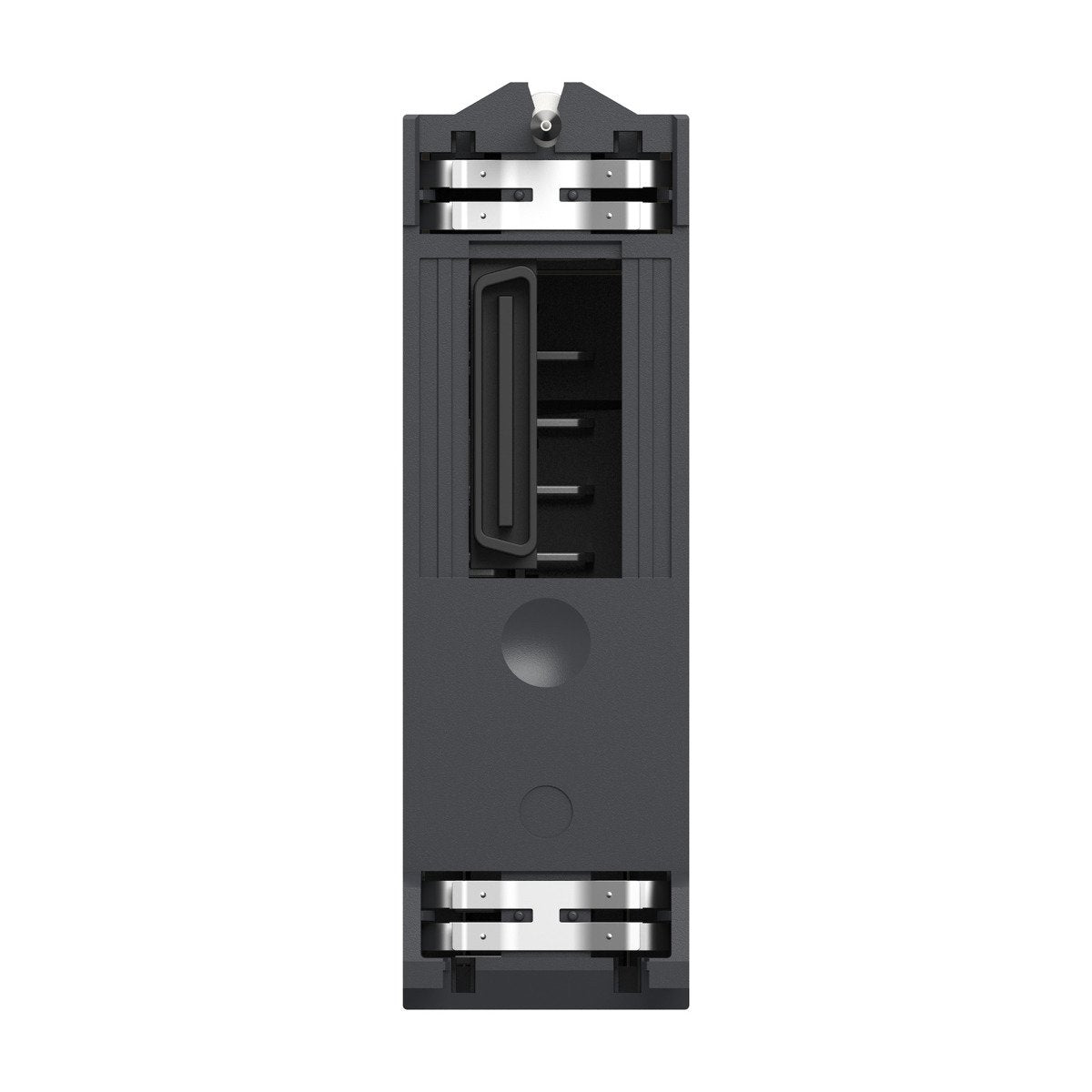

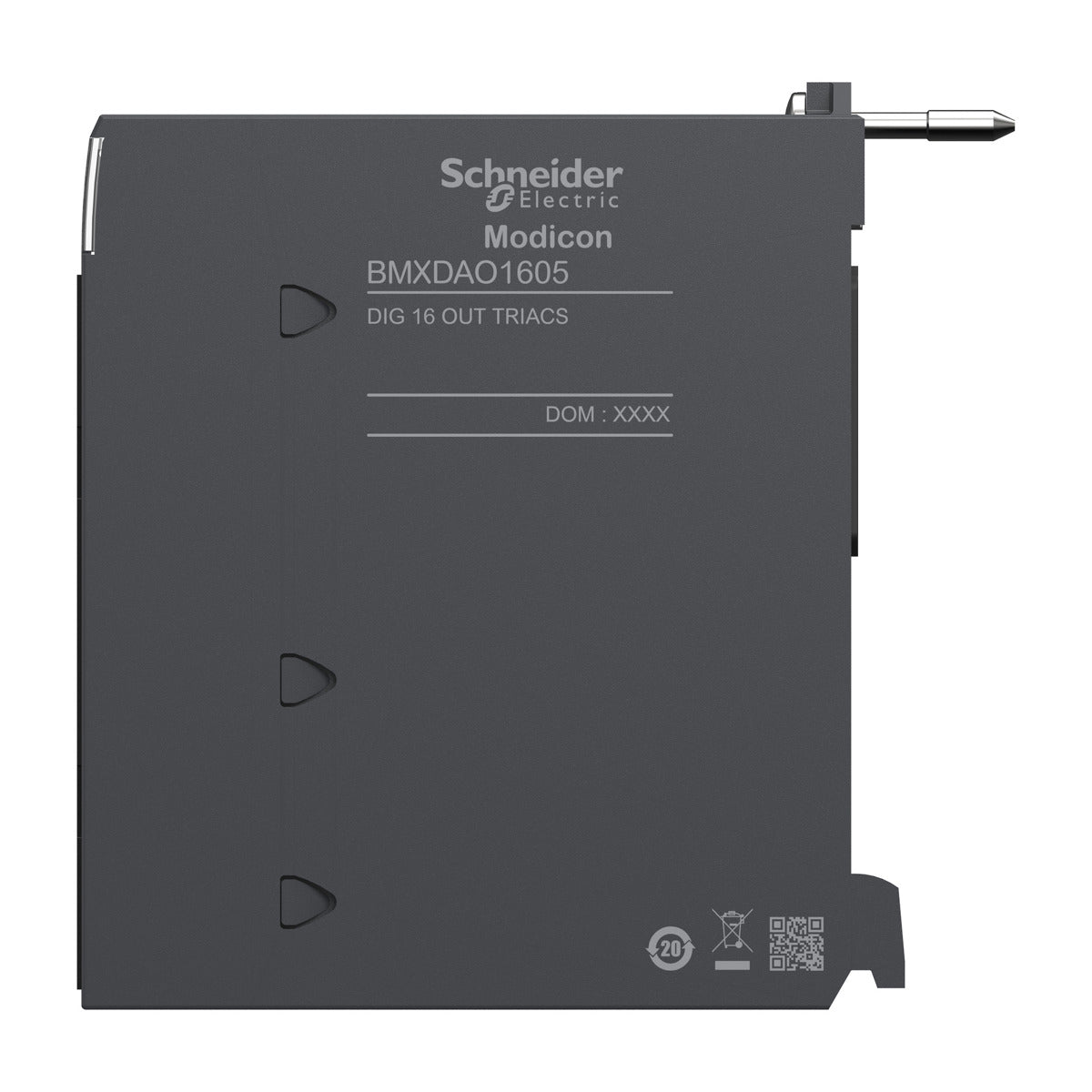

Schneider Electric BMXDAO1605 Square D Discrete Output Module 0.6 Amp 100 to 240 VAC

Product Description

This Schneider Electric BMXDAO1605 is a discrete output module suitable for Modicon M580 and M340 Programmable Automation Controllers. It has 16 triac outputs functioning at 100 to 240 VAC, ideal for automation processes. The current per channel reaches 0.6 Amp, ensuring reliable operation in demanding environments. The module is built to handle a typical current consumption of 100mA at 3.3V DC.

• Output Voltage Range: 100V to 240V AC
• IP20 Protection Rating
• Certified with EAC, UL, CSA, and CE Standards

Product Highlights

This module meets strict safety and performance standards making it suitable for medium to large scale automation applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: BMXDAO1605
• Type: Discrete Output Module
• Output Voltage: 100V to 240V AC
• Current per Channel: 0.6 Amp
• Certification: UL, CSA, RCM, CE, EAC
• Enclosure Type: IP20
• Operating Temperature: 0 to 60 Degrees Celsius
• Warranty Length: 18 months
