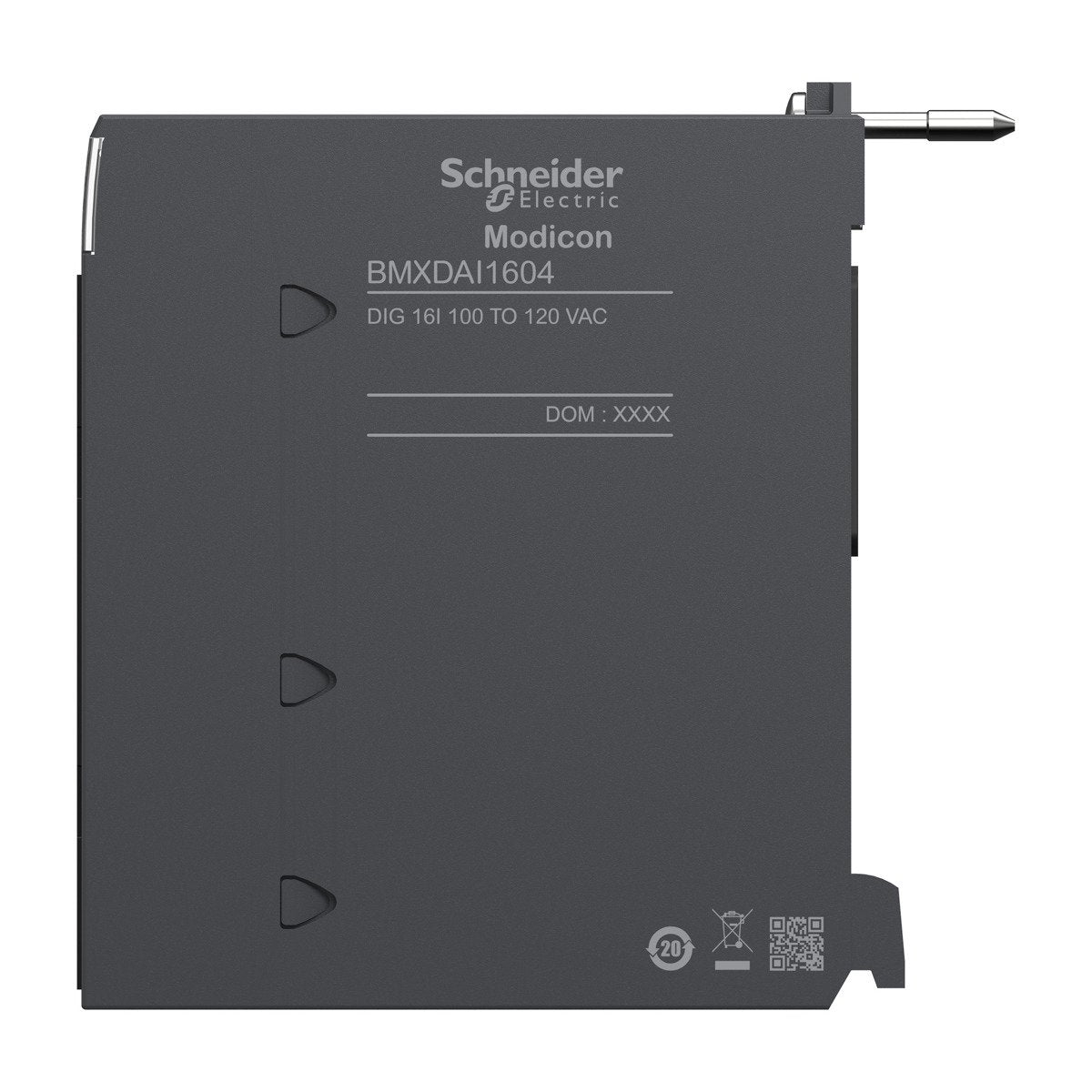

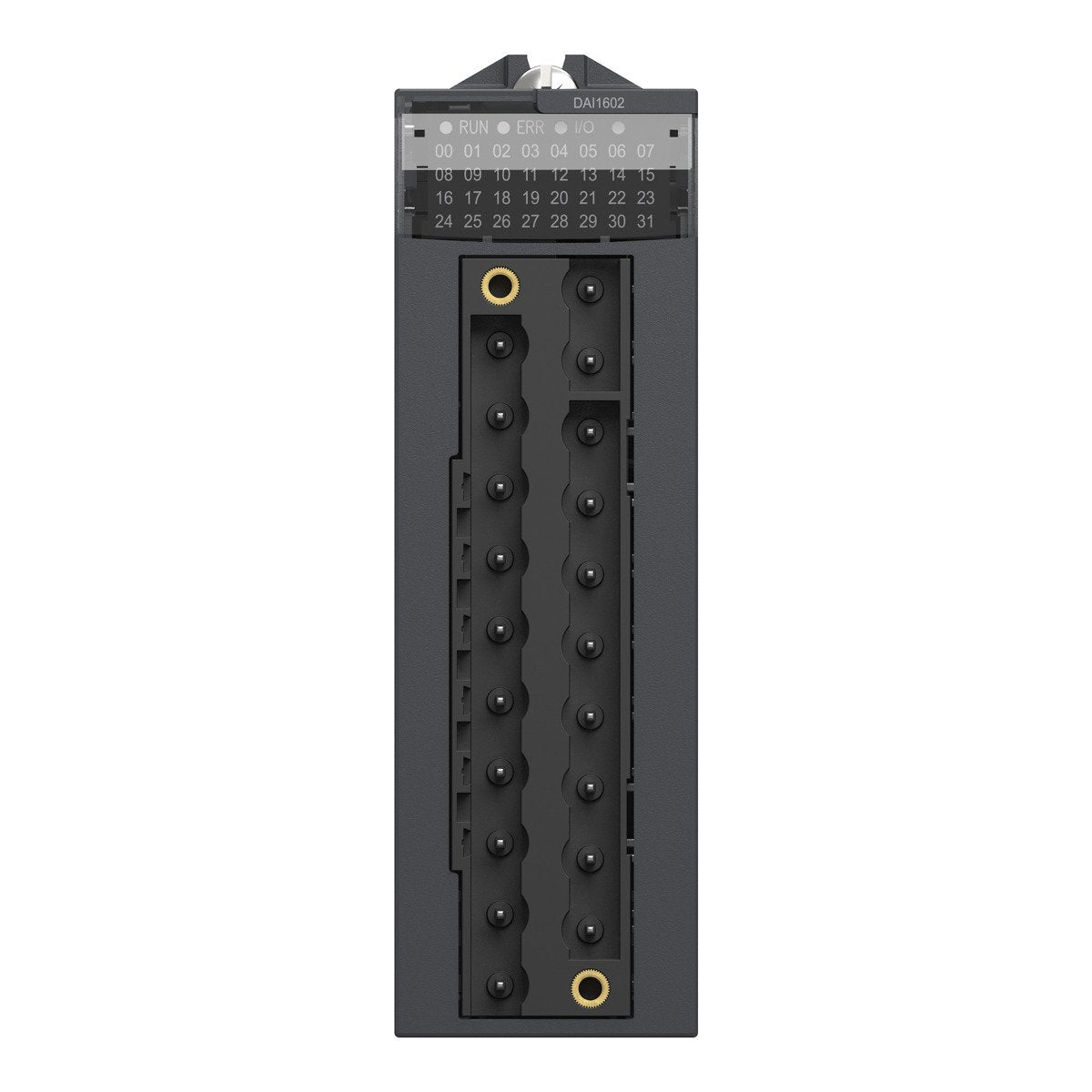

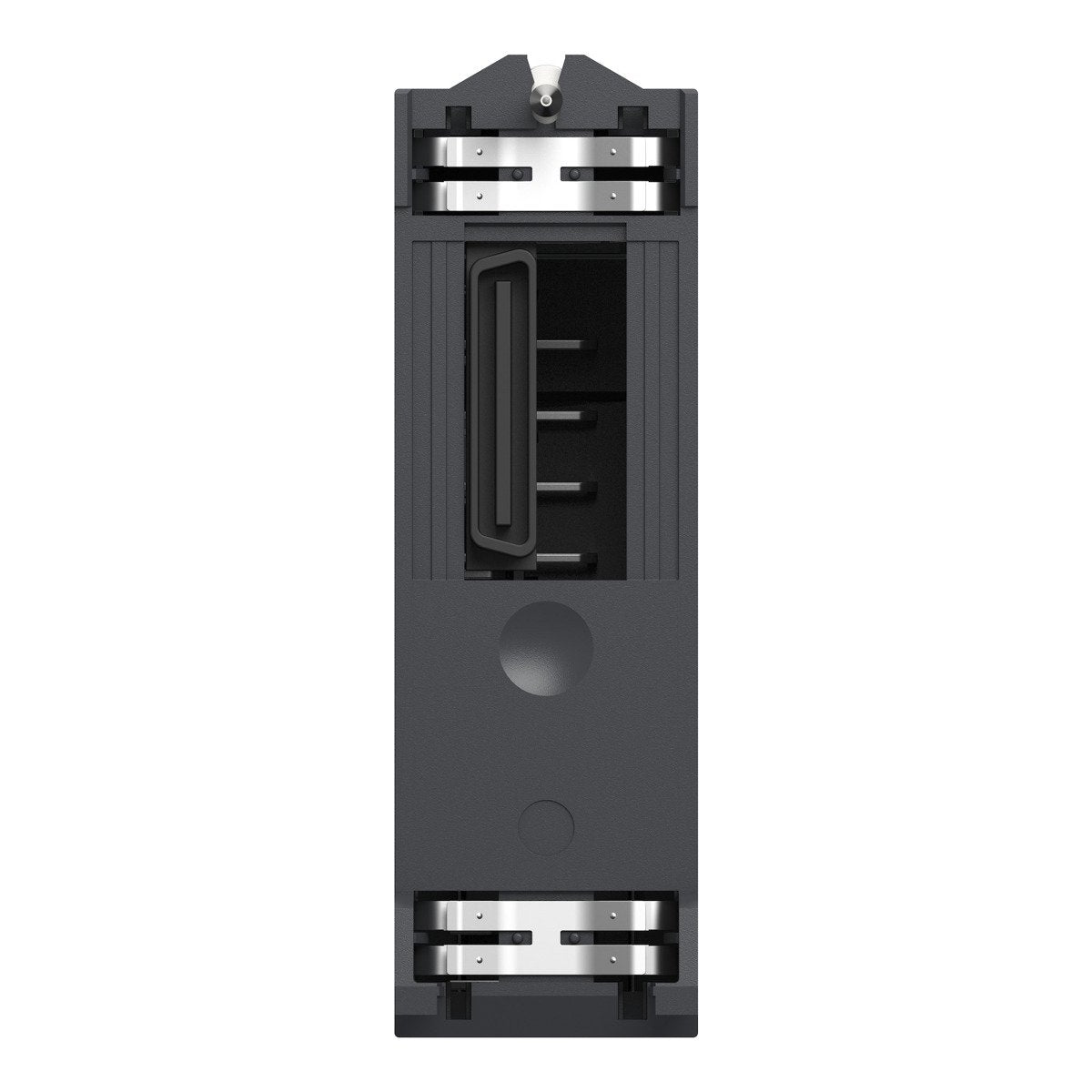

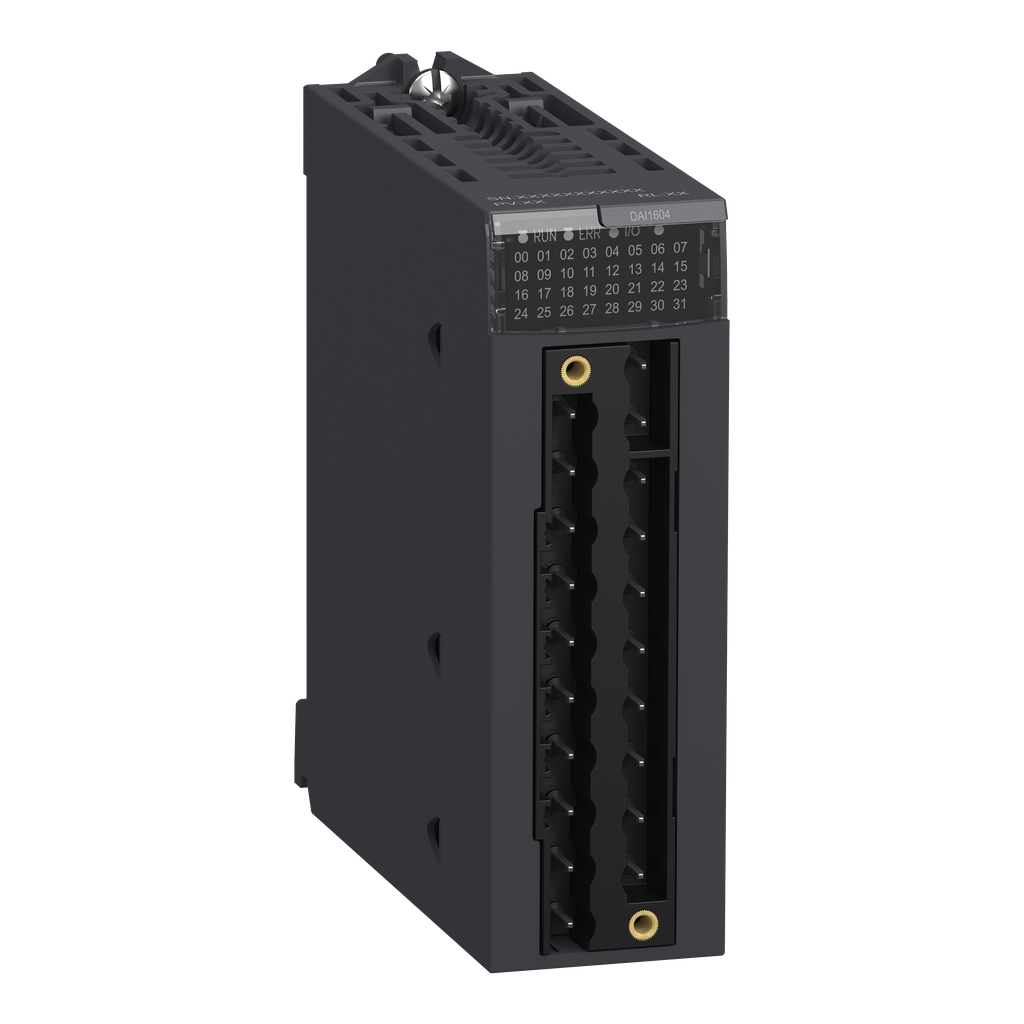

Schneider Electric BMXDAI1604 5 mA 100 to 120 VAC 3.8 W PLC AC Discrete Input Module

Product Description

Schneider Electric BMXDAI1604 is a discrete input module designed for Modicon M580 and M340 Programmable Automation Controllers. This module includes 16 capacitive inputs and operates with an input voltage range of one hundred to one hundred twenty volts alternating current. The module has a current consumption of ninety milliamperes at 3.3 volts direct current and a power dissipation of three point eight watts.

• IP20 protection rating.
• Has an external fuse of zero point five amperes fast blow type.
• Designed for medium to large process applications.

Product Highlights

This discrete input module is reliable and efficient, making it suitable for various industrial applications. It supports two-wire and three-wire proximity sensors that meet IEC 60947-5-2 standards. The product provides isolation between channels, ensuring operational safety.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BMXDAI1604
• Input Voltage: 100 to 120 V AC
• Power Dissipation: 3.8 W
• Weight: 0.115 kg
• Country of Origin: France
• Standard: IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213, UL 508
• Certifications: EAC, RCM, UL, CSA, Merchant Navy, CE
• Warranty Length: 18 months
