Schneider Electric BMXCRA31200 SQUARED remote IO drop

Product Description

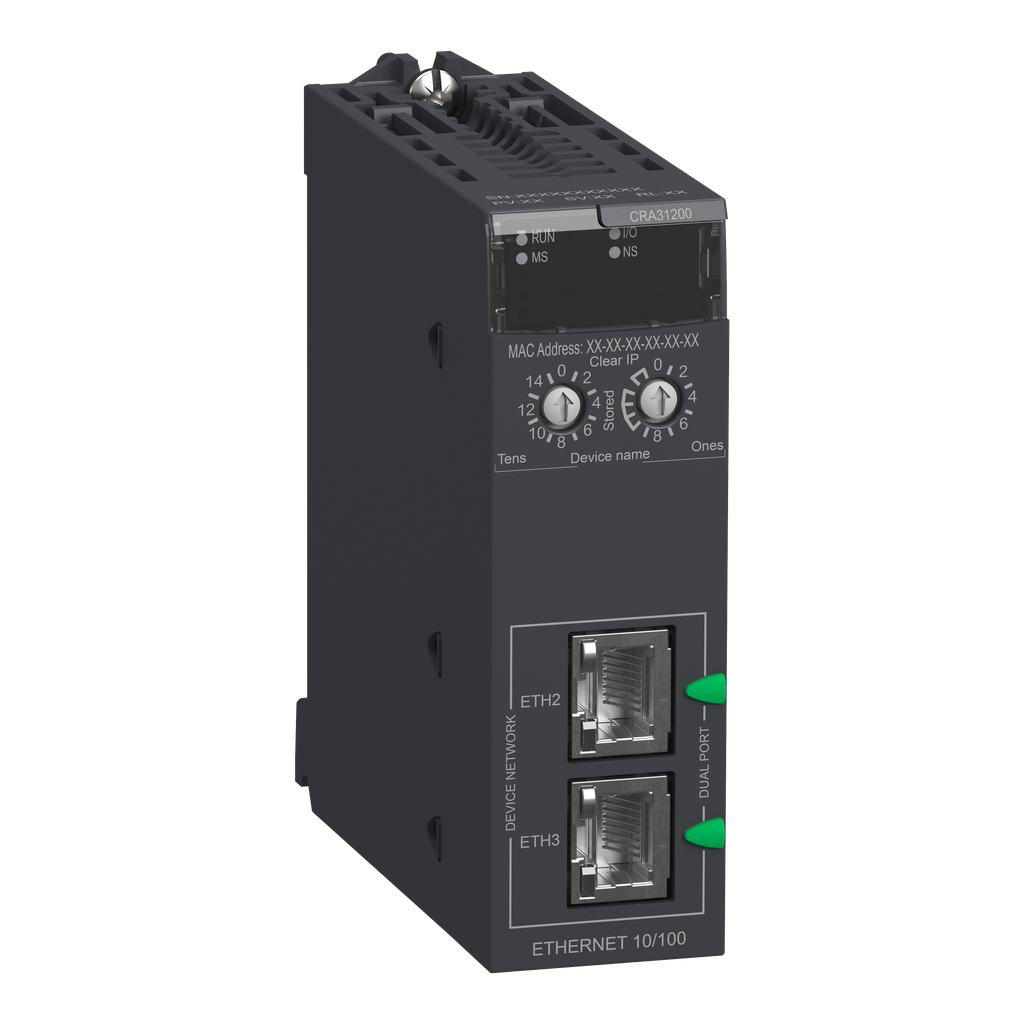

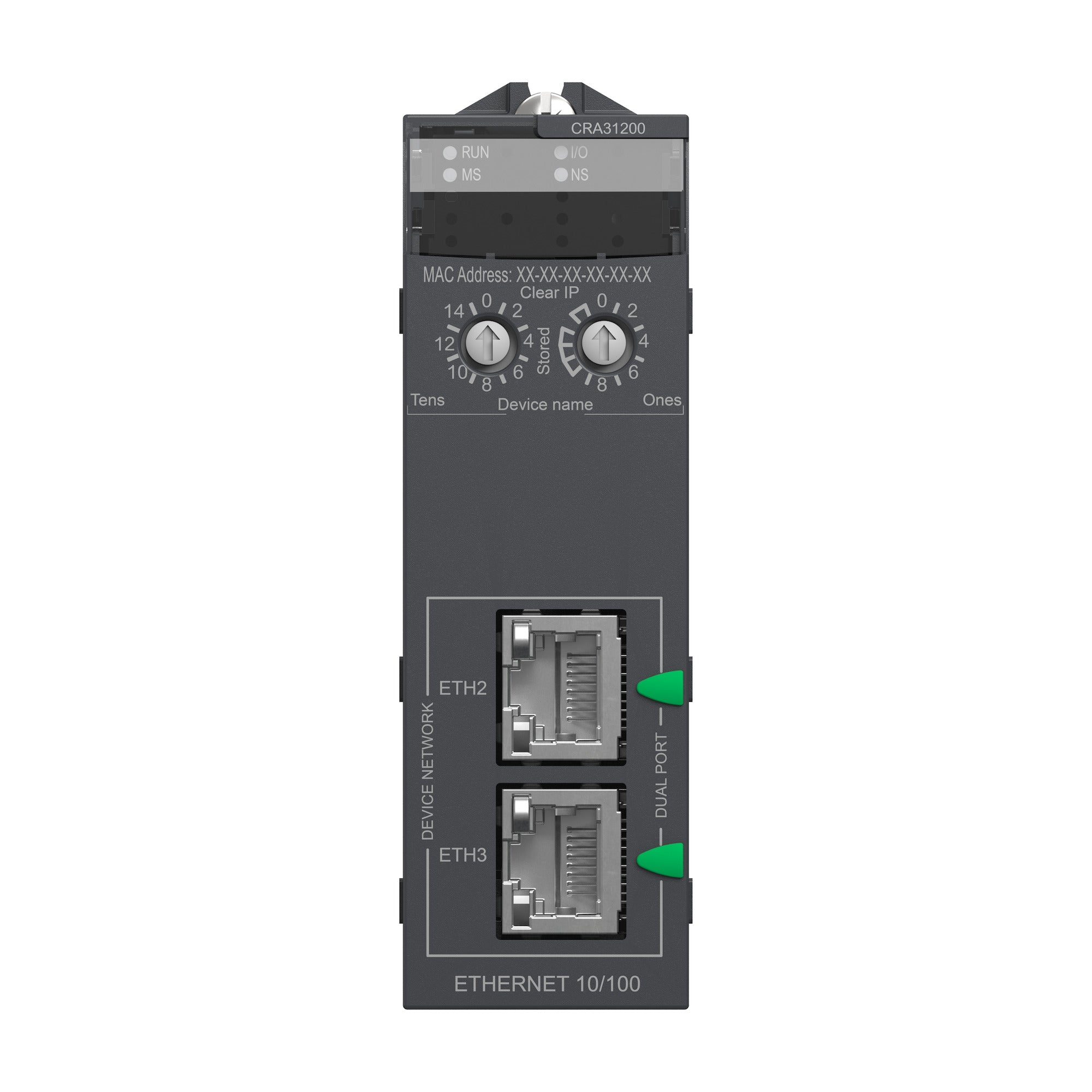

Schneider Electric BMXCRA31200 is an Ethernet Remote Input Output (RIO) drop adaptor designed for use with Modicon M580 and M340 Programmable Automation Controllers (PAC). It features two ports and utilizes EtherNet/IP for seamless device networking. This product efficiently collects input data and publishes it to the remote I/O head adaptor, ensuring that output modules are updated quickly with the latest information.

• Compatible with 0 to 128 discrete channels
• Meets EN 61131-2 standards
• IP20 rated for indoor applications

Product Highlights

This adaptor is suitable for medium to large process applications and is certified by multiple international standards including CE and UL. Its modular design allows for cost savings in maintenance and training, as the same spare parts can be used across different PAC systems.

Product Information

Standard Information

• Catalog Number: BMXCRA31200
• Brand: Schneider Electric

Technical Specifications

• Type: I/O expansion module
• Depth: 3.44 inches
• Width: 1.26 inches
• Height: 3.94 inches
• Current: 1200 mA
• Standard: CSA C22.2 No 61010-2-201, EN/IEC 61000-6-5
• Enclosure: IP20
• Country of Origin: France
