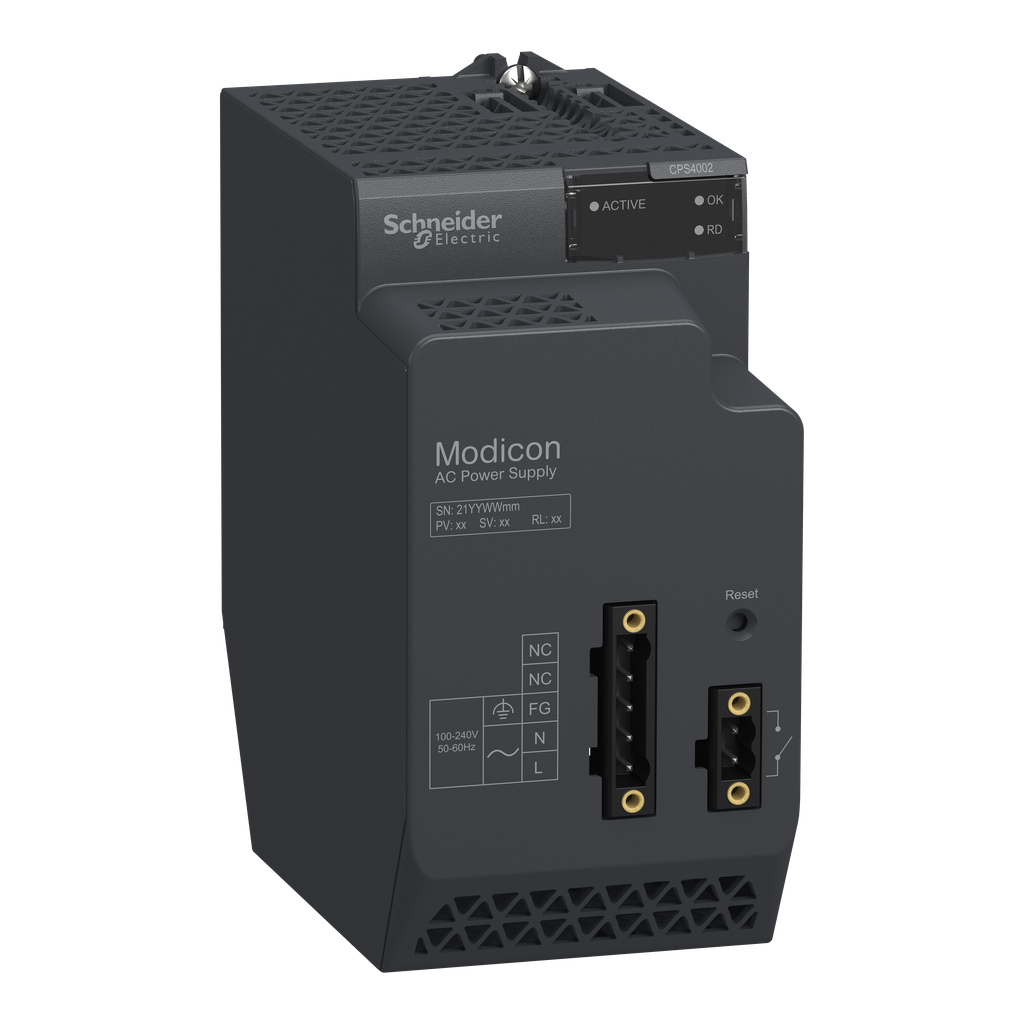

Schneider Electric BMXCPS4002 power supply module 100 to 240V AC

Product Description

Schneider Electric's BMXCPS4002 is a power supply module designed for the Modicon X80 range, suitable for Modicon M580 and M340 Programmable Automation Controllers. This module supports a primary voltage input range of one hundred to two hundred forty volts AC. It provides secondary power of forty watts at twenty-four volts DC, with a secondary current of five point five amperes at three point three volts DC, and a maximum power dissipation of eight point five watts. It includes a two-pin connector for alarm relay and a five-pin connector for line supply, ensuring reliable connections.

• Advanced diagnostics include temperature sensing and uptime monitoring.
• IP20 rating for protection against access to hazardous parts.
• Certified by CE, RCM, and UL, compliant with multiple standards.

Product Highlights

This power supply module is designed for medium to large process applications, enhancing reliability and reducing maintenance costs with a common platform for modules.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: BMXCPS4002
• Primary Voltage: 100 to 240 V
• Input Current: 0.52 A at 240 V; 1.04 A at 115 V
• Power Supply: 8.5 W
• Weight: 0.51 kg
• Certification: CE, RCM, CSA, UL
• Standards: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
• Country of Origin: Indonesia
